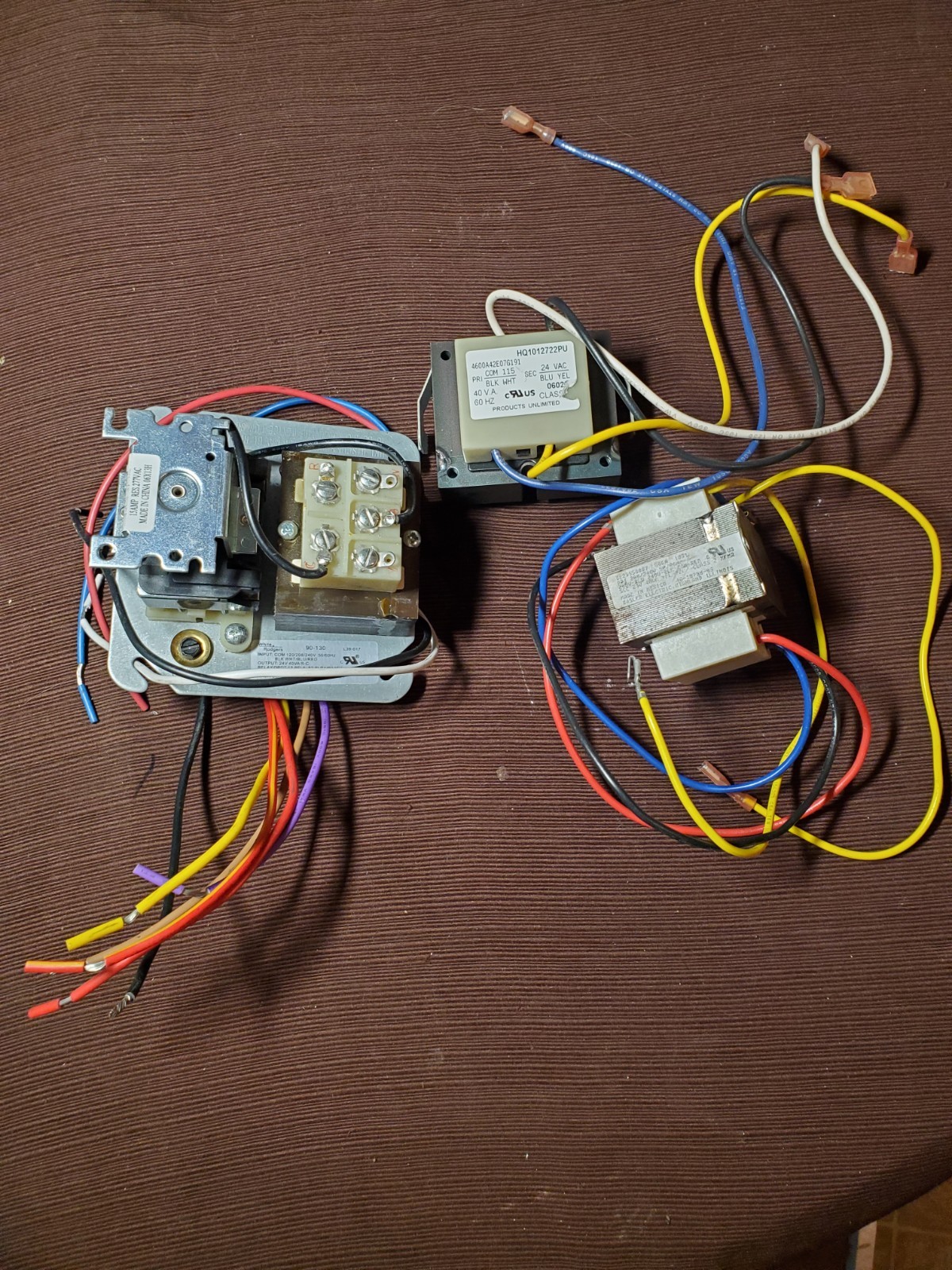

Lot of 3 HVAC Control Transformers For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Lot of 3 HVAC Control Transformers:
$40.00

FREE&FAST 🚚GET ALL 3🔥👍
1 -Products Unlimited (Tyco) HVAC control transformer (part number 4600A42E07G191, also cross-referenced as HQ1012722PU or 1012722) commonly used in heating and cooling systems like Heil, Tempstar, and ICP. [1, 2, 3]Specifications

Brand/Manufacturer: Products Unlimited (Tyco)
Part Number / Model: 4600A42E07G191 / HQ1012722PU
Primary (Input): 115 VAC (Black and White wires) at 60 Hz, 40 VA
Secondary (Output): 24 VAC (Blue and Yellow wires)
Capacity: 40 VA (Volt-Amperes)
Class: Class 2 control transformer
1 - Basler Electric Class 2 control transformer (Model BE25558007), commonly used in HVAC systems (such as Rheem furnaces and heat pumps) to step down line voltage to low voltage.
Specifications on the Label:
• Manufacturer: Basler Electric (Highland, Illinois; Made in Mexico)
• Part Number: BE25558007 (OEM part number 46-18788-05)
• Primary (Input) Voltage: 208/240 V (50/60 Hz)
• 208V connection: Blue wire (208V-BLU)
• 240V connection: Black wire (240V-BLK) with common red wire (COM-RED)
• Secondary (Output) Voltage: 24 V, 40 VA rating (Yellow wires: 24V YEL-YEL)
• Type: Class 2 Transformer (CLASS 2 XFMR)
1 - White-Rodgers 90-130 DPDT Fan Control Center which integrates a 120 VAC primary to 24 VAC transformer with a double-pole, double-throw (DPDT) relay.
Key Features
• Function: Combines a 24V step-down transformer and a low-voltage relay to control fan motors or auxiliary heating/cooling circuits.
• Voltage: 120 VAC primary input and 24 VAC secondary output.
• Relay Type: DPDT
• Mounting: Designed to mount directly to a standard 4-inch electrical junction box.
