Large Flange Aluminum Pop Rivets All Dome Head Blind Every Size Available:
$18.21

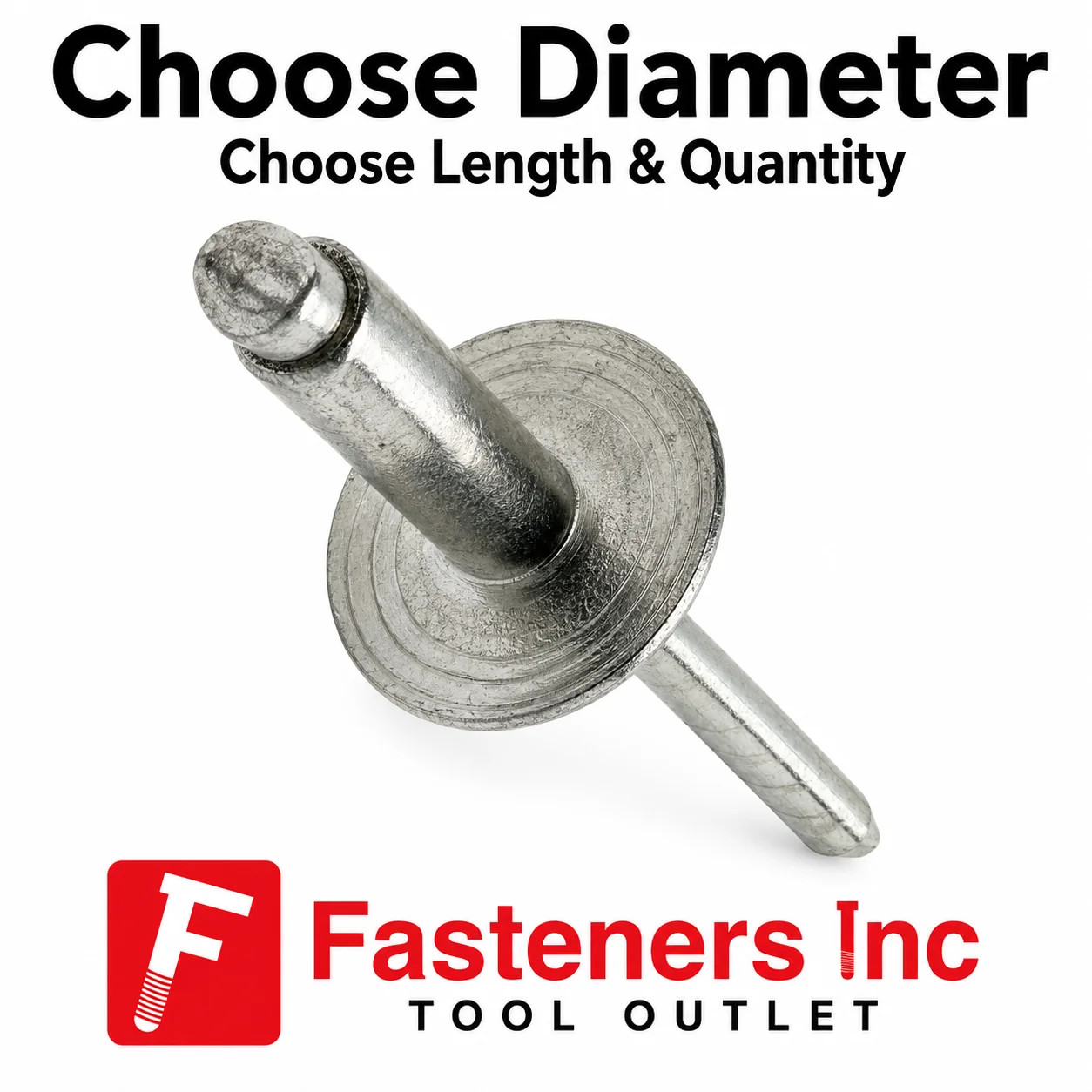

Large Flange Aluminum Body Aluminum Mandrel Dome Head Blind pop RivetOpen end blind rivets are tubular rivets with a mandrel through the center. The entire rivet assembly is inserted into a hole drilled through the parts to be joined, and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and snaps off the mandrel.Detailed Product Information:Select Desired Size in Drop Down Menu For Full 2D Dimensional Drawing ImageGeneral InformationTrade Number | Rivet Size | Drill Bit Size | Grip Range
4-2 | 1/8" x 1/8" | #30 | .063" - .125"
4-3 | 1/8" x 3/16" | #30 | .126" - .187"
4-4 | 1/8" x 1/4" | #30 | .188" - .250"
4-5 | 1/8" x 5/16" | #30 | .251" - .312"
4-6 | 1/8" x 3/8" | #30 | .313" - .375"
4-8 | 1/8" x 1/2" | #30 | .376" - .500"
5-2 | 5/32" x 1/8" | #20 | .020" - .125"
5-3 | 5/32" x 3/16" | #20 | .126" - .187"
5-4 | 5/32" x 1/4" | #20 | .188" - .250"
5-6 | 5/32" x 3/8" | #20 | .251" - .375"
5-8 | 5/32" x 1/2" | #20 | .376" - .500"
5-10 | 5/32" x 5/8" | #20 | .501" - .625"
6-2 | 3/16" x 1/8" | #11 | .020" - .125"
6-3 | 3/16" x 3/16" | #11 | .126" - .187"
6-4 | 3/16" x 1/4" | #11 | .188" - .250"
6-6 | 3/16" x 3/8" | #11 | .251" - .375"
6-8 | 3/16" x 1/2" | #11 | .376" - .500"
6-10 | 3/16" x 5/8" | #11 | .501" - .625"
6-12 | 3/16" x 3/4" | #11 | .626" - .750"
6-16 | 3/16" x 1" | #11 | .876" - 1.00"Key Notes:Large Flange rivets offer a wider bearing surface and are preferred where brittle or soft materials are being assembled to rigid surfaces.Made of Aluminum Alloy 5050, 5052, or equivalent. Aluminum alloys have excellent corrosion resistance.The aluminum mandrel is pulled into or against the rivet body, breaking at or near the junction of the mandrel shank and its upset end. Aluminum/Aluminum rivets have the lowest tensile and shear values of all break mandrel rivets.An aluminum blind fastener which has a self-contained mechanical feature (a mandrel) which permits the formation of an upset on the blind end of the rivet and expansion of the rivet shank during the setting to join the component parts of an assembly.Fasteners Inc. branded open end blind pop rivets meet SAE J-1200 Standards which establishes the dimensional, mechanical, and performance requirements of inch and metric break mandrel blind rivets suitable for use in joining the component parts of an assembly.
