KOHLER ENGINE CONFIDANT EZT740:
$2000.00

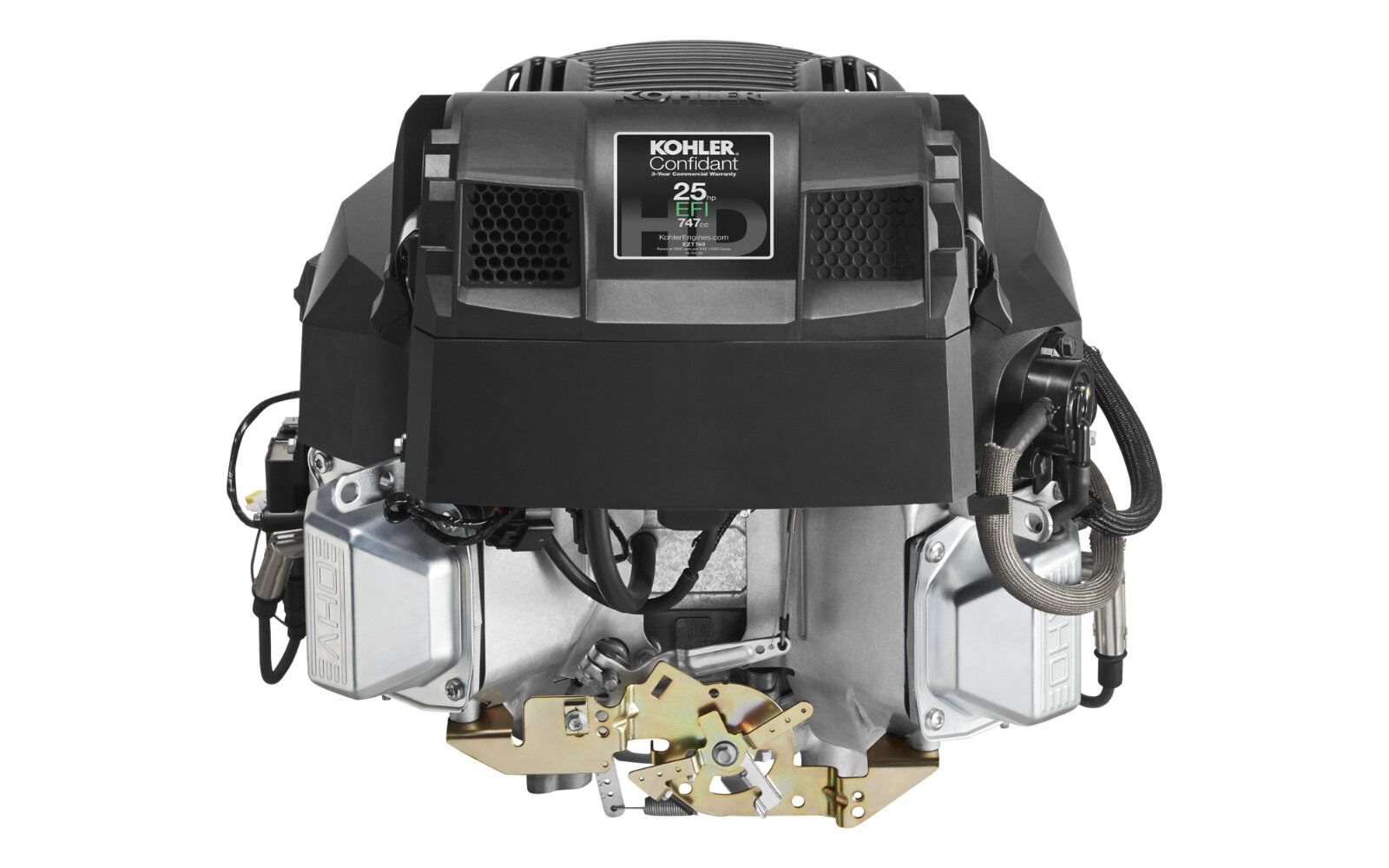

TheKohler EZT740is a 747 cc, (45.6 cu·in) V-twin air-cooled four-stroke internal combustion gasoline engine from the Confidant EFI series, manufactured by Kohler Co.
The Kohler EZT740 engine has an OHV (overhead valve) design, an aluminum block with cast iron cylinder liners, vertical PTO-shaft, pressurized lubrication system. This engine is equipped with a Electronic Fuel Injection (EFI) system and electronic ignition system.
Engine Specifications
ModelConfidant EFI EZT740
Type4-stroke, OHV, V-twin
Displacement747 cm3(45.6 cu-in)
Max. horsepower25.3 PS (18.6 KW; 25.0 HP) at 3,600 rpm
Max. torque55.5 Nm (5.7 kg·m; 41.0 ft·lb) at 2,600 rpm
Fuel systemElectronic Fuel Injection (EFI)
Cooling systemForced-air
Ignition systemElectronic ignition system
Lubricating systemPressurized lubrication
Starting systemElectric or recoil starter
Fuel usedUnleaded gasoline (octane number 86 or higher)
Dimensions (L x W X H)478x479x431 mm (18.8×18.9×17.0 in)
Dry weight41.3 kg (91.0 lbs)
