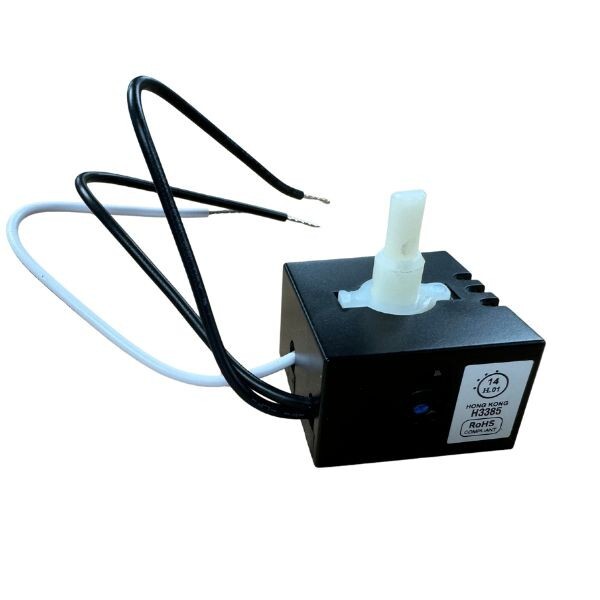

KB ELECTRONICS KBMS-13BV / KBMS13BVNSI (BRAND NEW) 3.0 Amps @ 120 Vac, For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

KB ELECTRONICS KBMS-13BV / KBMS13BVNSI (BRAND NEW) 3.0 Amps @ 120 Vac, :
$20.00

Series:KB Electronics Triac Controls, KBMC SeriesAC Line Voltage:120 VACMax Current @ 40 Deg. Celsius:3.0 AEnclosure:Panel MountApprovals:cUL, ULNet Weight:0.8 lbsProduct Summary:3.0 Amps @ 120 Vac, Solid State AC Motor Control
The KBMS solid state controls provide infinitely variable speed control of Shaded Pole, PSC, and AC/DC motors. Solid state variable speed controls are designed to replace obsolete tapped windings, chokes, rheostats, and other methods which are currently being used to obtain speed variations. The controls are available with an internal on/off line switch and third lead which can be used to control auxiliary circuits such as relays and indicator lamps.

---

---

---

KB Electronics KBMD-240D (9370D) Multi-Drive Variable Speed DC Motor Control New

$152.49

---

KB Electronics KBSI-240D Signal Isolator Penta Power USED

$48.33

---

KBMS-13BV KB Electronics Panel Mount Solid State Variable Speed AC Motor

$26.94

---
