Johnson Controls PENN A99BB-200C PTC Temperature Sensor 2m Cable NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Johnson Controls PENN A99BB-200C PTC Temperature Sensor 2m Cable NEW:
$35.00

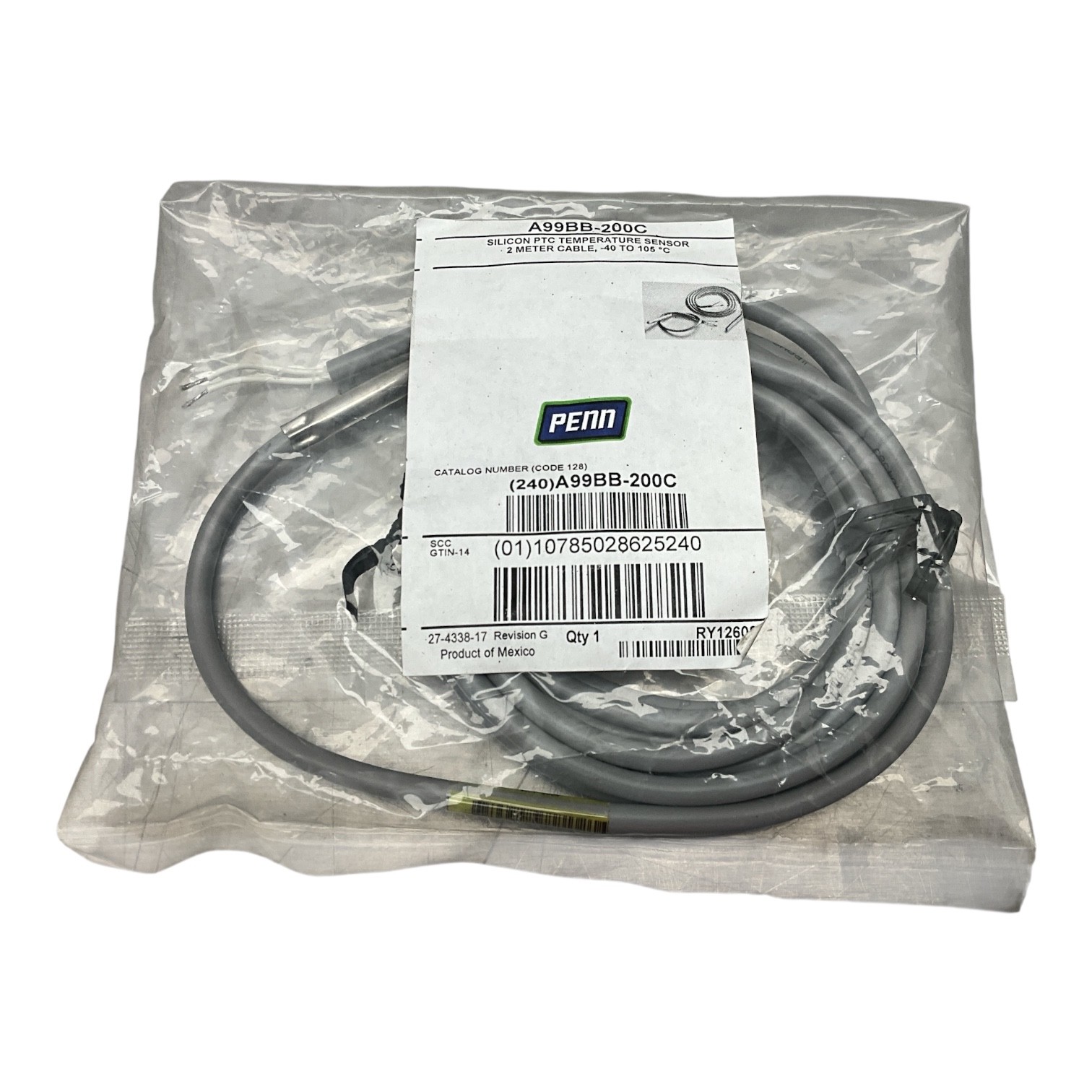

Johnson Controls PENN A99BB-200C PTC Temperature Sensor 2m Cable NEW
Description:

New Johnson Controls PENN A99BB-200C silicon PTC temperature sensor. This replacement sensor features a stainless-steel probe and a 6.5 ft (2-meter) PVC cable with two wire leads.

Designed for compatible PENN and Johnson Controls electronic temperature-control systems used in HVAC and refrigeration applications.

Specifications:

• Brand: PENN / Johnson Controls
• Model: A99BB-200C
• Catalog number: (240)A99BB-200C
• Product type: Silicon PTC temperature sensor
• Sensing range: −40°F to 212°F (−40°C to 100°C)
• Cable length: 6.5 ft / 2 meters
• Cable type: PVC
• Wire size: 22 AWG
• Probe material: Stainless steel
• Reference resistance: 1,035 ohms at 77°F (25°C)
• Accuracy: ±0.9°F / ±0.5°C from 5°F to 167°F
• Quantity: 1 sensor

The package label indicates a storage range of−40°C to 105°C. Official Johnson Controls specifications give the sensing/operating range as−40°C to 100°C.Johnson Controls technical specifications

Where It Is Used

Commonly used for temperature measurement and control in:

• Commercial refrigeration equipment
• Walk-in coolers and freezers
• Refrigerated display and meat cases
• HVAC temperature-control systems
• Boilers and heating equipment
• Chillers and cooling systems
• Kegerators and cold-storage equipment
• Compatible PENN/Johnson Controls electronic temperature controllers

It is commonly sold as a replacement probe for compatibleA419-series temperature controls. Buyers should verify the model number and electrical specifications before ordering. The probe is splash-resistant but should not be submerged directly without a suitable immersion well.SupplyHouse product information

---

---

---
