Johnson Controls Metasys M4-XPM09090-0 BRAND NEW IN THE SEALED BOX For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Johnson Controls Metasys M4-XPM09090-0 BRAND NEW IN THE SEALED BOX:
$430.00

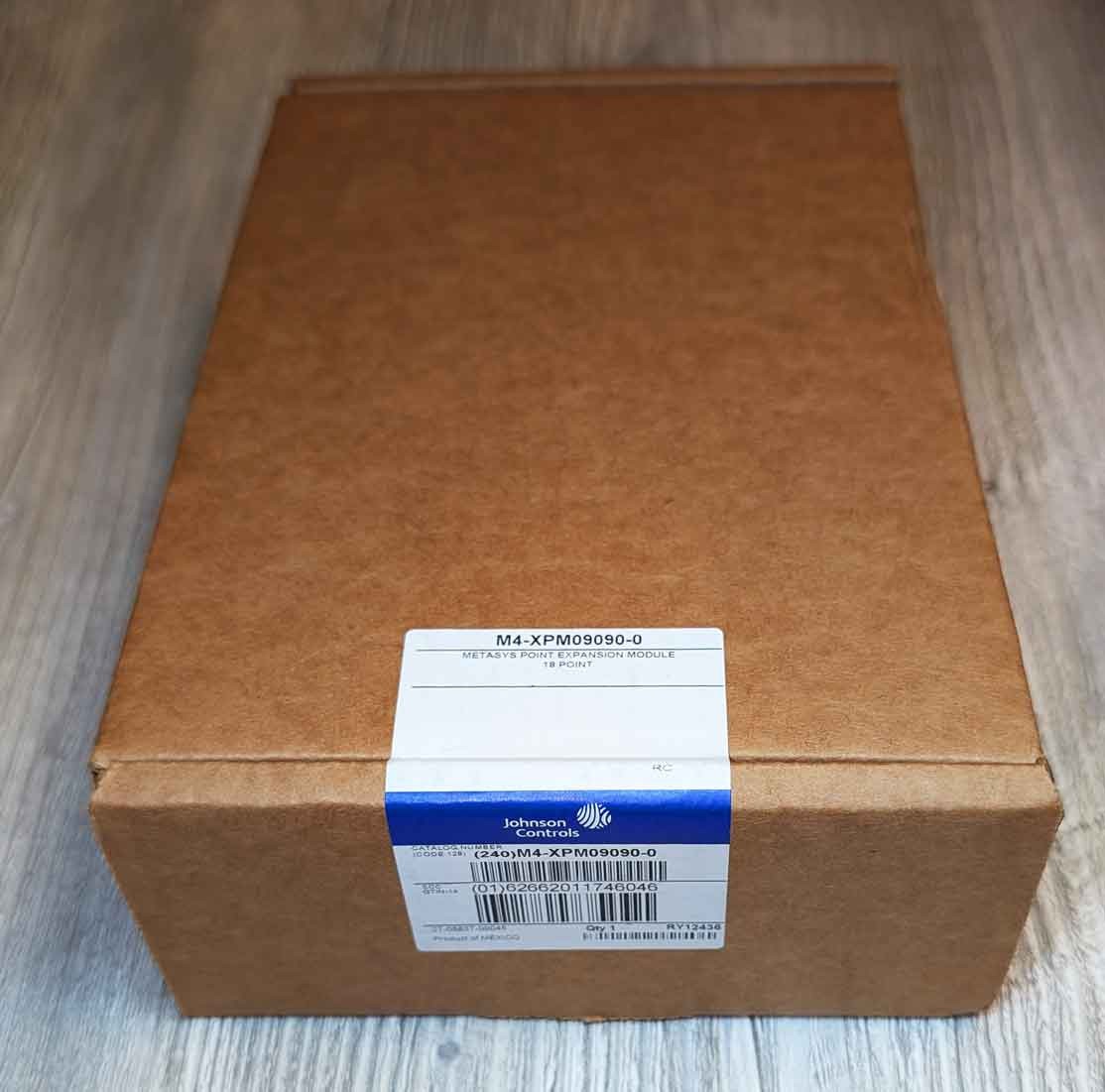

Johnson Controls Metasys M4-XPM09090-0 BRAND NEW IN THE SEALED BOX!
The Johnson Controls M4-XPM09090-0 is an 18-point input/output expansion module engineered for the Metasys building automation system. It integrates directly with compatible equipment controllers and supervisory systems via the BACnet MS/TP protocol to expand field points.Technical Specifications

Brand: Johnson Controls
Part Number: M4-XPM09090-0
Total I/O Points: 18
Input Voltage: 24 VAC (Class 2)
Communication Protocol: BACnet MS/TP
Dimensions: 150mm x 190mm x 44.5mm

Available Terminal Blocks & FeaturesAccording to the official M4-XPM Expansion Modules Installation Guide, this model is equipped with color-coded, removable terminal blocks:

Binary Inputs (BI): White terminals for monitoring dual-state on/off devices.
Universal Inputs (UI): Includes two +15 VDC power source terminals specifically for active 3-wire input devices.
Analog Outputs (AO) & Configurable Outputs (CO): Black terminals for variable or custom system control configurations.
Rotary Switch Block: Decimal addressing wheels to establish the hardware device address.
End-of-Line (EOL) Switch: Built-in switch to easily terminate the network segment.

I/O CountPoint typeQuantitySupported signalsUniversal Inputs (UI)70–10 VDC, 4–20 mA, resistance/thermistor/RTD, dry contactBinary Inputs (BI)2Dry contact or pulse counterConfigurable Outputs (CO)40–10 VDC analog or 24 VAC triac binaryAnalog Outputs (AO)20–10 VDC or 4–20 mABinary Outputs (BO)324 VAC triac, externally poweredTotal189 inputs and 9 outputs
