Johnson Controls METASYS CVM03050 Unit Controller 24VAC 2.5A M4-CVM03050-0 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

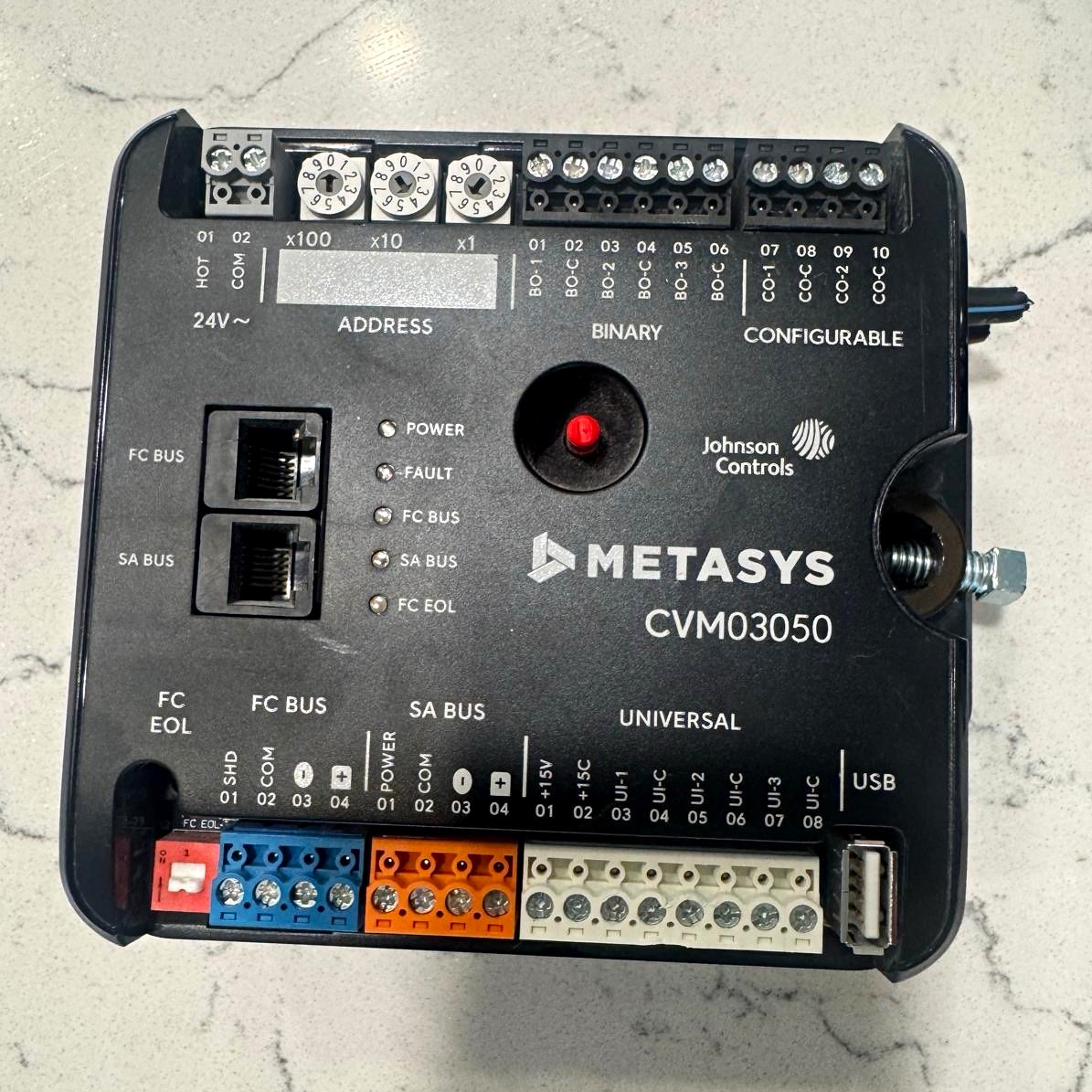

Johnson Controls METASYS CVM03050 Unit Controller 24VAC 2.5A M4-CVM03050-0:
$100.00

Model: M4-CVM03050-0
Revision: Rev C
Brand: Johnson Controls
Series: Metasys
Power Input: 24VAC, 2.5A, Class 2
Outputs: 24VAC, 0.5A, Class 2
Actuator Torque: 35 in-lb (4 Nm)
Actuator Travel Time: 60 SecondsCommercial HVAC VAV box controller with integrated actuator.CONDITION:Pre-owned and removed from a commercial installation.Unit shows normal cosmetic signs of previous installation and use, including light scratches, dust, and surface marks.Terminal blocks and components shown in the photos are included.No obvious major physical damage is visible.Unit has not been fully tested after removal and is being sold in the condition shown.Please review all photos carefully for exact condition, revision, connections, and included components.Only the item and components shown in the photos are included.

---

---

---

Johnson Controls KZ-4000-8

$34.99

---

JOHNSON CONTROLS NSB8BHN240-0 (Sealed Box)

$199.00

---

Johnson Controls M4-SNE22000-0 Metasys SNE22000 Network Engine 24V 0.4A

$2400.00

---
