Hubbell HBLDS3P Disconnect Switch 3-Pole 600V NEMA 3R Non-Fusible NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

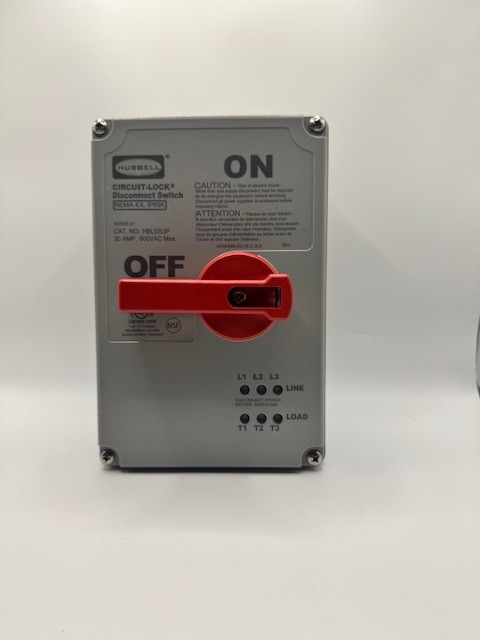

Hubbell HBLDS3P Disconnect Switch 3-Pole 600V NEMA 3R Non-Fusible NEW:
$300.00

Hubbell HBLDS3P 30A 600V AC 3‑Pole Unfused DisconnectSwitch – NEMA 4X Enclosure with LED Phase Indication

Product Overview

Ensure maximum safety, reliability, and visibility in yourelectrical systems with theHubbell HBLDS3P Circuit‑Lock® DisconnectSwitch. Designed for heavy‑duty industrial environments, this30Amp, 600 Volt AC, 3‑Pole, Unfused Disconnectprovides a visible meansof disconnect and a clear LED indication of circuit status. The ruggedNEMAType 4X / IP69kcorrosion‑resistant enclosure makes it ideal forindoor or outdoor use in demanding conditions.

Hubbell’s innovativeinSIGHT™ technologyintegratessix highly visible phase‑indicating LEDs—three for the line side and three forthe load side—allowing users to verify the electrical status of the switchsafely and instantly, even before opening the cover.

Key Features

• Model:HBLDS3P
• Manufacturer:Hubbell Wiring Device‑Kellems
• Type:3‑Pole, Unfused Disconnect Switch
• Amperage:30 Amps
• Voltage Rating:600V AC
• Enclosure Rating:NEMA 4X / IP69k – suitable for washdown or outdoor environments
• Material:Heavy‑duty corrosion‑resistant enclosure
• LED Illumination:Six integral phase‑identification LEDs (3 line side / 3 load side)
• Phase Indication:Provides secondary visual confirmation of make/break on all phases
• Lockable Handle:Red handle can be locked in OFF position for OSHA Lockout/Tagout compliance
• Safety Interlock:Cover cannot be removed while switch is in the ON position
• Mounting:Surface mount; compact and durable design for easy installation
• Application:Ideal for commercial, industrial, and institutional power disconnection requirements

• Benefits

  • Enhanced safety with visual confirmation before accessing the enclosure
  • Reduces downtime and maintenance risk by identifying phase loss or welded contacts instantly
  • Suitable for harsh or high‑moisture environments such as food processing, manufacturing, wastewater, or outdoor installations
  • Meets OSHA and NEC requirements for motor disconnects

  Specifications

  Feature

  Details

  Catalog ID

  HBLDS3P

  Rating

  30A, 600V AC

  Poles

  3

  Fuse Type

  Non‑Fused

  LED Type

  Phase indication (line and load)

  Enclosure

  NEMA 4X / IP69k

  Handle Color

  Red

  Series

  Circuit‑Lock® inSIGHT™

  Compliance

  OSHA Lockout/Tagout compatible, RoHS compliant

  Condition

  ✅ Brand New (Factory Sealed)
  🕒Fast Dispatch
  📦Ships Securely from Trusted Seller

  Description Summary for Title

  Hubbell HBLDS3P Disconnect Switch 30A 600V 3‑Pole UnfusedNEMA 4X LED inSIGHT Circuit‑Lock

---

---

---
