On eBay Now...High Accuracy ET5410A+ Electronic Digital Load Tester Single Channel 150V 0-40A For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

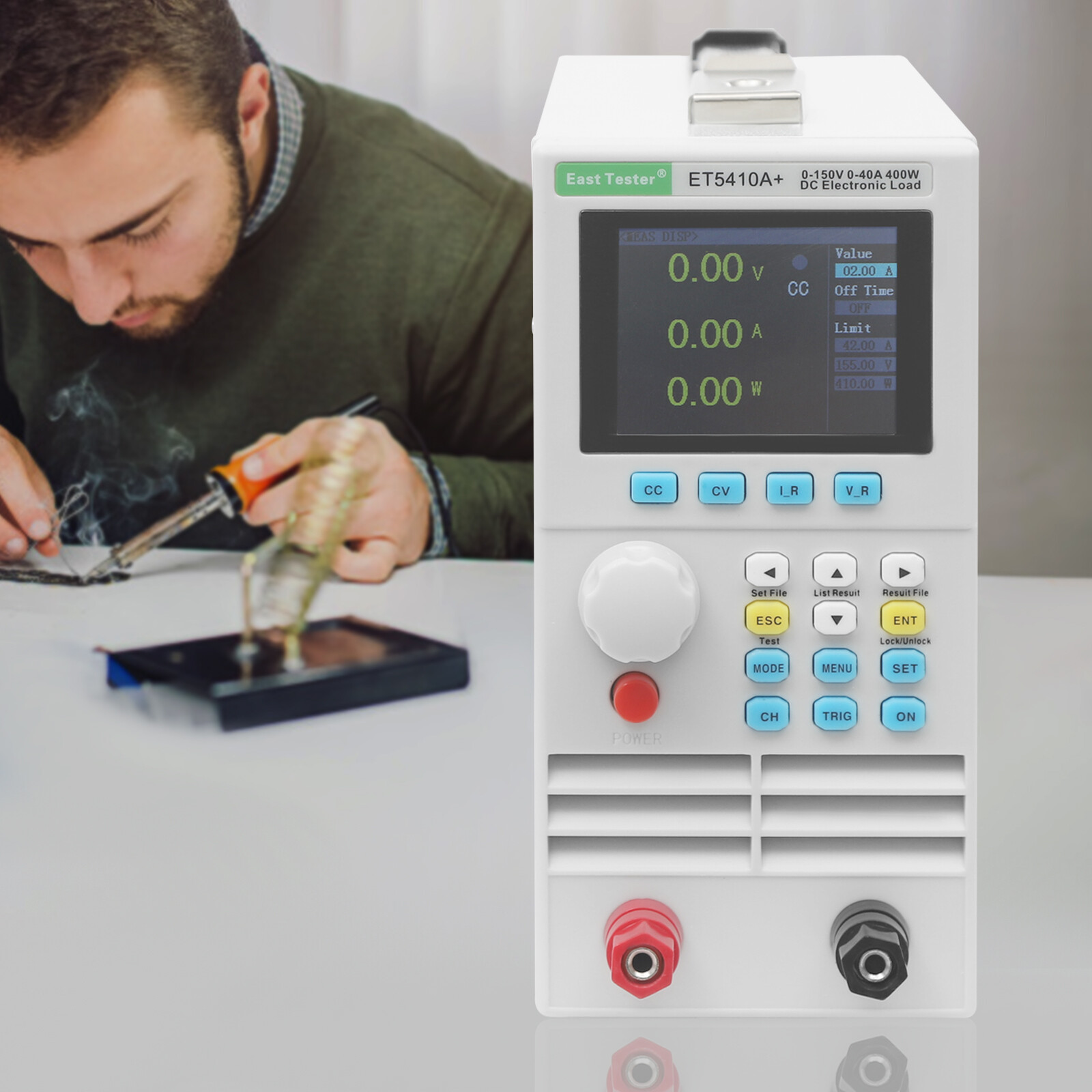

High Accuracy ET5410A+ Electronic Digital Load Tester Single Channel 150V 0-40A:
$177.48
- Description
This single-channel DC electronic load tester can accurately simulate various load conditions, providing efficient help, accurate testing, and a reliable guarantee for power supply testing in various industries. It comes with a 2.8-inch TFT LCD display, and a variety of test functions, making it an excellent choice for those pursuing high efficiency and stability, easy operation, and diverse testing, helping you to improve product quality and performance.
Key Features
Premium Material: The premium PCB electric board, silicone, and aluminum with the screen printing process boast high durability, sturdiness, and rust resistance, giving the product excellent testing performance and ensuring protection to the inner electric components.
Multi-functional: The product comes with CC, CV, CR, CP, CC+CV, CR+CV basic measurement modes, internal resistance test for batteries and power supplies, dynamic test modes, scan test modes, list modes, and short-circuit test, which allows you to perform a wide range of tests and experiments on power supplies, LEDs, and more.
Thoughtful Design: The product provides software remote compensation function, supports external trigger input, and can be remotely operated through the USB interface. In addition, power outages will maintain data storage functionality without worrying about data loss.
High Safety: The product comes with overvoltage, overcurrent, overpower, over temperature, and short circuit protection to ensure safe testing. You can flexibly set overvoltage and overcurrent parameters to achieve more effective protection. In addition, the product also comes with a button lock function, built-in buzzer alarm, and input polarity reversal prompt, providing more comprehensive warning and protection for your operation.
Quick Heat Dissipation: The product has heat dissipation holes and a built-in fan to maintain temperature stability, avoid burning, and effectively extend its service life.
Simple Operation: The sensitive buttons and 2.8-inch TFT LCD display allow you to easily and accurately set parameters, making your operation simpler.
Easy to Carry: The convenient handle, lightweight (7.96 lbs), and compact size (12.2*3.54*7.48in) make this product easy to transport to your workplace.
Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".
Details
Smooth Edges: They can protect your hands from getting scratched during daily use.
Non-slip Feet: They give the product sturdy support during operation and prevent it from scratching the table when it is moved.
Application
The product is mainly used for testing lighting fixtures, chargers, batteries, internal resistance, switching power supplies, mobile power supplies, lithium batteries, energy vehicles, LED driver power supplies, etc. It is also suitable for testing on production lines and aging process testing.
Specifications
Color: White
Material: Aluminum, PCB Electric Board, Silicone
Process: Screen Printing
Mount Type: Free Standing
Assembly Required: No
Channel Type: Single Channel
Plug Standard: US Standard
Power: 400W
Input Voltage: 0-150V
Input Current: 0-40A
Constant Voltage Mode:
Range: 0.1-19.999V, 0.1-150.00V
Resolution: 1mV, 10mV
Accuracy: ±(0.05%+0.02%FS)
Constant Current Mode:
Range: 0-3.000A, 0-40.00A
Resolution: 1mA, 10mA
Accuracy: ±(0.05%+0.05%FS)
Constant Resistance Mode:
Range: 0.05Ω-1kΩ, 1kΩ-4.5kΩ
Resolution: 10mΩ, 100mΩ
Accuracy: ±(0.1%+0.5%FS)
Constant Power Mode:
Range: 0-400W
Resolution: 10mW
Accuracy: ±(0.1%+0.5%FS)
Dynamic Test Function:
Mode: CC, CV
T1&T2: 50ms~60s, 1ms resolution
Battery Test Function:
Discharge Mode: CC, CR
Maximum Discharge Capacity: 9999Ah
Resolution: 1mA, 10mA, 10mΩ, 100mΩ
Voltage Readback Value:
Range: 0~19.999V, 0~150.00V
Resolution: 1mV, 10mV
Accuracy: ±(0.05%+0.1%FS)
Current Readback Value
Range: 0~3.000A, 0~40.00A
Resolution: 1mA, 10mA
Accuracy: ±(0.05%+0.1%FS)
Power Readback Value
Range: 0~400W
Resolution: 10mW
Accuracy: ±(0.1%+0.5%FS)
Over-voltage Protection: >155V Cut Off Input
Over Current Protection: >42A Cut Off Input
Over Power Protection: 420W
Over Temperature Protection: 85℃/185℉
Voltage (CV) Short-circuit Range: 0V
Product Overall Size: 31*9*19cm/12.2*3.54*7.48in
Package Size: 40*28*20cm/15.75*11.02*7.87in
Gross Weight: 3.8kg/8.38lbs
Net Weight: 3.61kg/7.96lbs
Package Included
1* Electronic Load Tester
1* English Manual
1* Power Cord
Notes
1. Please check the size carefully before ordering.
2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
