Heavy Duty Hollow Rotary Table Circular Positioner Replace DD Motor/Cam Divider :
$654.62

High Accuracy Rotating Platform: 1 arc-min positioning accuracy and 15 arc-min repeated positioning accuracy, which is dramatically growing in high-precision industrial automation equipment, glue dispensing machines, the 4th or 5th axis of machine tools, packing machines, photoelectric and visual inspection equipment, indexing plate, laser printer, sorting machine, robot joint, etc.360-Degree Rotating Table with Hollow Design: it is easy to position and stay at any angle by connecting with a stepper motor or servo motor directly, the actuator comes with a photoelectric sensor (674) bracket to achieve high accuracy position and control, and the hollow design makes it easy to attach the rotating plate and avoid the complex wiring problem.

Heavy Duty Hollow Rotary Table Circular Positioner Replace DD Motor/Cam Divider

Package list

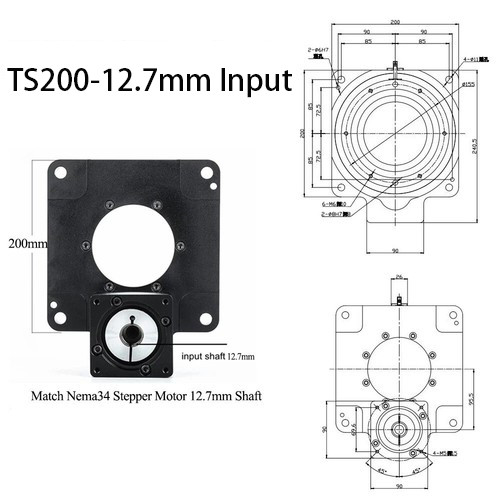

1* TS200 Hollow Rotating Table(200mm width)
1* Photoelectric Sensor

About this item

360-Degree Rotating Table with Hollow Design:it is easy to position and stay at any angle by connecting with a stepper motor or servo motor directly, the actuator comes with a photoelectric sensor (674) bracket to achieve high accuracy position and control, and the hollow design makes it easy to attach the rotating plate and avoid the complex wiring problem.

Equipped with Crossed Roller Bearing:considering the accuracy and stability that may be affected by the lateral force from different directions, the high rigidity crossed roller bearing was adopted, which features high rotational accuracy, stable rotational torque, and high loading capacity, which can ensure the stability and high precision of the rotating platform.

This ZCT Rotary Actuator Fits for Standard Nema34 Stepper motor,750W 1000W Servo Motor ,you could contact us before purchasing

(Please Know That We Can Provide Different Sizes Flange to Fits Most Stepper/ Servo Motors on the Market).

Product Features

✅The rotary table of the hollow rotary platform is of hollow structure, and the motor is connected at the side to facilitate the installation of air

pipes and wires in the smelting tool.Like the divider and DD motor, it can directly fix the heavy objects on the platform for transmission.

✅ Considering the side force and other problems when the product is used, we adopt cross roller bearing, and an anti overturning stable

ring is set in the middle. In order to better withstand the lateral force load in use.

✅The body is made of aluminum alloy and processed by high-precision CNC to ensure the accuracy of all parts. The gear adopts the

carburizing heat treatment and grinding process, which can reach the gear accuracy of grade 5 after machining, and its surface hardness

can reach 58-62HRC. After the assembly of the product is completed, -- lapping procedures will be carried out to ensure that the parallelism

and perpendicularity of the end face are within a trace of runout.

✅The accuracy level of some gears of the hollow rotating platform is up to 4, which makes the hollow rotating platform have very small air

return. We can compensate for the error during assembly by designing the adjustable gear center distance, and the repeated positioning

accuracy can reach less than 10 arc seconds.

✅The worktable and mechanical arm of the device can be directly installed on the turntable of the hollow rotary platform. Compared with the

use of mechanism parts such as pulley, it can reduce the working hours and costs of mechanism design, parts deployment, belt state adjustment, etc.

✅The demand for high-precision industrial automation equipment, dispensing machines, fourth or fifth axes of machine tools, packaging machines,

optoelectronic and visual inspection equipment, indexing boards, laser printers, sorting machines, robot joints and other fields is rapidly increasing.

More Product Extension

If you are interested in it,you can click below title:

4th Axis Motorized Hollow Rotating Platform Indexing Rotary Can Replace DD MOTOR

5Axis Electric Hollow Rotating Platform Indexing Rotary Table DD MOTOR Robot Arm

Tips:You can contact us to provide 3D Model drawings!!!!

Technical ratio

10:1

Reted output torque (N.m)

Max out torque (N.m)

210

Maxaxial load

4000N

Max moment of inertia

100N.m

Torsional rigidity (N.m/arcmin)

Parellelism of rorating platform (mm)

≤0.013

Adapt to stepper motor

12.7/14mm shaft Nema34 stepper motor

Adapt to servo motor

19mm shaft 750W/1KW 80mm servo (kg)

8.1

Design load (kg)

Bearing structure

Cross roller bearing

Positioning accuracy

≤1 arc-min

Repeated positioning accuracy

≤15 arc-sec

Allowable disk speed

200rpm (Intermittent operration)

Accuracy life

30000h ( Intermittent operration)

Protection level

IP50

Lubrication method

Long-term lubrication

Installation of
rotating of
