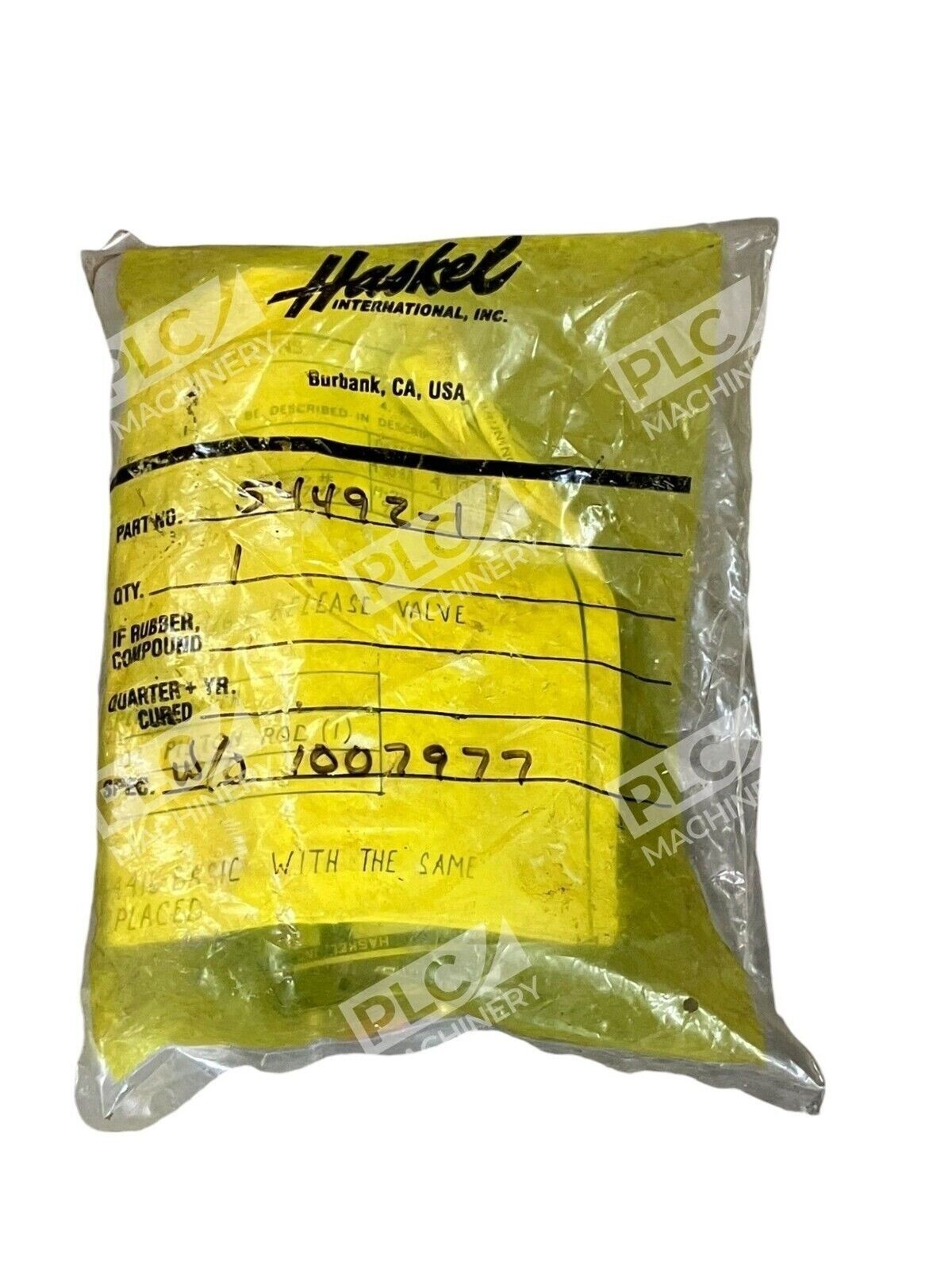

Haskel Inc 54492-1:
$377.29

✓ 100% Positive response ✓ Guaranteed Best Price ✓ Secure Shopping ✓ Hassle Free Returns Home New Arrivals Ending Soon response Contact Us

Description

Overview

The Haskel 54492-1 is a 2-way normally open air pilot valve designed for pneumatically-actuated control in high-pressure hydraulic and fluid applications. Built by Haskel International, Inc.â€”a leading manufacturer of air-driven pumps, boosters, and precision pressure control componentsâ€”this valve features a seated poppet design that provides virtually zero leakage at high pressures with low-viscosity fluids.

Key Features

2-way normally open configuration for direct air-actuated control
Nominal area ratio of 55:1 with maximum inlet pressure of 5000 psig and Cv of 0.6
Seated poppet design minimizes leakage on low-viscosity liquids
Ideal for wet or hazardous environments with air-driven pump systems
Optional electrical control via sub-miniature 3-way solenoid air valves
Stainless steel, Buna N, and PTFE construction for corrosion resistance

Technical Specifications

Nominal Area Ratio: 55:1
Maximum Inlet Pressure: 5000 psig
Cv (Flow Coefficient): 0.6
Configuration: 2-way, Normally Open
Actuation: Direct air pilot
Air Pilot Port: 150 PSI maximum
Wetted Materials: Stainless Steel, Buna N, PTFE
Manufacturer: Haskel International, Inc.
Manufacturer Location: Burbank, California, USA

Typical Applications

Pressure control and regulation in hydraulic test systems
Flow control for air-driven liquid pumps and boosters
Relief and vent functions in portable pump stations
Moisture-prone or hazardous area installations where electrical control is impractical
Industrial fluid transfer and pressurization equipment
Integration with Haskel air-driven pump series for complete system control

Compatibility & ReplacementsCompatible With

Haskel air-driven liquid pump series (DX, DSX, DF models)
High-pressure gas booster systems
Hydraulic test benches and pressure control stations
Industrial fluid transfer systems rated for 5000 psig
Sub-miniature 3-way solenoid air valves (for electrical actuation)

Replaces / Drop-In Replacement For

Haskel 54492 (higher pressure variant: 11,000 psig at 120:1 ratio)
Other normally open 2-way pilot valves with 55:1 specificationsâ€”verify with system integrator

Works With

Haskel 54416 series pilot valves (cross-reference engineering documentation)
Haskel 53585 and 53430 series air pilot valve line
Pneumatic control systems operating at 3â€“150 psi air drive pressure
Fluid systems requiring low-leakage poppet seating at high inlet pressures
