HP / Agilent 83731A Synthesized Signal Generator For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

HP / Agilent 83731A Synthesized Signal Generator:
$1750.00

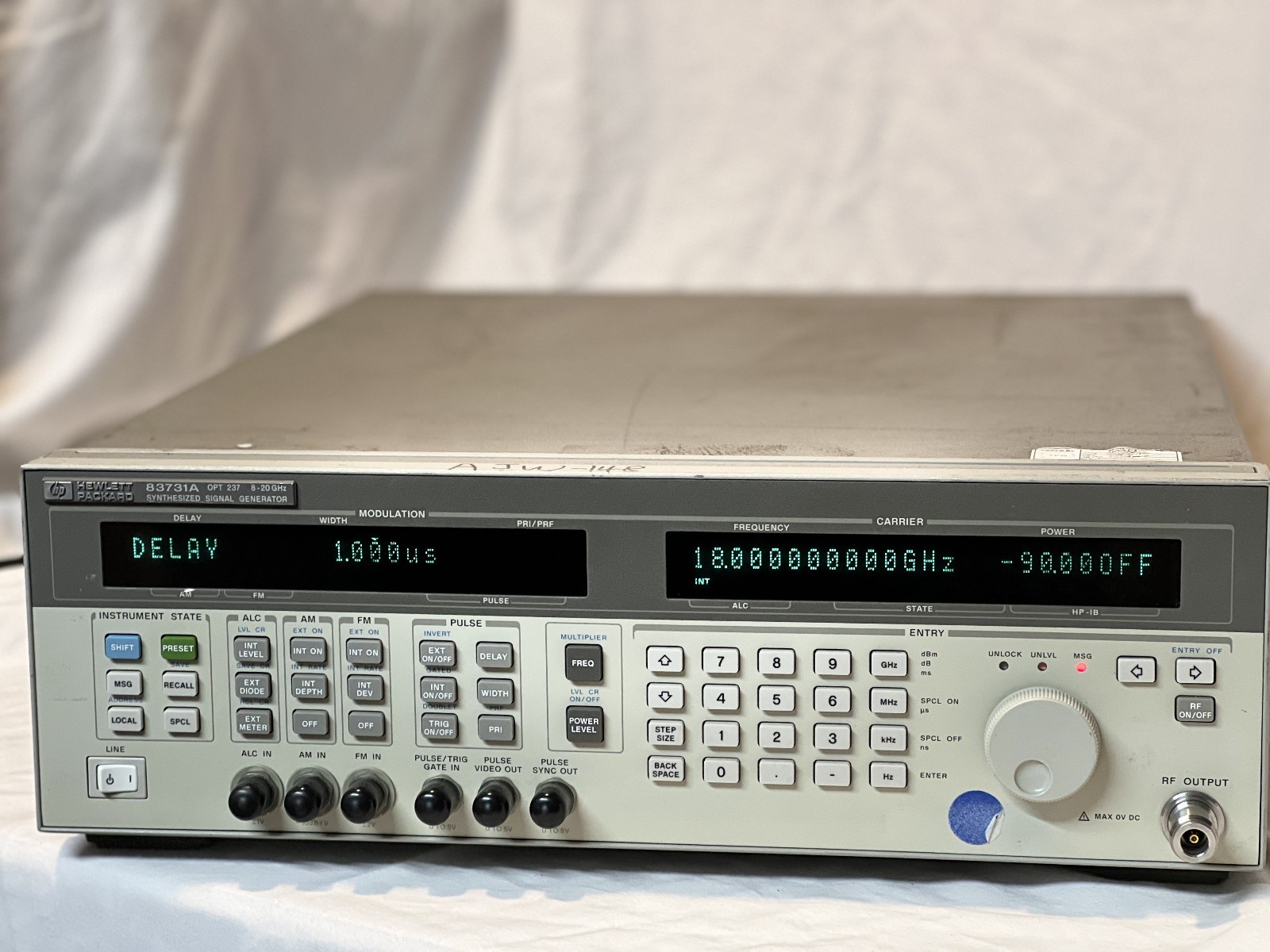

HP / Agilent 83731A

Calibrated February 5, 2026 · Certificate Included Calibration

This unit was calibrated on February 5, 2026 and ships with its calibration certificate, issued by Bionetics (PME cert, TPG). Bionetics is an established metrology and calibration provider serving commercial and government customers, operating fixed calibration laboratories and interfacing with NIST on the maintenance of primary standards.

Buyers should review the certificate and confirm that its scope, traceability, and calibration interval meet the requirements of their own quality program.

Condition

Used. The exterior shows light scuffing consistent with normal bench and rack use — nothing major, no dents, cracks, or impact damage. See photos, which show the actual unit being sold.

Overview

The HP 83731A is a microwave synthesized signal generator known for excellent spectral purity and high output power — typically greater than +14 dBm — with spectral purity maintained even at high power levels. It is widely used for microwave receiver testing, local oscillator substitution, and component characterization. It is the recommended local oscillator for the HP 8970B noise figure meter, where its low broadband noise reduces error when measuring low-gain devices, and it can drive 83550-series millimeter wave modules to generate signals up to 110 GHz.

Specifications Manufacturer Hewlett Packard / Agilent / Keysight Model 83731A Series HP 83700 series synthesized signal generators Frequency range 8 GHz to 20 GHz (as configured with Option 237) Output power Typically greater than +14 dBm Installed options 1E1 (step attenuator), 1E2, 1E5, 237 Serial number 3339A00110 Interface GPIB (HP-IB) Form factor Benchtop, rack mountable Cosmetic condition Light scuffing, no major wear or damage Calibration Bionetics PME certificate, February 5, 2026 — included Testing Performed

Powered on, passes self-test. Everything appears to be in perfect order, i have no cables to test everything./

What\'s Included

HP 83731A synthesized signal generator
Bionetics calibration certificate dated February 5, 2026
No original box, manuals, cables, or accessories — unit and certificate only
Everything pictured is included; nothing pictured is excluded

This unit is configured with Option 237 and covers 8 to 20 GHz. Standard 83731A units without this option cover 1 to 20 GHz. Please confirm the 8 GHz low-end limit suits your application before purchasing.

This model is obsolete and no longer sold or supported by Keysight. Support, parts, and future calibration availability should be confirmed independently.

Shipping & Returns

Ships promptly. The original packaging is not available, so the instrument is double-boxed with heavy foam padding on all sides and shipped insured to protect it in transit.

Returns are not accepted. Please review the photos and description carefully, and ask any questions before purchasing.
