HONEYWELL R7847 A 1033,HONEYWELL RECTIFICATION FLAME AMPLIFEIR,BU,SJ,DF,EB:
$64.00

Honeywell R7847A1033 Rectification Flame AmplifierFor 7800 SERIES Relay Modules | Solid State Plug-In | USEDPRODUCT OVERVIEW

TheHoneywell R7847A1033is a solid-state plug-in rectification flame amplifier designed for use withHoneywell 7800 SERIES Relay Modules.

It responds to a rectified flame signal from compatible flame detectors and provides flame presence verification in burner management systems forgas, oil, and coal-fired applications.

This unit is part of Honeywell’s modular flame safeguard control system.

MODEL DETAILS

Series:7800 SERIES
Type:Rectification Flame Amplifier
Flame Detection Type:Rectification (Green Label)
Mounting:Plug-in via printed circuit board edge connector
Fuel Types:Gas / Oil / Coal (depending on detector used)

TECHNICAL SPECIFICATIONS🔹 Flame Failure Response Time (FFRT)

0.8 or 1.0 second
2.0 or 3.0 seconds
(Depends on selected 7800 relay module)

🔹 Flame Signal Voltage

Range:0.0 to 5.0 VDC
Minimum acceptable:1.25 VDC
Test jacks provided for direct voltage measurement

🔹 Environmental Ratings

Operating Temperature:-40°F to 140°F (-40°C to 60°C)
Storage Temperature:-40°F to 150°F (-40°C to 65°C)
Humidity: 85% RH continuous (non-condensing)
Vibration: 0.5G continuous
Weight: 2.5 oz (71 g)

COMPATIBILITYUse With:

Honeywell7800 SERIES Relay Modules
- RM7823
- RM7840
- RM7890
- RM7895
- RM7896
- RM7888
- RM7838
- Rectifying Flame Rod Holders:
  - C7004
  - C7007
  - C7011
  - C7008
  - C7009
  - Q179
  Rectifying Photocells:
  - C7003
  - C7010
  - C7013
  - C7014
  Ultraviolet (Purple Peeper®):
  - C7012A
  - SYSTEM FUNCTION
    The R7847A amplifier:
    ✔ Monitors flame signal from rectification-type sensors
    ✔ Provides DC flame signal output to relay module
    ✔ Allows measurement via built-in test jacks
    ✔ Enables safe burner shutdown on flame failure
    This amplifier doesNOTinclude Dynamic AMPLI-CHECK® (that feature is available in R7847B versions).
    TYPICAL APPLICATIONS
    - Industrial boilers
    - Commercial burners
    - Process heaters
    - Gas and oil combustion systems
    - Burner management systems (BMS)
    Used in manufacturing, power plants, food processing, heating plants, and industrial facilities.
    Honeywell flame amplifier
    R7847A1033
    7800 series flame amplifier
    burner flame control module
    rectification flame sensor amplifier
    Honeywell burner control system
    RM7890 flame amplifier
    gas burner flame safeguard
    industrial boiler flame monitor
    combustion safety control
    Used units. Pulled from working environment.
    Not tested. Sold as-is.
    May show cosmetic wear such as scratches, marks or label discoloration.

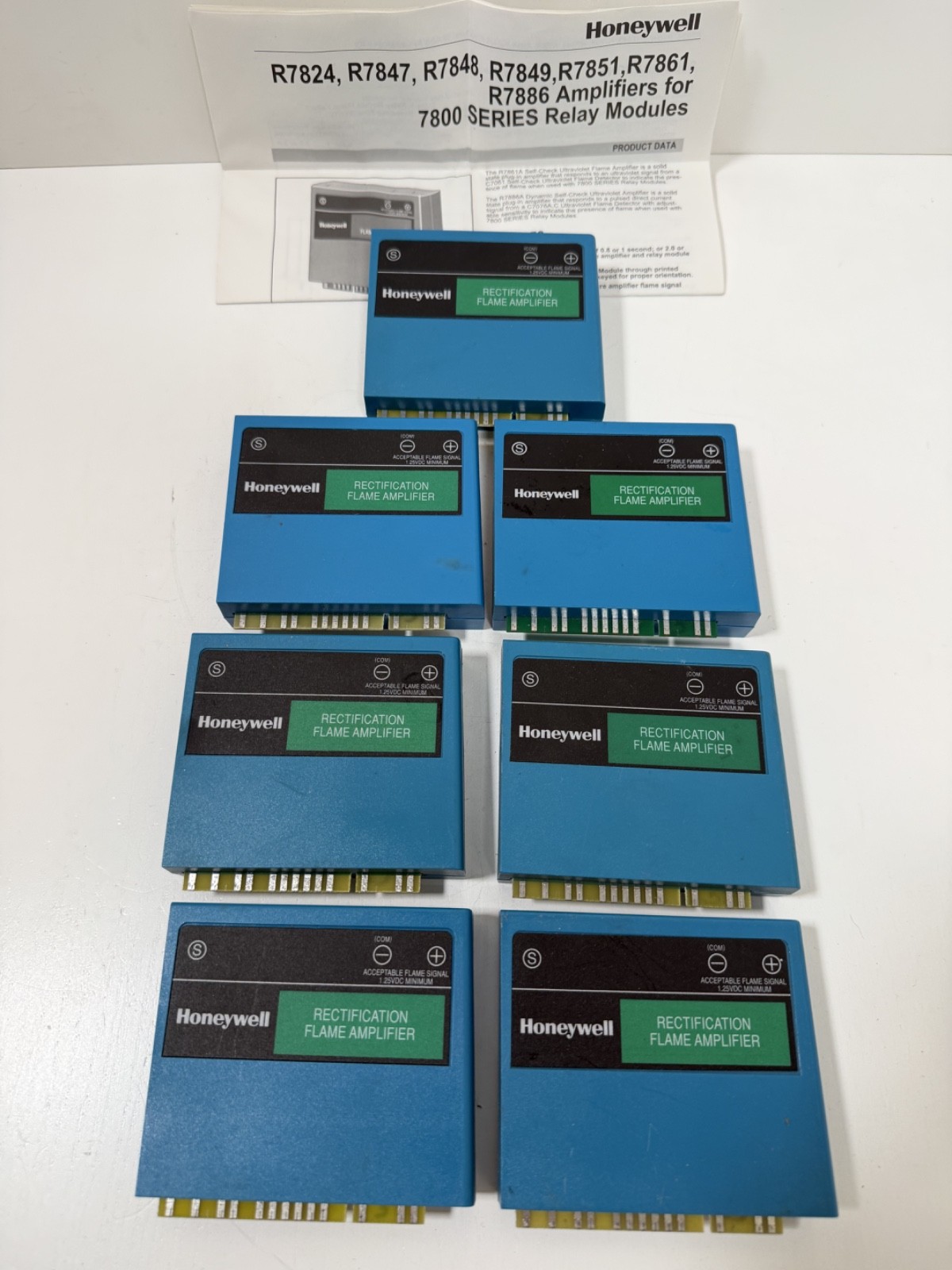

    You will receive one unit in similar condition to those shown in the photos.

    You will receive ONE Honeywell R7847A 1033 unit.
    Serial numbers and date codes will vary.
    All units are in similar used condition.
    Photos show the actual lot. Individual cosmetic condition may slightly vary.
