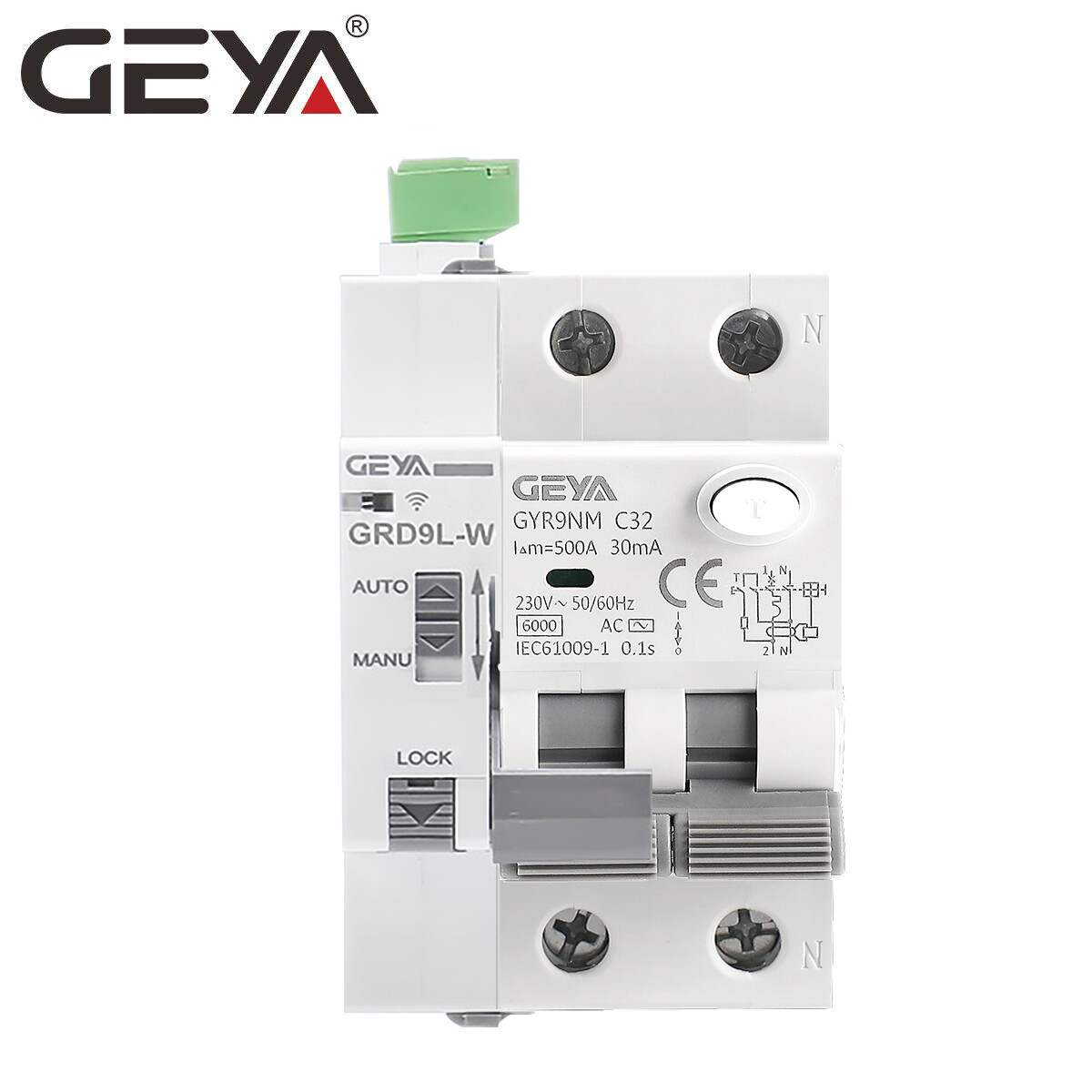

GEYA Tuya WIFI Controller Smart RCBO AC Type 2P AC230V 16/25/40A 30/100/300mA for Sale

Recent Threads

On eBay Now...

GEYA Tuya WIFI Controller Smart RCBO AC Type 2P AC230V 16/25/40A 30/100/300mA For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

GEYA Tuya WIFI Controller Smart RCBO AC Type 2P AC230V 16/25/40A 30/100/300mA:
$50.94

Store Categories Store Categories

Time Relay
Single Function Time Relay
Multi Function Time Relay
On/Off Asymmetric Cycler
Delay On Star/Delta
Delay Off Without Supply Vol
Double Delay Time Relay
Staircase Switch
Bluetooth Time Relay
Forward and reverse time relay
Monitoring Relay
Single Phase Voltage Relay
3 Phase Voltage Relay
Current Monitoring Relay
Level Control Relay
Temperature Control Relay
Light Control &Twlight relay
Memory&Latching Relay
Intermediate&Auxiliary Relay
Solid State Relay
Electromagnetic Relay
Voltage Protector
Transfer Switch
PV Soler <-> City Power
Grid Power <-> AC Generator
Manual changeover switch
Circuit Breaker
AC MCB
DC MCB
Type AC RCD RCCB
Type AC-S RCD RCCB
Type A RCD RCCB
Type A-SI RCD RCCB
Type B RCD RCCB
RCBO
Isolator-Main Switch
DPN MCB
MCCB
AFDD
MCB Recloser
RCCB Recloser
MPCB
WIFI MCB
WIFI RCCB
WIFI RCBO
PV Isolation switch
Surge Protection Device
AC SPD
DC SPD
AC Contactor
Automatic Household Contactor
Manual Household Contactor
Industrial Contactor
Relay Module PLC
Interface Relay Module (T73)
1NO1NC plug-in relay module
OMRON 1NO1NC Plug-in Type
OMRON 1NO1NC with Fuse
OMRON 2NO2NC Plug-in Type
Slim Relay Module PLC 6.2mm
Current Transformer
Photocell Switch
Proximity Switch
Digtal Timer Switch
Mechanical Timer Switch
Solar Storage system
Distribution Box
Junction Box
Plastic Distribution Box
Electrical accessories
Cable Glands
PG type nylon cable glands
Big Sale Clearance
GAEYAELE
10 PCS of Items
Meter
Voltage Meter
Current Meter
HZ Meter
Voltage&Current&HZ Meter
Home & Garden
Cutting Boards
Other

GEYA RCCB Wifi Control Device Coupled With RCCB

Product Description

Please check this before you buy this item!

We have4 different type ofRecloser.

1.GRD9L-C= Recloser is Swicth Input Control Mode

2.GRD9L-D= Recloser is Controlled by switch+Auto Reclosing

3.GRD9L-S= Recloser is RS485 Control Mode,(Connect with Computer or PLC)

4.GRD9L-R= Recloser is Auto Reclose Control Mode

This link is for GRD9L-W,If you need other type,Please contact me !

-It can be used for intelligent household electricity management and photovoltaic distribution systems.

Function Features -It can be matched with MCB/RCCB/RCBO and remotely controlled for closing and opening through the APP. -RCCB/MCB/RCBO (timing switch function) can be set to be turned ON/OFF at any time through the APP. -With manual / automatic selector switch. -With mechanical / electronic double locking function. -The shaft transmission mode is more stable and reliable. -Can match other accessories. - Work status is indicated by LED. - 1-MODULE(RD).

Technical parameters GRD9L-W Control mode WiFi Supply terminals A1-A2 Voltage range AC 220V(50-60Hz) Supply voltage tolerance -10%;+10% Action time ≤1s WIFI connectivity 802.11 b/g/n 2.4GHz Mechanical life 10000 Storage temperature -35℃ to +75℃ Electrical life Refer to MCB / RCCB /RCBO catalogue Operating temperature -20℃ to +55℃（-4℉ to 131℉） Mounting/DIN rail Din rail EN/IEC 60715 Max.cable size(mm2) solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) Dimensions 82×18×78mm Combination with accessories Auxillary contact, Auxillary contact, Shunt release, Under voltage release

Technical parameters RCBO Rated Current In 16/25/40A Poles 2P Rated Voltage Ue 230V~ Insulation voltageUi 500V Rated frequency 50/60Hz RatedSensitivity I△n 30mA,100mA,300mA Electrical Life 4000 Mechanical Life 8000 Ambient temperature -5~+40℃ Terminal connection type Cable/U-type busbar/Pin-type busbar Terminal size top/bottom for cable 35mm218-3 Tightening torque 3.5 N*m 22

More GRD9L-W items for you consider

Item MCB LINK GRD9L-W & GYM9-1P https://www..com/itm/116359705842 GRD9L-W & GYM9-2P https://www..com/itm/116034401547 GRD9L-W & GYM9-3P https://www..com/itm/116359726365 GRD9L-W & GYM9-4P https://www..com/itm/116359737930 RCCB GRD9L-W & GYL9-2P https://www..com/itm/116359780217 GRD9L-W & GYL9-4P https://www..com/itm/116359790653 RCBO GRD9L-W & GYR9NM-2P https://www..com/itm/116362337755 GRD9L-W & GYR9NM-4P https://www..com/itm/116362398480 ONLY GRD9L-W https://www..com/itm/116365687084
