GE TH3221R 30A 2-Pole 240V Heavy Duty Safety Switch Type 3R Fusible For Sale

GE TH3221R 30A 2-Pole 240V Heavy Duty Safety Switch Type 3R Fusible
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

GE TH3221R 30A 2-Pole 240V Heavy Duty Safety Switch Type 3R Fusible:
$99.99

Description

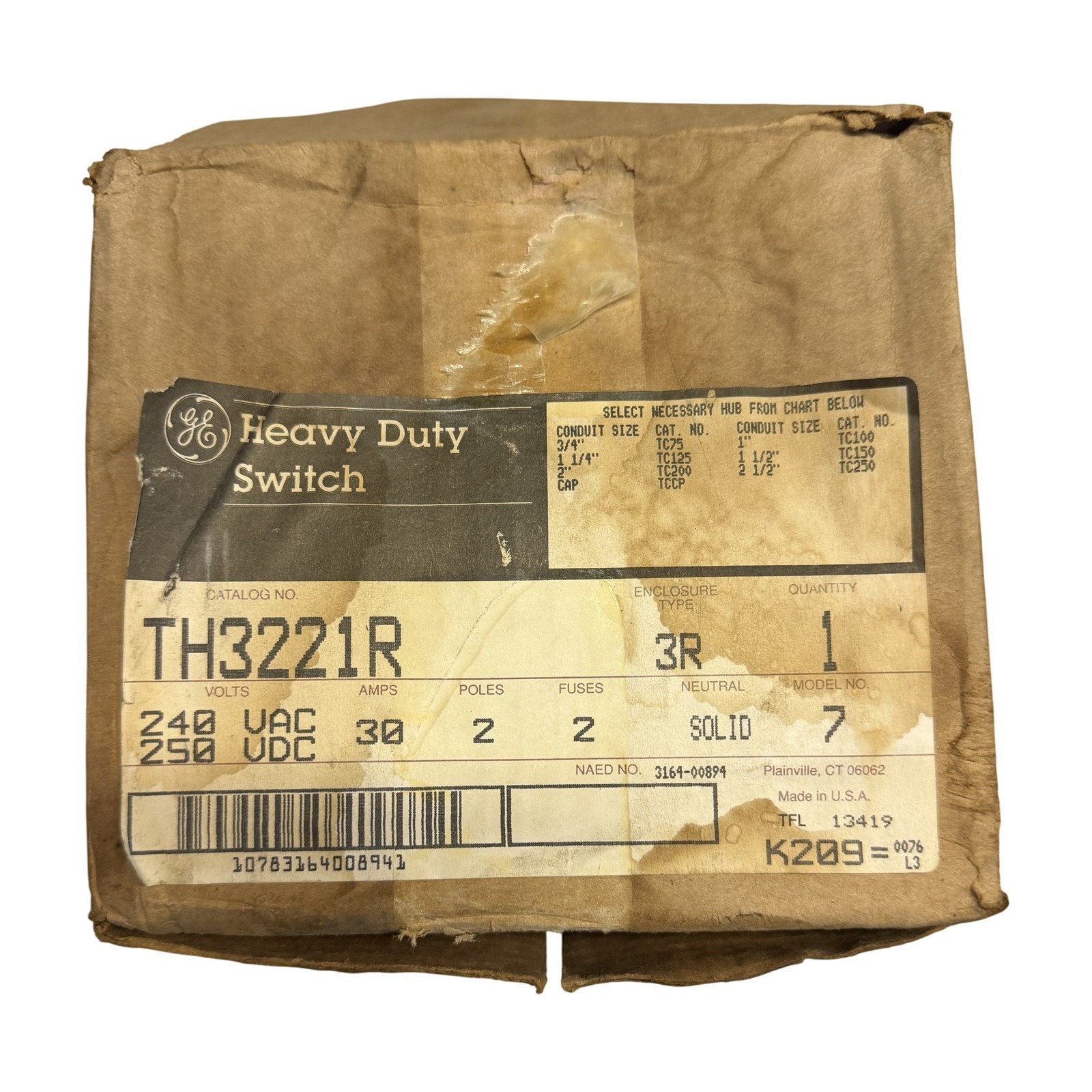

The GE TH3221R is a 30-Amp, 2-Pole Heavy Duty Safety Switch rated for 240VAC / 250VDC with a NEMA Type 3R rainproof enclosure, making it suitable for outdoor and indoor applications. This fusible disconnect switch is UL-listed and rated for use as service entrance equipment. The unit appears unused internally with original documentation tags still attached, though the original cardboard box shows significant wear and damage.

Features & Electric (GE)Model NumberTH3221RProduct TypeHeavy Duty Safety Switch / Fusible DisconnectCatalog NumberTH3221RModel / Mod7Amperage30AVoltage (AC)240 VACVoltage (DC)250 VDCNumber of Poles2Number of Fuses2NeutralSolidEnclosure TypeNEMA Type 3R (Rainproof)Max HP Rating (240V 1PH, Std Fuse)1.5 HPMax HP Rating (240V 3PH, Std Fuse)3 HPWire Range#14-6 AWG CU / #12-8 AWG ALUL ListingUL Listed Enclosed Switch No. AV257115Suitable for Service EquipmentYesManufacture LocationPlainville, CT USAColorGrayWhat's Included
  • 1x GE TH3221R Heavy Duty Safety Switch
  • Original documentation / instruction tags (attached with Class K or H fuses up to 30A. Accepts conduit hubs TC75 through TC250 for various conduit sizes (3/4 inch through 2-1/2 inch). Suitable for residential, commercial, and light industrial disconnect applications requiring a NEMA 3R rainproof enclosure. Compatible with GE replacement parts including switch base 343L630G2 and cover assembly 343L808G10.
