Eaton Power Defense | PDG22M0030TFFL | 30A | 2-Pole | 600V | 65kA@480V | MCCB For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

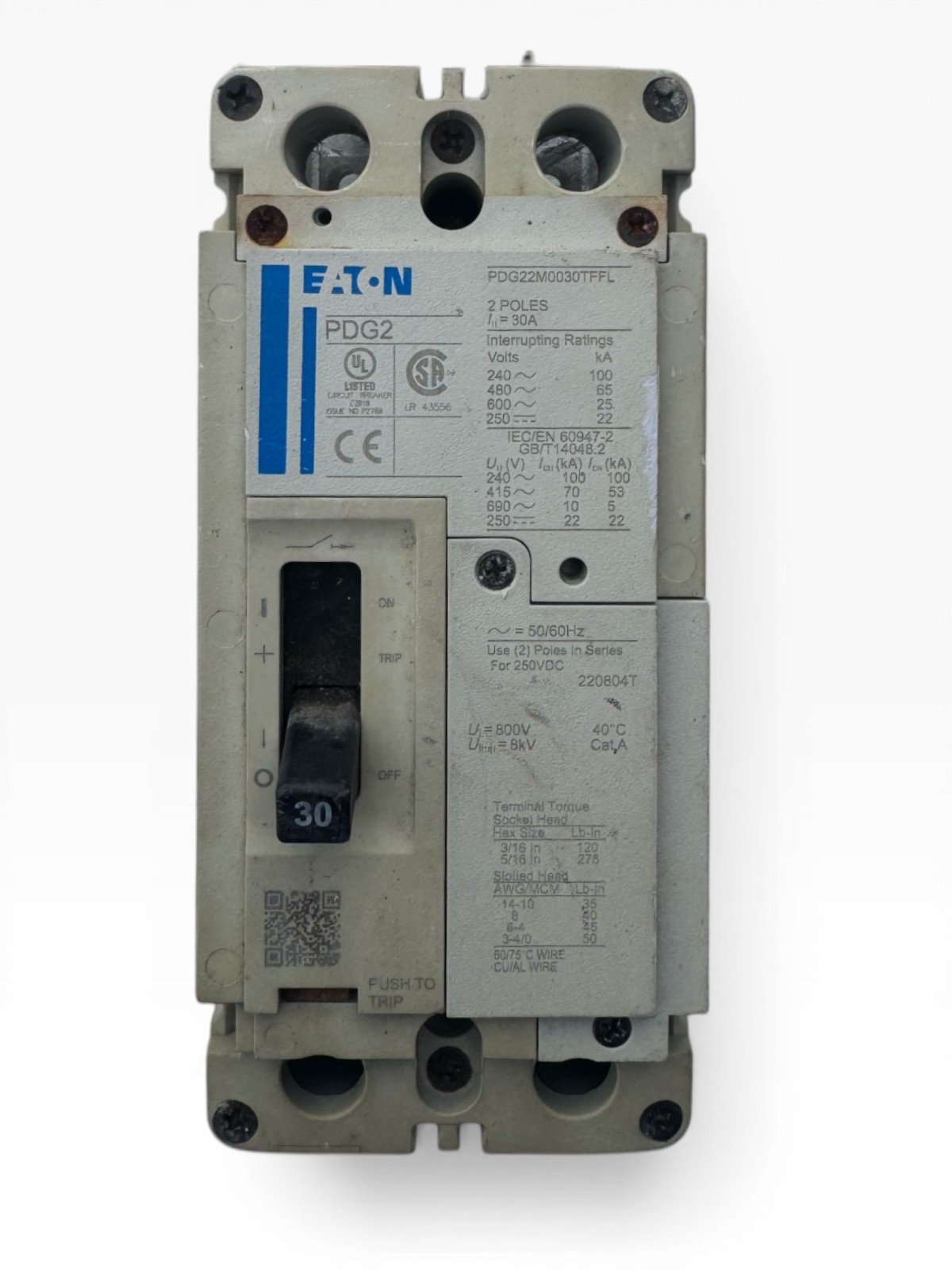

Eaton Power Defense | PDG22M0030TFFL | 30A | 2-Pole | 600V | 65kA@480V | MCCB:
$170.99

FeatureDetailed SpecificationManufacturerEatonModel NumberPDG22M0030TFFLSeriesPower Defense (Frame 2)Amperage Rating30 AmpsVoltage Rating600V AC (Max) / 250V DCNumber of Poles2-PoleInterrupting Rating65kA @ 480V / 100kA @ 240V / 35kA @ 600VTrip Unit TypeThermal-Magnetic (Fixed-Fixed)Mounting StyleBolt-On / Feed-ThruWire Size Range#14 - 1/0 AWG (Al/Cu)CertificationsUL 489, CSA, IEC 60947-2, CCC, RoHS

---

---

---

Eaton Power Expert Gateway PXG 900 - BRAND NEW & REDUCED & BEST PRICING

$3250.00

---

PDGXAC - Eaton Power Defense Switch, Pigtail Connector

$169.99

---

PDGXAC - Eaton Power Defense Switch, Pigtail Connector

$169.99

---
