Eaton Cooper Power L4B2R0A Type L Interchangeable Fuse Cutout 15.5kV 200A For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

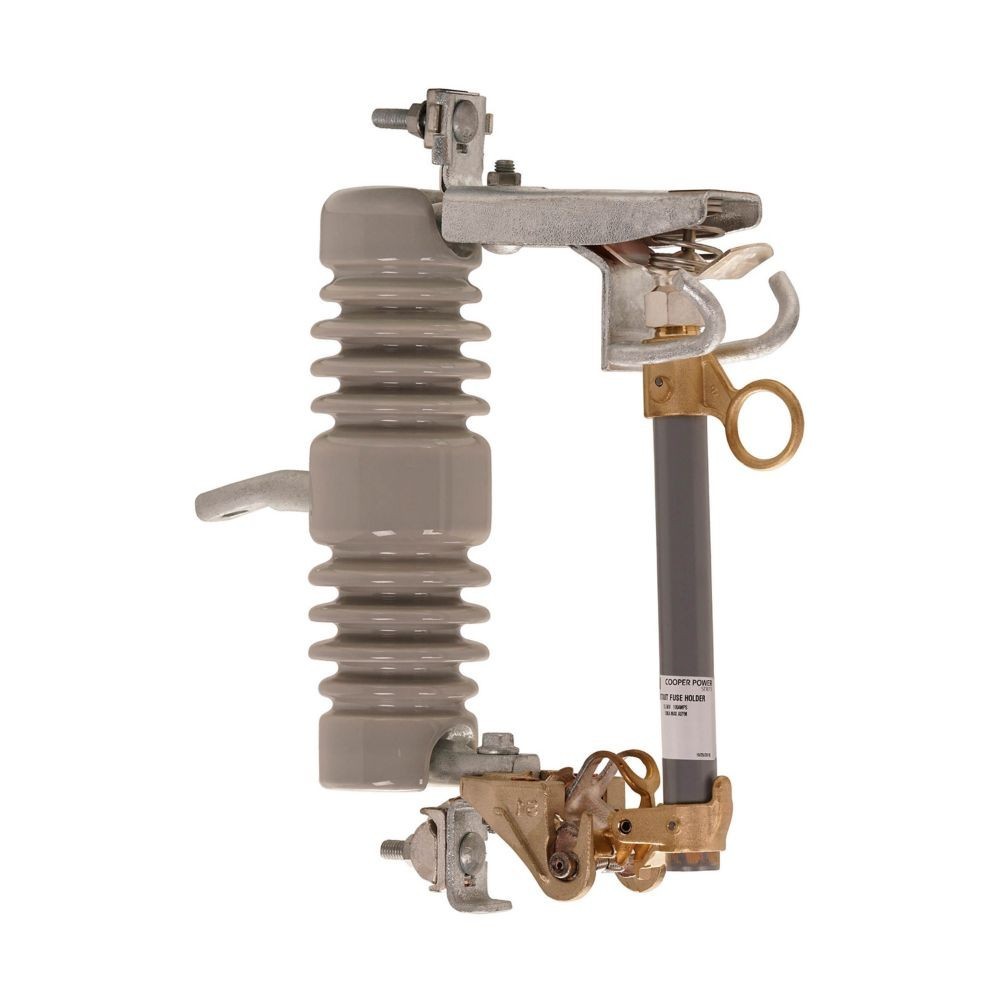

Eaton Cooper Power L4B2R0A Type L Interchangeable Fuse Cutout 15.5kV 200A:
$194.23

New Old Stock - Unused. 4 of 5 include original box and manual. One is without box but is complete and unused.General specificationsProduct NameEaton Cooper Power series L-cutoutCatalog NumberL4B2R0AUPC194006010832Product Length/Depth16.3 inProduct Height13.75 inProduct Width3.5 inProduct Weight17 lbCompliancesCSA 310-09CertificationsANSI/IEEE Std C37.41
ANSI/IEEE Std C37.42
ANSI/IEEE Std C37.40Product TypeL-cutoutAccessoriesFusing holder option200AAdditional specificationsPackagingIndividual packaging (standard)DescriptionMaterial (insulation)PorcelainTermination bottomParallel groove- bottom vertical entryElectrical RatingsAmperage Rating200 ABasic impulse level110kVInterrupting current - asymmetrical12,000AInterrupting current - symmetrical8000AVoltage rating - max15.5 kVMountingMounting TypeNo bracketTypeCutout typeL-cutout

---

---

---

EATON COOPER HX CUTOUT LOADBREAK 146961-810 100 Amp 150 KVBIL 38KV LRG QTY

$304.53

---

Eaton 4000380C14CB - Eaton Cooper Power series 38kV Bay-O-Net fuse link, Bay-O-N

$499.00

---

Eaton Cooper Power series RTE high ampere overload Bay-O-Net fuse link 4038361CB

$399.00

---
