Eaton 3BR3042L200 200A 30 Space 42 Circuit 3 Phase Main Lug Load Center NEMA 1:
$229.00

OVERVIEW

Eaton Cutler-Hammer 3BR3042L200 main lug loadcenter from the BR series. Rated 200 amps, 30 spaces and 42 circuits, three phase four wire, 208Y/120 VAC or 240 VAC, with a 25 kAIC interrupting rating and aluminum bus. NEMA 1 indoor metallic enclosure with the combination flush and surface cover and door included. As a main lug unit it serves as a subpanel to add circuits to an existing service rather than as a service entrance disconnect. Accepts Type BR one inch plug-on breakers. Assembled in the USA.

NOTE ON SPACES VERSUS CIRCUITS

This panel has 30 physical breaker spaces but is rated for 42 circuits, meaning it reaches its full circuit count using tandem breakers in the positions that accept them. If you need 42 individual full-size breaker positions, you want the larger 42-space 3BR4242L200 instead.

TESTED AND WORKING STATUS

Not tested. New old stock from a closed sign shop, never installed or energized. The carton was left factory sealed and was not opened, so the enclosure interior, bus assembly, main lugs and cover have not been inspected. Sold as untested new old 200 A main lug

Voltage: 208Y/120 VAC or 240 VAC

Phase and wire: three phase, four wire

Spaces: 30, Circuits: 42

Interrupting rating: 25 kAIC

Bus: aluminum

Enclosure: NEMA 1, metallic, G1, indoor

Enclosure dimensions: approximately 34.13 in H x 14.31 in W x 3.88 in D

Cover: combination flush and surface, door included

Breakers: Type BR one inch

Wire range: 1 AWG to 300 kcmil copper or aluminum

No feed-thru lugs

CONDITION

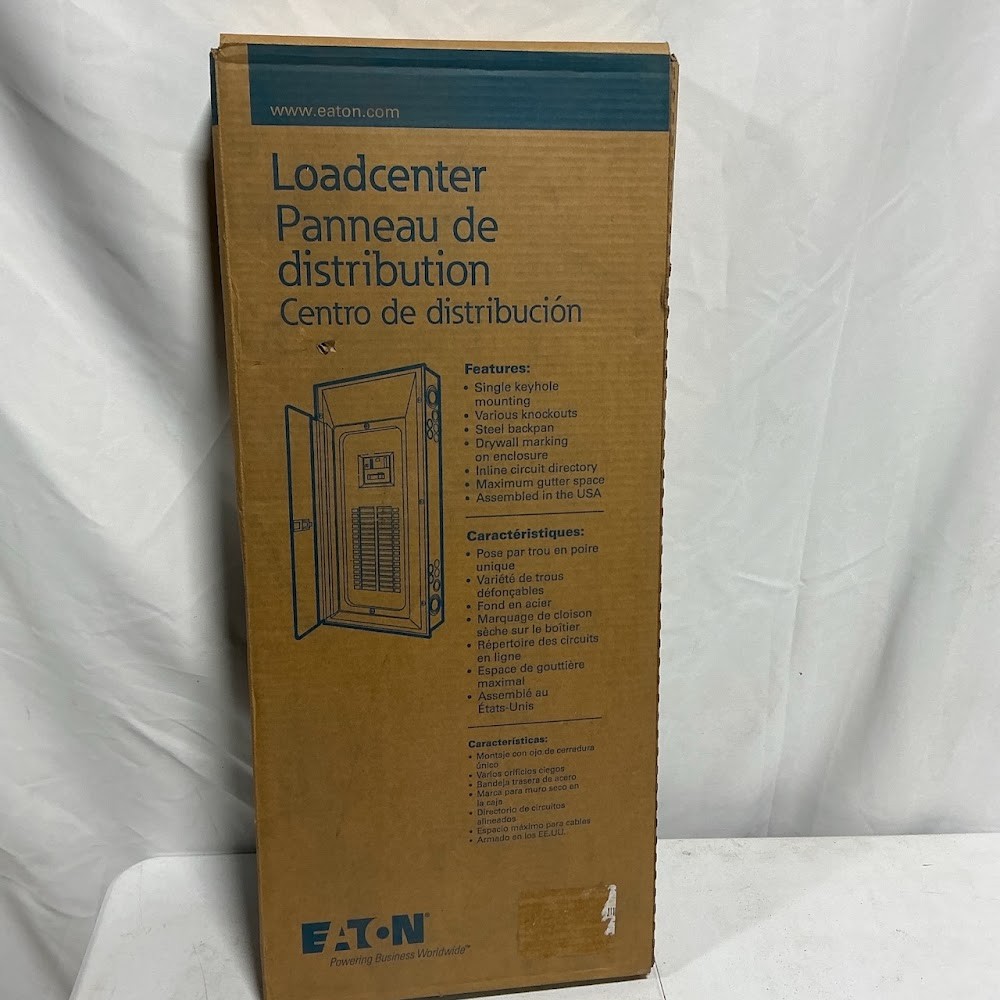

Carton is factory sealed with light handling wear and a small puncture. Contents not inspected.

COMPATIBILITY

Uses Eaton Type BR one inch plug-on breakers. Not compatible with Square D QO, Homeline, Siemens or GE breakers. Indoor use only.

WHAT IS INCLUDED

One loadcenter enclosure with interior, main lugs and combination flush and surface cover with door, per the factory packing list. No breakers included.
