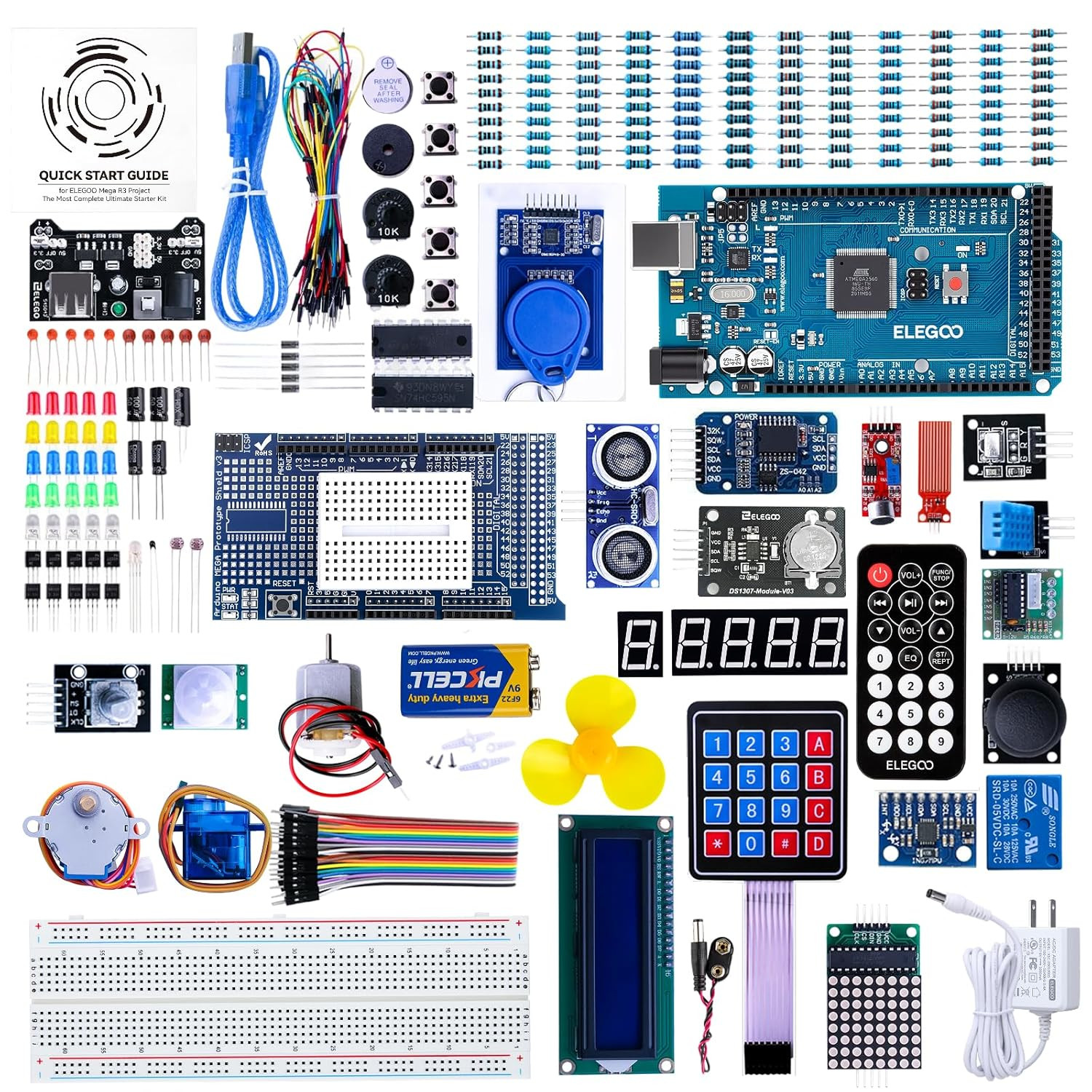

ELEGOO Mega R3 Project the Most Complete Ultimate Starter Kit with Tutorial:
$137.99

Product description ELEGOO Mega R3 The Most Complete Starter Kit

Want to learn how to work with electronics and programming but need a little help? You\'ve come to the right place!

ELEGOO MEGA 2560 Starter Kit provides an open-source electronics prototyping platform based on flexible, easy-to-use hardware and software, which evolves the user from beginner to professional level.

Our starter kit is designed to get you started quickly and easily on your path of learning electronics. Originally this pack was designed to follow the introductory tutorials with 33 creatives and fun projects on our website. But it\'s a great starter kit in general as it\'s designed for everyone even novices who has very little or no electronics and programming experience. The starter bundle contains everything you need (except tools) to take your first step on electronics journey!

Starter kit for Everyone to Learn The Science of Electronics, Programming and Robotics

Electronics is not as complicated as you imagine especially with ELEGOO MEGA 2560 Starter Kit. For advanced users like professional lab engineers, electronic major students and experienced electronics hobbyists, they can use this kit to do various kinds of tests and experiments with so many sensors available at hand.

What about novice users who don\'t have any electronics knowledge? Fear not amigo. Just follow our tutorial enclosed and step by step you will come to realize that learning electronics is more fun than you ever expected with this amazing sensor kit.

It’s a good choice and kit for your kids, friends, family members or whoever are obsessed with electronics, programming or robotics to take their first steps on electronics journey!

The Most Complete Starter Kit with High Quality Components and Tutorial

Quantity and quality are both important here in Elegoo MEGA starter kit. The most essential parts in this kit are MEGA controller board and expansion board, which is a clone with excellent product finish Compatible with electronics projects. Besides, we offer other over 60 kinds of components and sensors from small parts like LED diodes, resistors and potentiometer to big parts like LCD1602, RFID module and 830 tie-points breadboard, which meet your demands for your different projects either it is simple or complex.

Sturdy quality is definitely the most important thing to Elegoo even with so many components provided we never compromised on the quality. Instead we keep improving our product quality in our own factory and we produce the products by ourselves under high standards and strict quality control. Pins and wires on some of the parts like LCD16502 and motors have been pre-soldered which is very convenient and saves your time.

LCD1602 Display module

LCD1602 module is a display that has an LED backlight and can display two rows with up to 16 characters on each row. You can see the rectangles for each character on the display and the pixels that make up each character. The display is just white on blue and is intended for showing text.

Lining up the display with the top of the breadboard helps to identify its pins without too much counting, especially if the breadboard has its rows numbered with row 1 as the top row of the board. Do not forget, the long yellow lead that links the slider of the pot to pin 3 of the display. The \'pot\' is used to control the contrast of the display.

DC Motors and L293D Transistor

In this project you will learn how to control a small DC motor using a Mega board and a L293D transistor, which is a very useful chip. It can actually control two motors independently. We are just using half the chip in this lesson, most of the pins on the right hand side of the chip are for controlling a second motor.

L293D is quadruple high-current half-H drivers and designed to provide offerirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293D is also designed to provide offerirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V and drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.

74HC595 Shift Register and LEDs

74HC595 is a Serial to Parallel Converter which has eight outputs and three inputs that you use to feed data into it a bit at a time. This chip makes it a little slower to drive the LEDs (you can only change the LEDs about 500,000 times a second instead of 8,000,000 a second) but it\'s still really fast, way faster than humans can detect, so it\'s worth it!

74HC595 shift register is a type of chip that holds what can be thought of as eight memory locations, each of which can either be a 1 or a 0. To set each of these values on or off, we feed in the data using the \'Data\' and \'Clock\' pins of the chip.

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 2,543 4.7 out of 5 stars 16,537 4.6 out of 5 stars 4,435 4.7 out of 5 stars 3,438 4.7 out of 5 stars 5,044 4.7 out of 5 stars 3,302 Price $36.99$36.99 $44.99$44.99 $79.99$79.99 $59.99$59.99 $14.99$14.99 $22.99$22.99 Control board / UNO R3 UNO R3 MEGA NANO UNO R3 Compatibility with Arduino ✓ ✓ ✓ ✓ ✓ ✓ Projects Tutorial Included ✓ ✓ ✓ ✓ ✓ ✓ Assembly Requirement No No ✓ No ✓ ✓ Reasons to Buy Updated Version, Compatibility with Arduino IDE and STM32. Tutorial of 24 Projects, Cost-effetive Starter Kit ELEGOO ElegooKit APP; FPV Mode; Obstacle Avoidance; Line Tracking Mode Tutorial of 33 Projects, Powerful Mega R3 Control Board ATmega328 & ATmega16U2. Same configuration as the official one Extra Points; 256 KB of Flash Memory Store; Simplification and Security; Diverse Power Methods

The ELEGOO MEGA2560 complete starter kit includes over 200pcs premium components, and is compatible with Arduino kits
PDF tutorial with more than 35 lessons
LCD1602 module and GY-521 sensor module with pin header ( no need to solder by yourself)
Nice package with clear listing and surprise including a nice small box to keep the widget such as LED, IC, buttons, diodes, etc
We have always cared about the customer experience and improve the product function details
