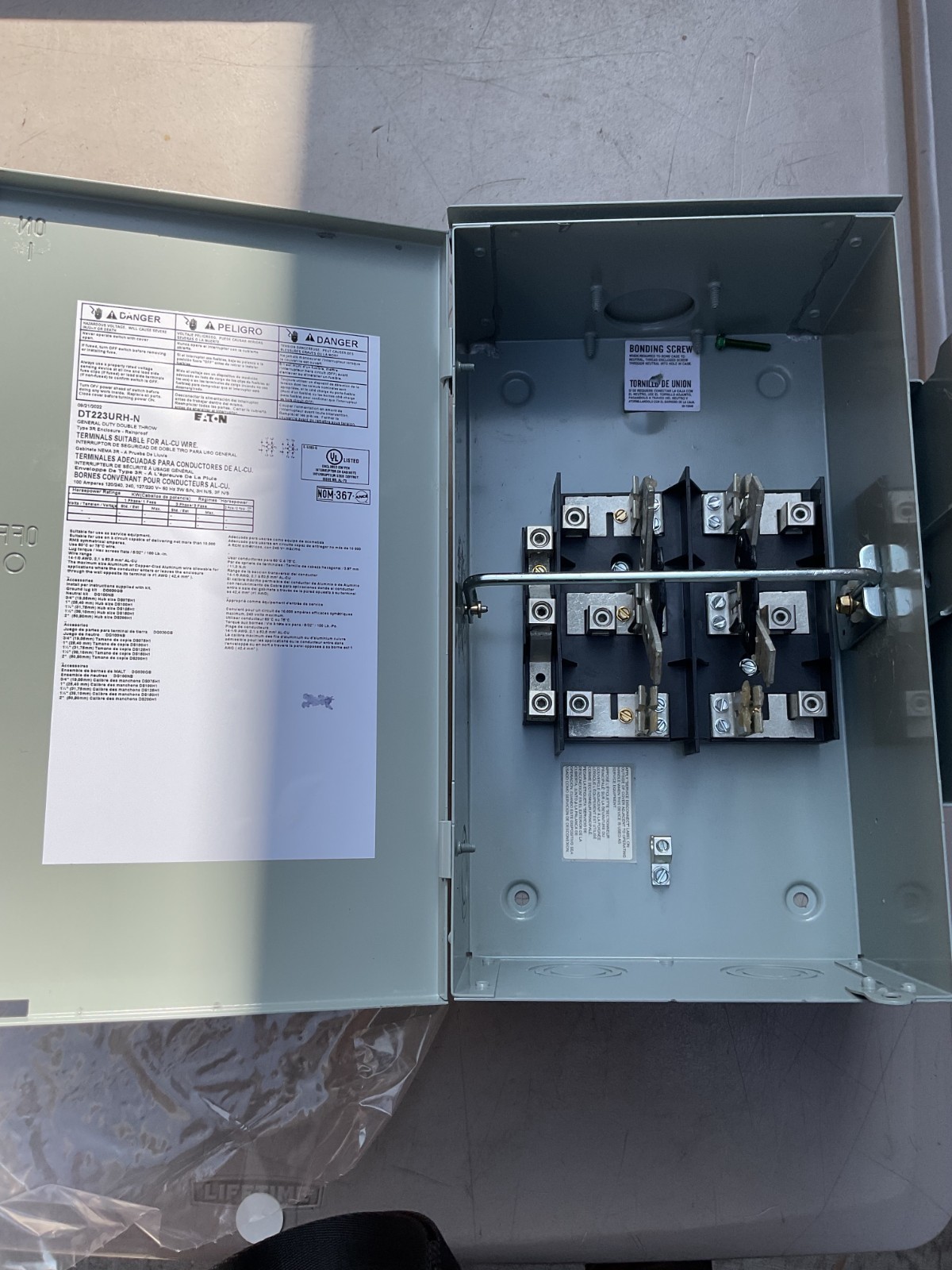

EATON - DT223URH-N 100A 240V NEMA 3 DOUBLE THROW - SAFETY SWITCH DISCONNECT:
$320.00

EATON - DT223URH-N 100A 240V NEMA 3 DOUBLE THROW - SAFETY SWITCH DISCONNECT

Built with durable construction, this safety switch is suitable for applications requiring dependable disconnect protection and manual operation.

Features:

• Genuine Eaton safety switch disconnect
• 100 Amp current rating
• 240 Volt operation
• 3 Wire configuration
• Manual disconnect operation
• Heavy-duty enclosed design
• Suitable for commercial and industrial applications
• Provides safe electrical isolation

---

---

---
