On eBay Now...EATON CUTLER HAMMER HFD3060BP10 60A 3-POLE 600V F-FRAME 65KA CIRCUIT BREAKER NEW For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

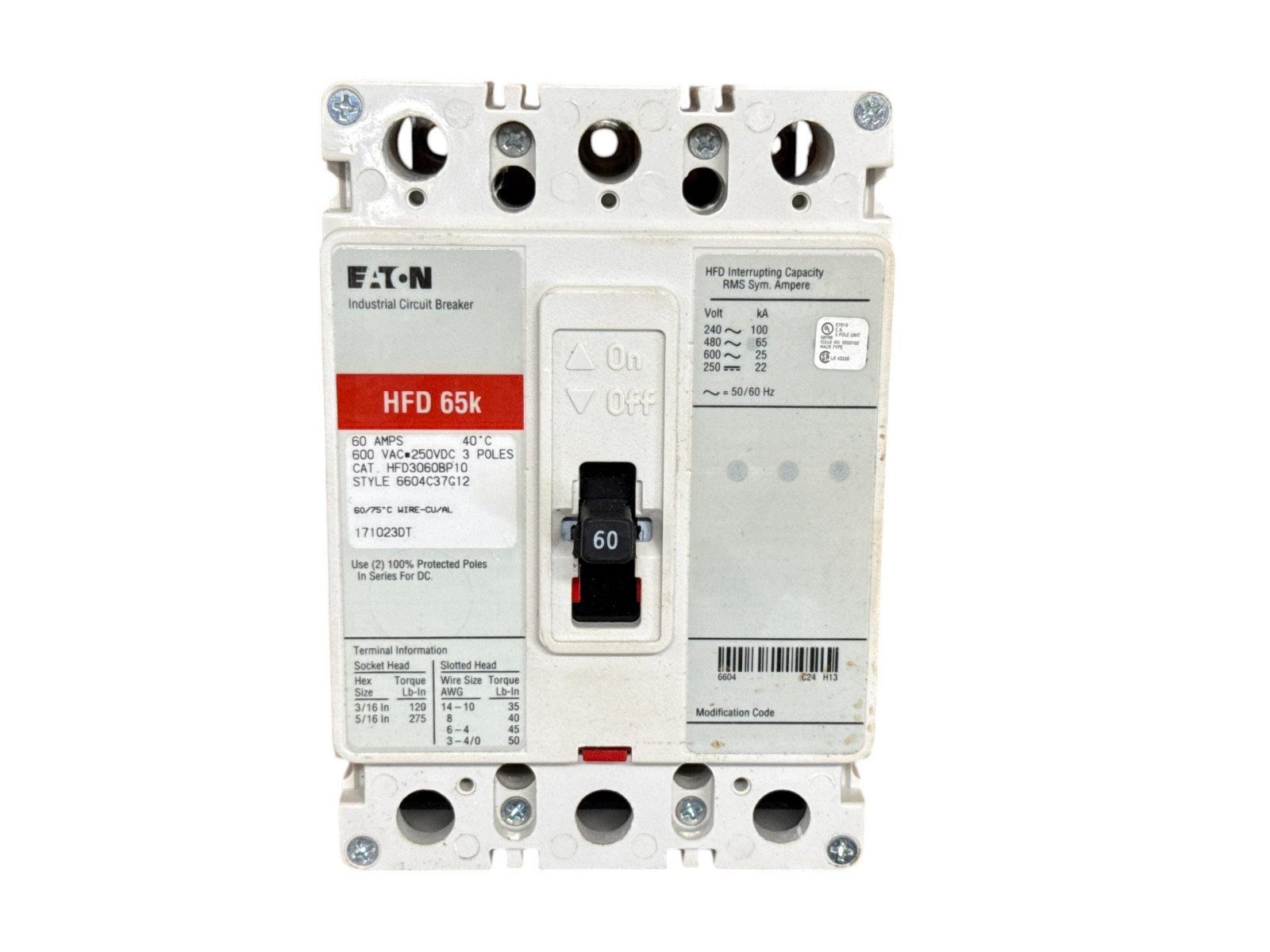

EATON CUTLER HAMMER HFD3060BP10 60A 3-POLE 600V F-FRAME 65KA CIRCUIT BREAKER NEW:
$399.77
Item Specifics:
- Brand: Eaton / Cutler-Hammer (formerly Westinghouse) — Series C.
- Part number: HFD3060BP10.
- Type: Thermal-magnetic MCCB, LI trip (Long-time / Instantaneous). Bolt-on mounting. F-frame.
- Amperage: 60A.
- Voltage: 600VAC / 250VDC maximum, 50/60 Hz.
- Poles: 3-pole.
- Phase: 3-phase.
- Interrupt rating: 100kA @ 240VAC / 65kA @ 480VAC / 25kA @ 600VAC.
- Mounting: Bolt-on. Load side lugs included.
- Trip: Fixed thermal, fixed magnetic. Non-interchangeable trip unit.
- Standards: UL Listed, CSA Certified. 40°C ambient.
- Condition: New takeout. See photos.
Warranty / Returns:
All items, unless otherwise specified, are guaranteed to be fully functional and not DOA, with 30 days to return the item. We accept returns in accordance with policies, and items must be returned per the terms of the listing purchased.
⚠️ Safety Notice: Electrical equipment should be installed by a qualified electrician in accordance with the National Electrical Code and all applicable local codes. Buyer assumes full responsibility for verifying suitability for their application.
