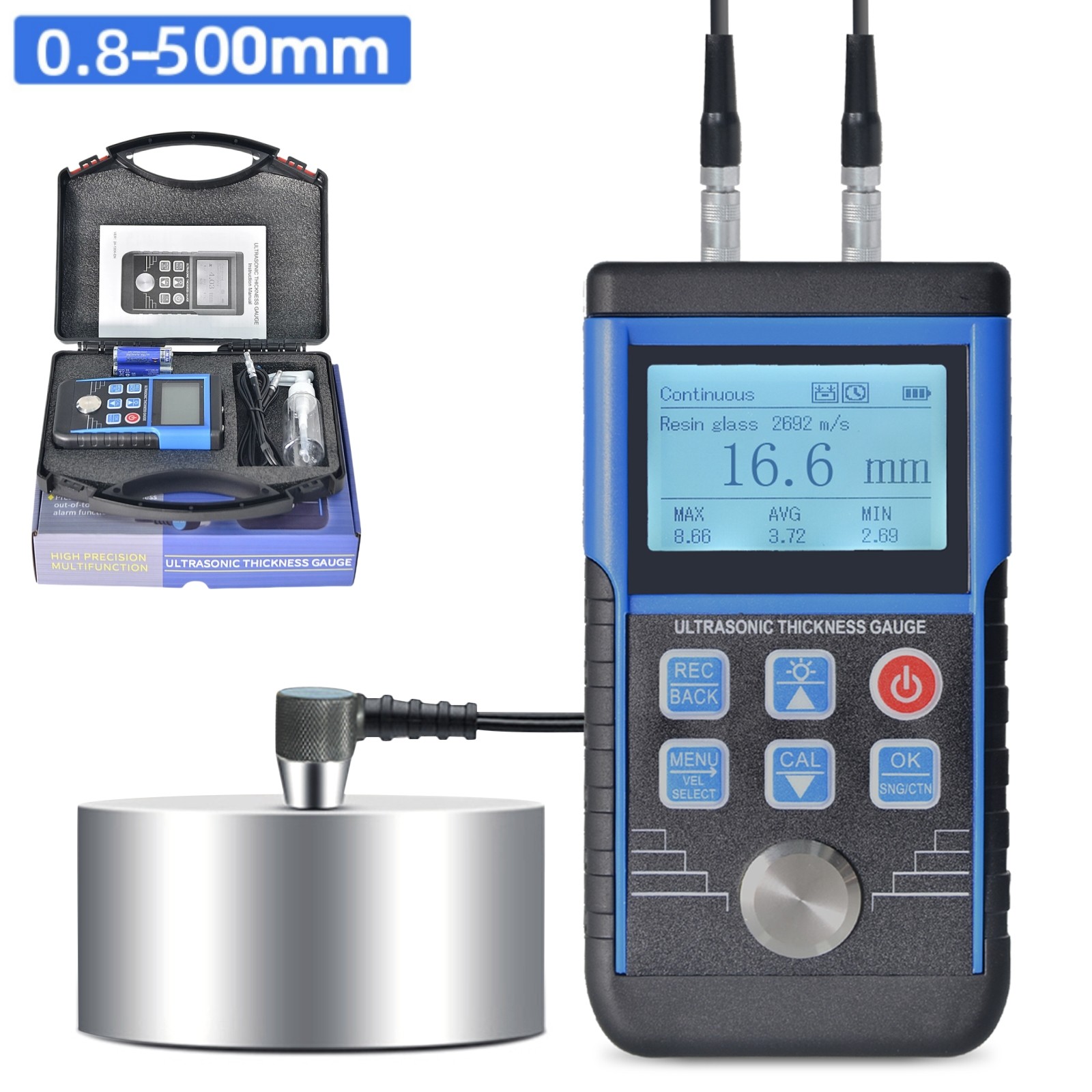

Digital Ultrasonic Thickness Gauge Meter for Metal Industrial Material 0.8-500mm:
$79.99

【 The main purpose】 This ultrasonic thickness gauge is an intelligent portable ultrasonic thickness gauge. It is controlled by a microprocessor and utilizes the principle of ultrasonic measurement to quickly and accurately measure the thickness and sonic velocity of a variety of materials.【 Accurate measurement】 : This ultrasonic thickness gauge with single-chip microprocessor technology, resolution is up to 0.01mm, stable measurement and fast response speed can be used to accurately measure various materials or parts in the field of industrial production, and it can also monitor various pipelines and pressure vessels in production equipment. It can measure the degree of thinning of various parts in time and accurately during use.Wide range of applications: metals, plastics, ceramics, T9-130S Digital Ultrasonic Thickness Gauge Meter 0.8-500mm for Metal Glass PVC Acrylic Plastic .

T9-130S Ultrasonic Thickness Gauge ,upgrade of 130d

Description:

✅【Wide Range and High Accuracy】Industrial-grade thickness gauge measuring range of 0.8mm-500mm/0.031-19.685inch（Unit switchable）, resolution of 0.01mm, accuracy of 0-10mm: ≤ ± 0.05mm, 10-99mm: ≤± (0.01 + H/200), 100-500mm: ≤ ± (0.1 + H/100) (Note: H is the thickness of the material to be measured).
✅ 【Measuring Material Types】Using the ultrasonic measuring technology, the thickness gauge can carry out unilateral and non-destructive measurements, and can measure the thickness of a wide range of materials, such as: aluminum, steel, stainless steel, brass, copper, iron, ceramics, PVC, quartz, vulcanized rubber, plexiglas, etc.
✅ 【Data Processing& Storage】Clear backlit screen display, each measurement at the same time display real-time, maximum, minimum, average value, and has a data storage function, up to 100 groups of data can be stored, single measurement and continuous measurement mode can meet the needs of rapid measurement and batch testing.
✅ 【Adjustable Velocity】The thickness gauge provides 22 kinds of known materials to choose from, and also supports customized velocity detection of other materials, the velocity adjustable interval of 1000-9999m/s. Velocity inversion measurement can be used to measure the thickness of unknown materials.
✅ 【Calibration Function】The front of the body is equipped with a calibration steel block with a thickness of 4.00mm, which is automatically calibrated with the CAL function button of the thickness gauge to ensure the accuracy and reliability of each measurement.
✅ 【Intelligent Alarm Function】Thickness upper limit and lower limit alarms can be set. When the thickness of the measured object is out of the range, the instrument will emit a beep sound, in batch testing or checking internal corrosion, in order to quickly locate the failure point or anomalies.
✅ 【Kit List and Note】You will get 1x digital ultrasonic thickness gauge, 1x 5MHz probe, 3x batteries, 1x operation manual, 1x empty bottle. Note: The coupling gel is Not included. Not suitable for measuring cast iron materials / automotive coatings. range: 0.8-500mm/0.031-19.685inch
◆ Operating frequency: 5MHz
◆ Lower limit of pipe measurement: 20x3mm
◆ Resolution: 0.01mm (1.00-99.99mm), 0.1mm (100-350mm)
◆ Accuracy: H<10mm: ±0.05mm, 10-99mm: ≤± 0.01+H/200 mm, >100mm: ≤± 0.1+H/100 mm
(H thickness of the material to be measured)
◆ Power supply Battery specification: 3x1.5V AA alkaline batteries Lasts approx. 20 hours
◆ Built-in 11 sets of commonly used material sound velocity values for users to select and use
◆ Customized and adjustable sound velocity function, adjustable sound velocity range: 1000~9999m/s
◆ 4mm self-calibration function
◆ LCD backlight can be selected to turn the function on or off
◆ MAX/MIN/AVG display for quick analysis
◆ Operating temperature 0℃~40℃ Probe 0℃~60℃
◆ Net weight of the host: 153g (incl. protective cover, but not battery)
◆ Ultrasonic thickness gauge host size: 72x135x36mm
Packing list:
T9-130SUltrasonic thickness gauge *1
Probe *1
Hard-shell PP plastic case *1
Empty bottle * 1(The coupling gel is Not included )
Manual *1
Product Parameter:ModelT9-130SMeasuring Range0.8~500mm/ 0.03in ~19.69inResolution0.01mm/0.1mmStandard Probe5pφ10 1pcs Operating Temperature:0~40℃Pipe Lower LimitФ20x3mm(Steel)Accuracy<10mm: ≤±0.05mm10-99mm: ≤±(0.01+H/200)100-350mm: ≤± (0.1+H/100)Velocity RangePreset 21 Common Sound Speed Quick Selection Function
Manually Adjust the Velocity Mode:1000~9999m/SMeasuring Velocity✔Customize Velocity✔Preset Thickness Alarm✔Self-calibration Function✔Data Storage Function100 StorageMax/Min/Avg Data Display✔Measurement ModeContinuous/ SingleLcd DisplayDot Matrix Backlit ScreenShutdown SettingManual Shutdown/Automatic Delay Shutdown Setting FunctionPower Supply Battery3pcs*1.5vaa BatteryPackaging StylePP Tool Box usContact usPayment
