Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA For Sale

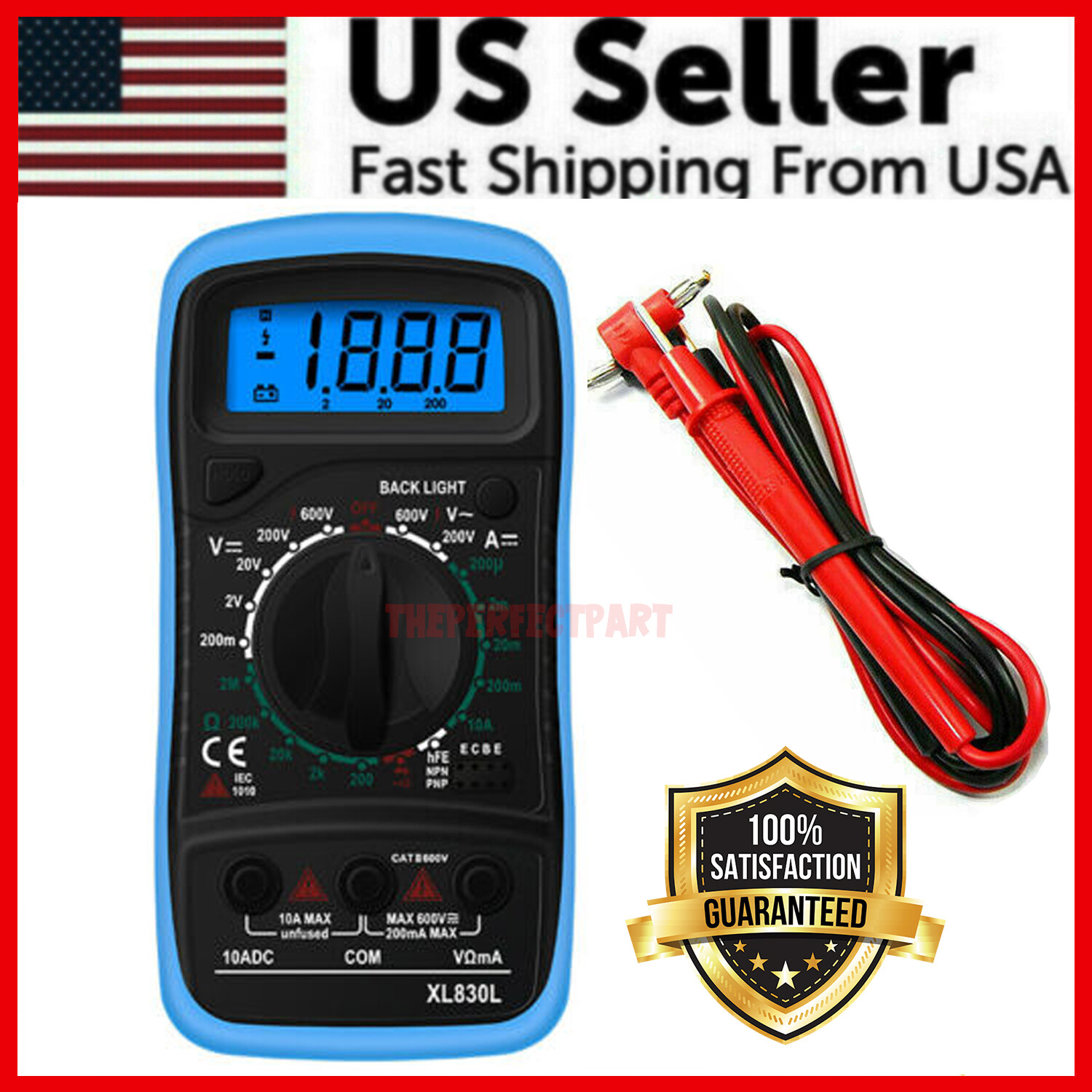

Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA


Buy Now

Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA:
$8.55


Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USAProduct Details:

This digital multimeterhas all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.

Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor

Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display

Probes



DC Voltage Modes:

200mV (100µV resolution)

2V (1mV resolution)

20V (10mV resolution)

200V (100mV resolution)

600V (1V resolution)


DC Current Modes:

200µA (0.1µA resolution)

2mA (1µA resolution)

20mA (10µA resolution)

200mA (100µA resolution)

10A (10mA resolution)


AC Voltage Modes:

200V (100mV resolution)

600V (1V resolution)


Continuity Test:

If continuity exists a built in buzzer will sound


Diode Test:

Show the approximate forward voltage drop of the diode


Resistance Test:

200Ω (0.1Ω resolution)

2kΩ (1Ω resolution)

20kΩ (10Ω resolution)

200kΩ (100Ω resolution)

2mΩ (1kΩ resolution)


Transistor hFE Test:

NPN & PNP 0-1000 3V 10µA


Additional Features:

Data hold button locks displayed value

Back-light button illuminates the display

Kickstand


9V Battery - Not Included


Package Includes:

Multimeter

Probe Cables

Instruction Manual




Extra Information:Bring back the original brand new look!
  • This is a NEW part.
This item is BRAND NEW!
  • Save MONEY and your Device using the best replacement part available.
  • This Assembly ships with a protective foam wrap, along with a protective plastic toprevent any scratches.
  • This item is very carefully packaged

Payment Information:
  • We Accept PayPal
  • We Accept Credit Card via PayPal
Shipping Information:
  • We provide Same DayFREE SHIPPINGdomestically within the U.S.A
  • USPS First Class (3-5 business days)& USPS First-Class International (14 days with tracking)(We do ship to APO/FPO)
  • We reserve the right to charge additional shipping fee for reship items due to wrong shipping address provided during checkout.
  • All orders before5PM ESTwill ship out same day!, Monday - Friday
  • Ships Same Day Today!
Refund & Return Policy:
  • We offer a 30 day return policy on all items purchased from us.
  • Please contact us within 30 days after receipt of the item for a return.
  • Do not ship the item back to us without contacting us first.
  • Return shipping is responsibility of buyer.

-We thank you so much for looking! If you have any questions or concerns, please do not hesitate to message us. Have a great day!
