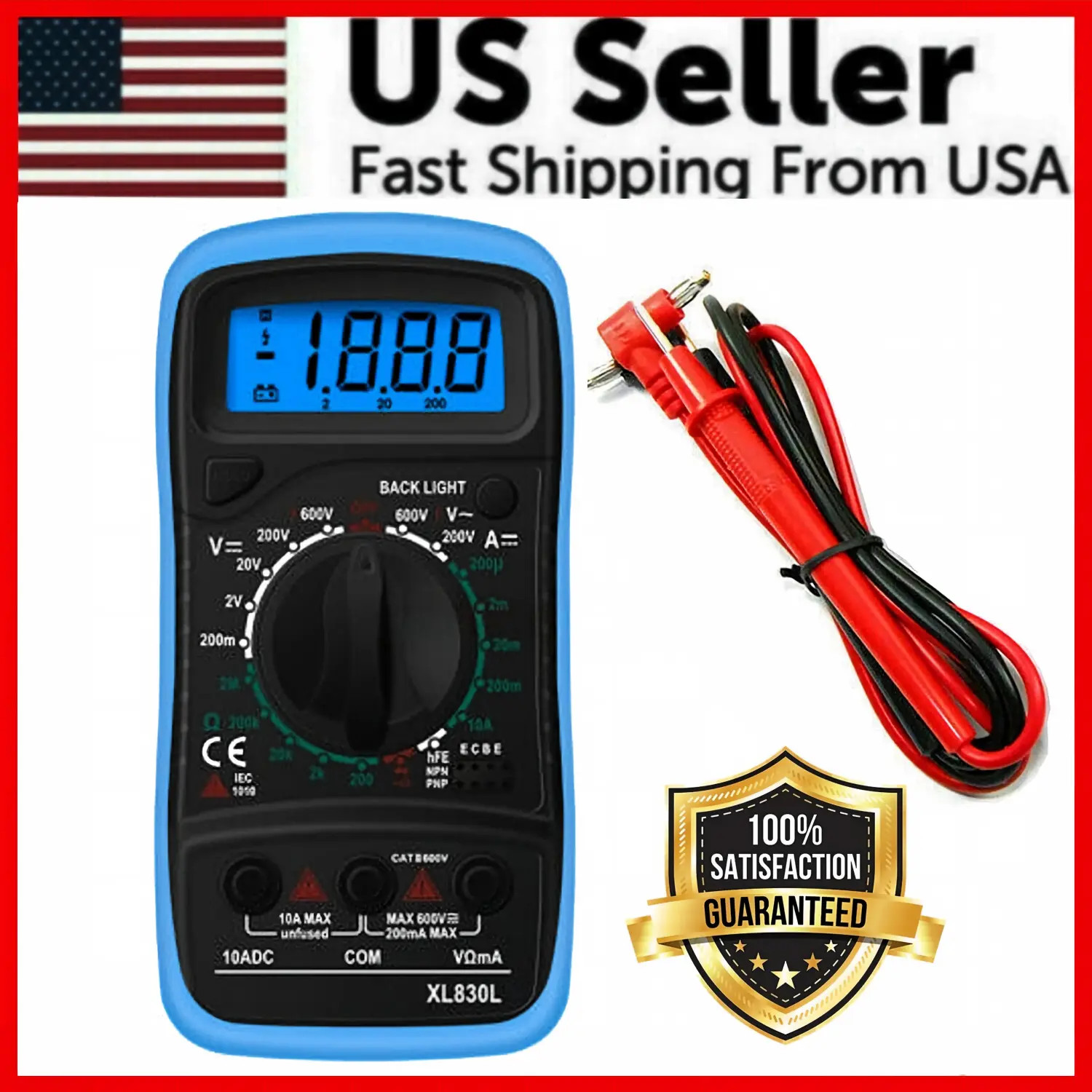

Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA:
$9.55
Product Details:This digital multimeter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.
Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor
Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display
Probes
DC Voltage Modes:
200mV (100µV resolution)
2V (1mV resolution)
20V (10mV resolution)
200V (100mV resolution)
600V (1V resolution)
DC Current Modes:
200µA (0.1µA resolution)
2mA (1µA resolution)
20mA (10µA resolution)
200mA (100µA resolution)
10A (10mA resolution)
AC Voltage Modes:
200V (100mV resolution)
600V (1V resolution)
Continuity Test:
If continuity exists a built in buzzer will sound
Diode Test:
Show the approximate forward voltage drop of the diode
Resistance Test:
200Ω (0.1Ω resolution)
2kΩ (1Ω resolution)
20kΩ (10Ω resolution)
200kΩ (100Ω resolution)
2mΩ (1kΩ resolution)
Transistor hFE Test:
NPN & PNP 0-1000 3V 10µA
Additional Features:
Data hold button locks displayed value
Back-light button illuminates the display
Kickstand
9V Battery - Not Included
Package Includes:
Multimeter
Probe Cables
Instruction Manual
Extra Information: Bring back the original brand new look!- This is a NEW part.
- Save MONEY and your Device using the best replacement part available.
- This Assembly ships with a protective foam wrap, along with a protective plastic to prevent any scratches.
- This item is very carefully packaged
- We provide Same Day FREE SHIPPING domestically within the U.S.A
- We reserve the right to charge additional shipping fee for reship items due to wrong shipping address provided during checkout.
- All orders before 5PM EST will ship out same day!, Monday - Friday
- Ships Same Day Today!
- We offer a 30 day return policy on all items purchased from us.
- Please contact us within 30 days after receipt of the item for a return.
- Do not ship the item back to us without contacting us first.
- Return shipping is responsibility of buyer.
