Dental Electric Suction Unit System Vacuum Pump Semi-Dry Type DE001 /DE101 US For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Dental Electric Suction Unit System Vacuum Pump Semi-Dry Type DE001 /DE101 US:
$719.99

DE101 600L/min

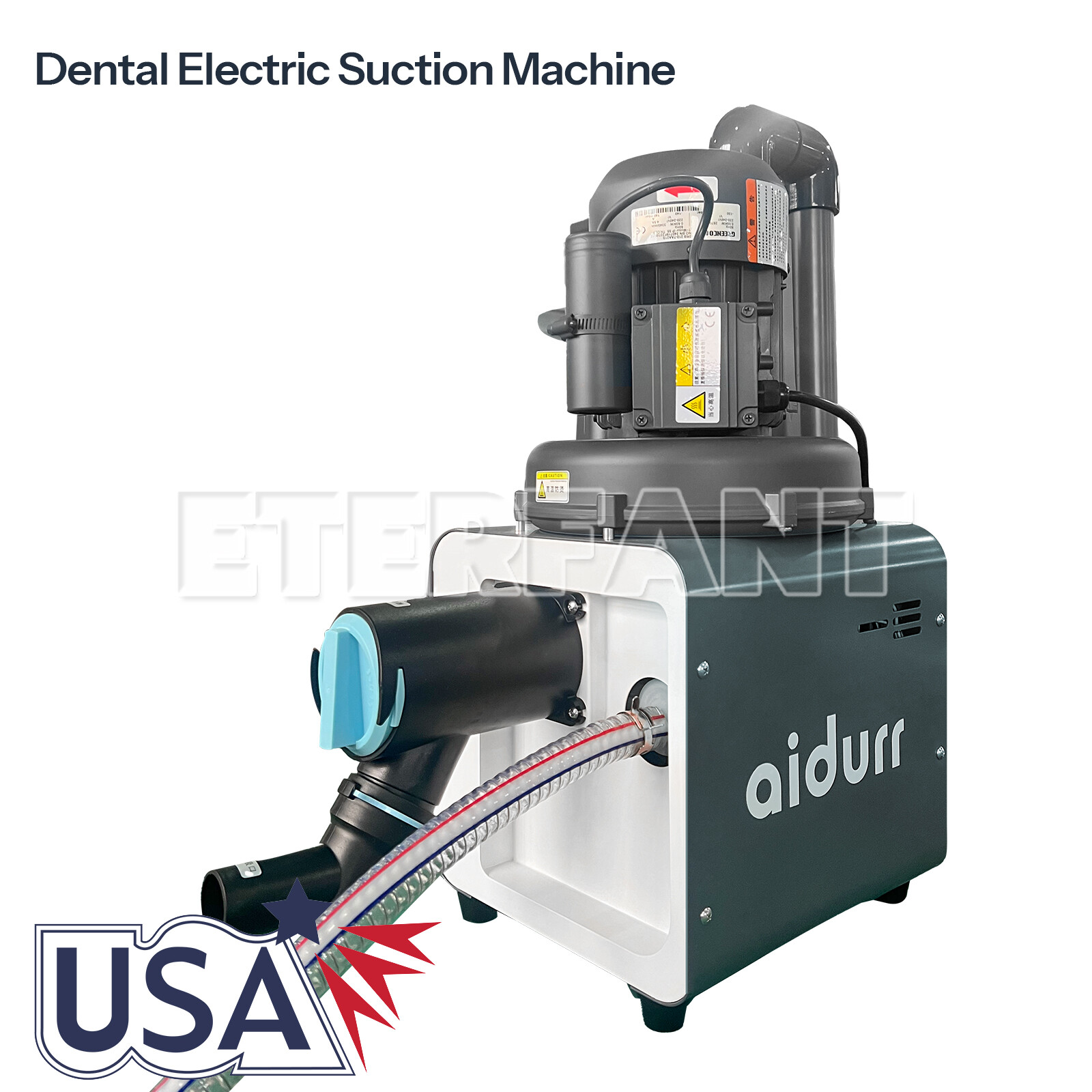

ETERFANT Dental Electric Suction Machine Vacuum System DE101 600L/min, Vacuum Pump, Variable Frequency Suction Machine, Semi-Dry Type, Support 1-2 PCS Dental Chairs
Working Principle:
The system automates fluid handling by connecting dental treatment units to a suction unit. Simply remove the suction device from the dental instrument holder, and the system automatically activates, drawing contaminants (such as oral secretions and blood) into a filter. The filter efficiently separates solids from liquids, ensuring clean air recirculation and preventing machine corrosion.Key Features:
- Instant High-Efficiency Suction: Air ring pump for immediate high-volume suction, boosting efficiency with a max vacuum of -12KPa.
- Support 1-2 Dental Chairs: ≥600L/min flow rate supports 1-2 dental chairs simultaneously, meeting the needs of multiple patients.
- Integrated Wet Suction System: Water-gas separation and active liquid-gas separator prevent liquid backflow, keeping the system clean and efficient.
- Durable Materials: Made of electrochemical corrosion-resistant aluminum alloy or high-strength anti-corrosion plastic for lasting performance.
- Frequency Conversion Stability: Uses frequency conversion technology with PID control algorithms for stable negative pressure output, energy savings, and better treatment.
- Precision Sensing: Built-in high-precision pressure sensors provide constant negative pressure for workstations, ensuring precise treatment.
- Intelligent Drainage Design: Built-in drainage diaphragm valve prevents wastewater backflow into the suction pump, keeping the system clean and reducing maintenance.
- Quiet Operation: ≤55dB noise level creates a quiet and comfortable treatment environment for patients and doctors.Function Description:
Filter: Collects and separates solid particles, as well as fluids, facilitating disposal and environmental protection.
Note: please clean filter weekly.Ring Blower: Provides the negative pressure necessary for dental procedures.Air-Water Separator: Utilizes negative pressure to transfer wastewater to a separator, where it splits from air, enabling simultaneous pumping in and out.Parameters:
Model No. : DE-101
Number of Dental Chairs Supported: 1-2
Number of Vacuum Pumps: 1
Power: 550 W
Vacuum: -12KPa
Pump Flow: 600 L/min
Noise Level: 55 dB
Control System: Automatic Control
Power Supply: 110 V, 60 Hz
Net Weight: 17 KG
Dimensions: 58 x 48 x 26cmPackage Contents:
1 x Suction Unit
1 x ID Φ40 Suction Hose or ID Φ50 Suction Hose
1 x ID Vent Hose Φ50 Tubes
1 x ID 20mm Tube(1.5m)
1 x PU Hose Φ8(1.5m)
1 x 450L/min

Operating principle: Connect the suction unit with dental treatment unit, take up saliva ejector from clip-on instrument holder of dental treatment unit, and the suction unit will start automatically to suck foreign objects attached with germina (such as oral secretion and dirty blood) into filter, the filter will separate solid particles(such as teeth fragments, silver amalgam particles) from dirty blood and oral secretion(please clean solid particles inside the filter regularly).The filtered dirty blood and oral secretion will be sucked into drain
bottle, the air and water separator will separate the air from dirty blood and oral secretion to ensure the air offered for ring blower is clean and prevent the impellers from corrosive damage.Feature：
1.Air ring suction pump, can instantly produce high suction flow in line with dental standards quantity, without waiting time; Maximum vacuum ：-12KPa；
2.High suction flow: flow ≥450 L/min, can support 1 dental chairs;
3. Integrated combined wet pumping structure, equipped with water-gas separation and active gas-liquid separator;
4.The shell and parts of the whole machine are made of electrochemical anticorrosive coating aluminum alloy or high strength anticorrosive plastic, prolong the service life of the machine;
5.Frequency conversion technology, and cooperate with PID algorithm control system, so that the negative pressure stable output；
6.High precision pressure sensor for the workstation to provide a constant negative pressure value;
7.Built-in drainage diaphragm valve, prevent wastewater backfilling suction pump;
8.Noise level: ≤52dBFilter:mainly used to collect and separate solid particles, bloods and secretions, then be more convenient for centralized processing and protect environment.
Ring Blower: mainly offer negative pressure for dental treatment.
Air and water separator: ring blower offers negative pressure to pump drainage water into air and water separator, then drainage water and air will be separated individually, and achieve function of pumping in and out at same time.Note: please clean filter weekly.Specifications:
Model No. : DE-001
Number of dental chairs supported: 1
Number of vacuum pumps: 1
Power: 400W
Vacuum: -12KPa
Pump Flow: 450L/min
Noise: 52dB
Control system: automatic control
Volt./Hz: 110V, 60Hz
Net Weight: 17KG
Dimensions: 58 x 48 x 26cmPackage With:
Suction Unit *1
ID Φ40 Suction Hose or ID Φ50 Suction Hose *1
ID Vent Hose Φ50 Tubes *1
ID 20mm Tube(1.5m) *1
PU Hose Φ8(1.5m) *1
Operation Manual
