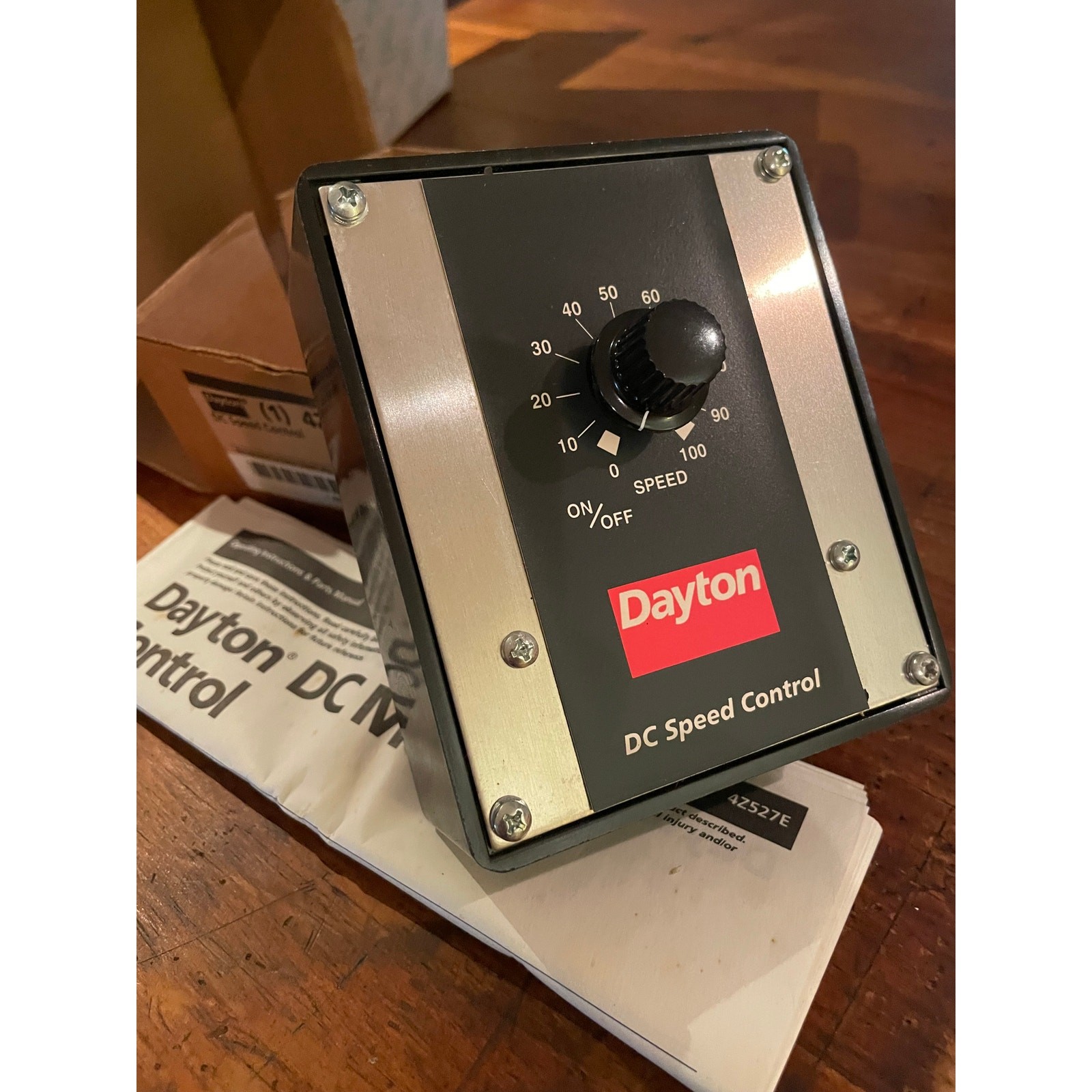

Dayton DC Motor Control 4Z527E For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Dayton DC Motor Control 4Z527E:
$375.00

Dayton DC Motor Control Condition:
New with Box and Original Paperwork
Brand:
Dayton
Model:
4Z527E
PH:
1
Hz:
50|60
Input Volts:
115v AC
Input Amps:
3A
Output Volts:
90VDC
HP:
1/50 - 1/6

---

---

---

Dayton 4Z527 Dc Speed Control, Scr, Enclosed, Nema 1, 2A Max Current, 0 To

$150.99

---

Dayton 2M191 Universal Ac/Dc Mtr, 1Hp, 10, 000 Rpm, 115V

$395.99

---

Dayton 2M145 Universal Ac/Dc Mtr, 1/2Hp, 10, 000Rpm, 115V

$277.99

---
