DEHN earthing/short-circuiting cable EKV3 + 1 95 G VA3926U incl. connection elements For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

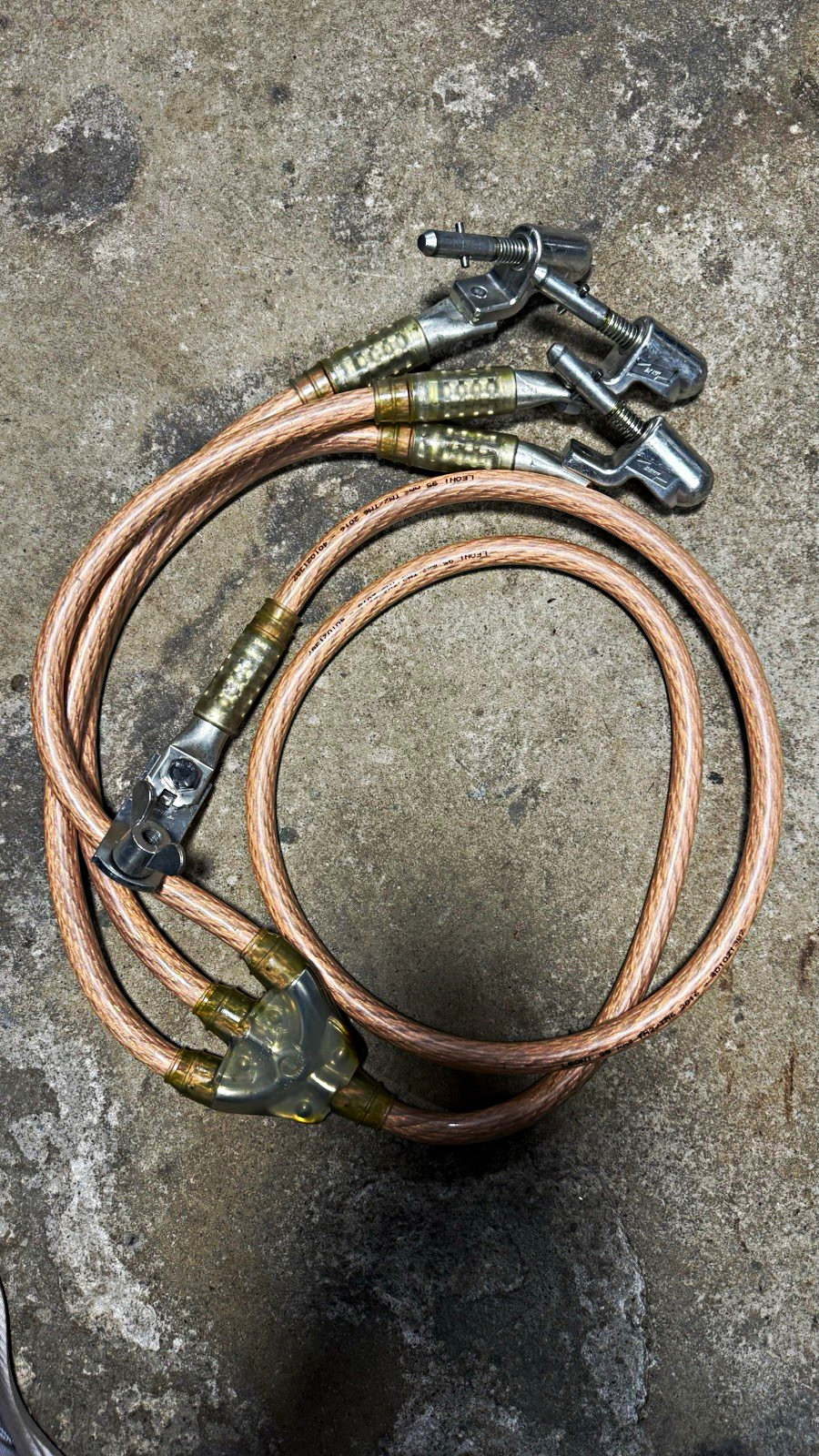

DEHN earthing/short-circuiting cable EKV3 + 1 95 G VA3926U incl. connection elements:
$626.01

DEHN Erdungs-/ Kurzschließseil EKV3+1 95 G VA3926U inklusive Anschlusselemente
nach DIN VDE 0683-100 (EN/IEC 61230)EAN: 4013364165403Maximaler Kurzschlussstrom / -dauer: 26,5 kA / 0,5 s - 2,5
Seilquerschnitt Phasenseite: 95 mm²
Seilquerschnitt Erdseite: 95 mm²
Länge Phasenseil a: 600 mm
Länge Phasenseil b: 600 mm
Länge Phasenseil c: 600 mm
Länge Erdseil d: 1800 mmAnschlusselemente phasenseitig:
Kugelkopfhaube 20 mm
Anschlusselemente erdseitig:
Erdanschlussstück mit Flügelmutter M12

---

---

---

Dehn Two-Pole Earthing/Short-Circuiting Cable 120mm² with 772331 Ball Head Caps

$699.99

---
