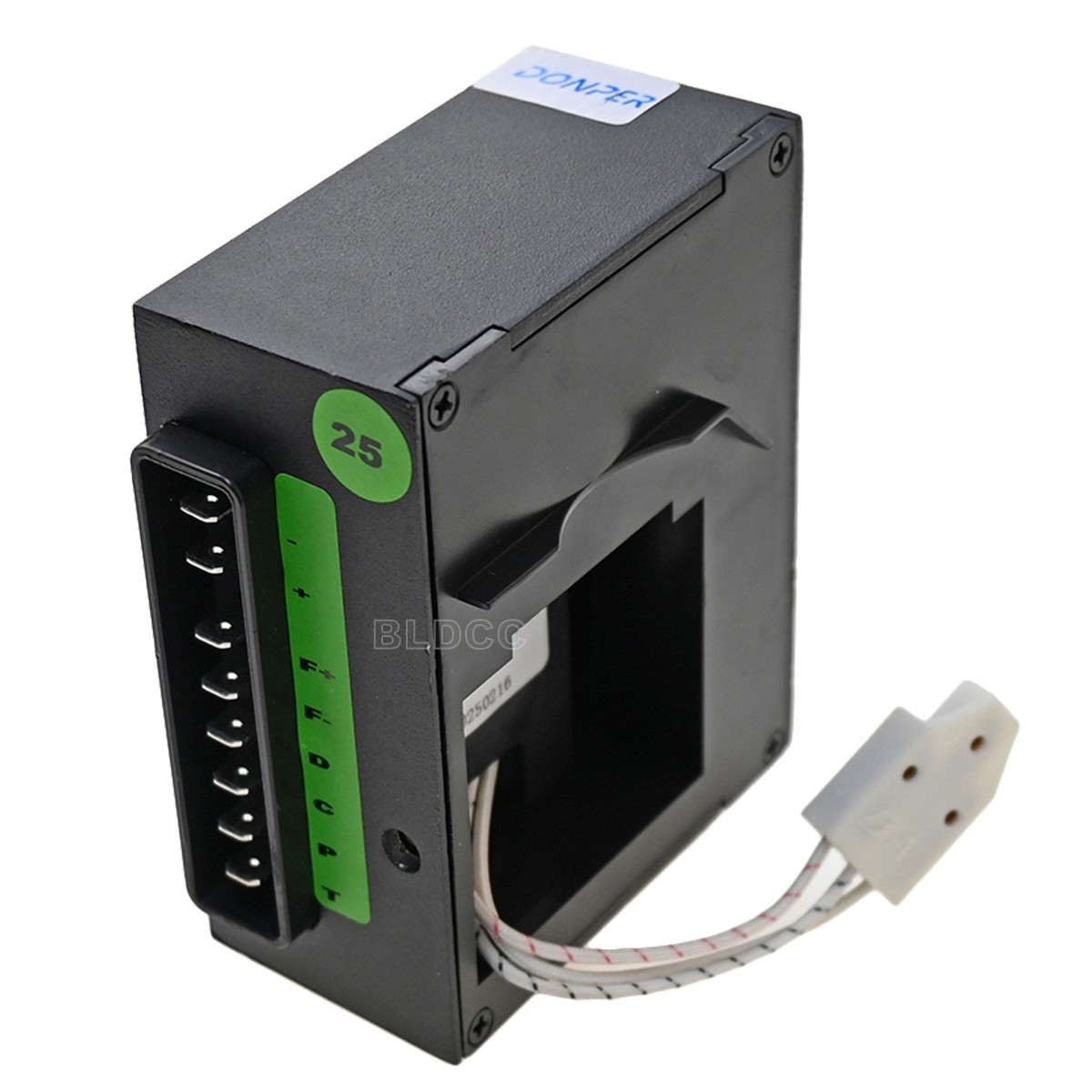

DC 12V 24V Electronic Start Unit Controller DZL25-L/DZL35-L Compressor Driver AT For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

DC 12V 24V Electronic Start Unit Controller DZL25-L/DZL35-L Compressor Driver AT:
$49.99

DC 12V 24V Electronic Start Unit Controller DZL25-L/DZL35-L Compressor DriverATTENTION:If the controller is not fitting or not working after you received it, pls come and contact us via Message first, donot open a return or a case directly, we will take the full responsibility and provide free return for you without any conditions!Package Included:1PCS DONPER DZL25 / DZL35 ControllerAT YOUR OPTION.Note: Pls check carefully and choose the Correct Mode as you need!DONPER DZL25 Controller
Product Parameters:

-Brand:DONPER

-Model Number: DB-BOOST-DC12/24V-C2

-Input: DC 12V/24V (Max 35V)

-Input Voltage Range: DC 9.6V~DC 35V

-Compressor Speed Range: 2000~3500RPM

-VER: DZL25-L

-Input Power Limit: 120W

-Controller Temperature Protection Limit: 85°C

-Net Weight:380g

-Product Size:105*91*45mm(L*W*H)

-Package Weight:440g

-Package Size: 140*120*63mm(L*W*H)

Product Features:

● Suitable for controlling DC compressors powered by 12V or 24V DC power supplies;
● Applicable to 40–150L DC refrigerators, solar-powered DC refrigerators, and freezers;
● Full aluminum housing for easy installation and excellent heat dissipation;
● Automatically detects and switches between DC12V and DC24V power systems;

Important Notes:

* This controllerCANNOTdrive all type DC compressors, we donot know the exact modes it can drive,If you’re not sure whether it’s compatible with your compressor, please contact us before placing an order.

*It has been tested to work properly with Secop (formerly Danfoss) BD35F and BD80Fcompressors,for otherSecopModels we donot know whether it\'s fitting or not, buyers pls pay attention to this pointbefore purchasing.

*It cannot drive some other common brands in the market, such as QDZH25G, ZH25G, etc.

It can drive QDZH35G, ZH35G and above models.

* Please double-check whether your original driver is truly faulty before purchasing. The issue may lie in other circuit components or with the compressor itself.

*If this controller is not fitting or not working after you received it, pls come and contact us via Message first, donot open a return or a case directly, we will take the full responsibility and provide free return for you without any conditions!

DONPER DZL35 Controller
Product Parameters:

-Brand:DONPER

-Model Number: DB-BOOST-DC12/24V

-Input: DC 12V/24V (Max 35V)

-Input Voltage Range: DC 9.6V~DC 35V

-Compressor Speed Range: 2000~3500RPM

-VER: DZL35-L

-Input Power Limit: 150W

-Controller Temperature Protection Limit: 85°C

-Net Weight:380g

-Product Size:105*91*45mm(L*W*H)

-Package Weight:430g

-Package Size: 140*110*70mm(L*W*H)

Product Features:

● Suitable for controlling DC compressors powered by 12V or 24V DC power supplies;

● Applicable to 40–150L DC refrigerators, solar-powered DC refrigerators, and freezers;

● Full aluminum housing for easy installation and excellent heat dissipation;

● Automatically detects and switches between DC12V and DC24V power systems;

● Automatically variable boost control (PAM) to enhance compressor efficiency.

Important Notes:

*It has been tested to work properly with Secop (formerly Danfoss)BD35F and BD80F compressors,for otherSecopModels we donot know whether it\'s fitting or not, buyers pls pay attention to this pointbefore purchasing.

*It cannot drive some other common brands in the market, such as QDZH25G, ZH25G, etc.

It can drive QDZH35G, ZH35G and above models.

* Please double-check whether your original driver is truly faulty before purchasing. The issue may lie in other circuit components or with the compressor itself.
