Cooper Crouse-Hinds CCBF04SL Compact Solar PV Combiner Box, 600 VDC, NEMA 4X For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

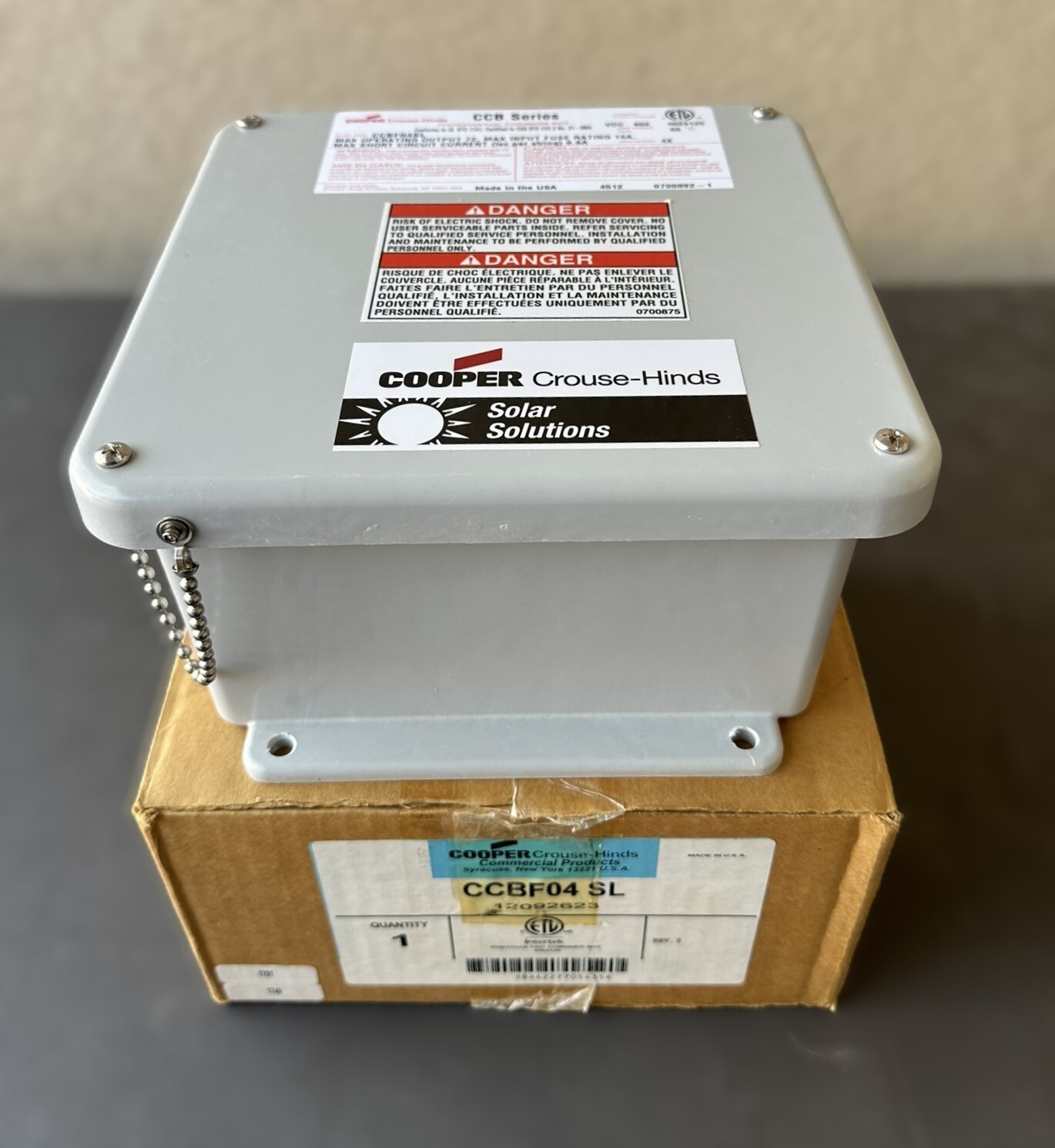

Cooper Crouse-Hinds CCBF04SL Compact Solar PV Combiner Box, 600 VDC, NEMA 4X:
$480.00

Cooper Solar Solutions

Crouse-Hinds CCB SL Series CCBF04SL Fiber Glass Solar Photovoltaic Combiner Box

600 VDC, 4-String NEMA 4X,

Crouse-Hinds CCBF04SL
Compact Solar Combiner Boxes are designed and built to provide long, dependable service in a low profile space saving design. Compact combiners are third party listed to UL1741 to provide long, dependable service and peace of mind. They are available from factory stock in either 4 or 6 circuits with or without fuses to meet tight job delivery requirements. Engineered, manufactured and certified NEMA 4X, they can be mounted either vertically or horizontally and are designed to perform in the harshest environmental conditions.

Color Gray Enclosure Material Fiberglass Enclosure Rating NEMA 4X Enclosure Size 8 in H x 8 in W x 6 in D Finish Natural Fuse 15 A Input Conductor 14 to 8 AWG Material Molded Fiberglass Reinforced Thermoset Polyester Operating Temperature 50 deg C Output Conductor 2 AWG Series SL Series Type Compact Voltage Rating 600 VDC Number of Input Circuits 4 Input Circuits 4 Maximum Output Current 48 A

Continuous duty rated at 600 VDC

NEMA 4X fiberglass 8 x 8 x 6 in enclosures with captive stainless steel screws and formed-in-place polyurethane seamless gasket provided as standard

Touch-safe fuse holders and power distribution blocks for safe operation

90 deg C output terminals

Configured for positive and negative grounded arrays

Rated for continuous operation at 50 deg C

15 A max fuse size

Compatible with EATON Bussmann series UL2579 fast-acting 600 VDC Midget fuses

Non-conductive, impact, UV resistant and flame retardant

Suitable for vertical or horizontal mounting

Four strings

Note: No power adapter/cables or any other accessories are included.

All photos clearly and accurately represent the product/item you will receive. We want you to be confident in your purchase, so please examine the photos closely.
Don't hesitate to contact us if you have questions about the product or need additional information.
If something isn't pictured, it's not included.
We currently cannot ship to territories or PO Boxes.
