Clamp Meter TRMS 6000 Counts NCV Digital Clamp Multimeter DC AC Current Volt Amp:
$26.79

⚡⚡⚡HP-7200B TRMS Clamp Meter 6000 Counts (the 7200-APP with the same function with 7200B,But 7200-APP Can connect to mobile phone via bluetooth.)➤【Multifunction Clamp Meter】 6000 Counts Auto-range AC/DC amps clamp multimeter with the DC Voltage range:600mV~600V, AC Voltage range:6V~600V, AC/DC Current: 60A~400A; Resistance:600Ω~60MΩ; Ideal Non-contact ampere multimeter to troubleshoot electrical problems in automotive, household, HVAC, vehicle boat motor diagnosis.➤【True-RMS Clamp Meter】 This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests in ℃. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household.➤【NCV Detection Funct

➤【Multifunction Clamp Meter】 6000 Counts Auto-range AC/DC amps clamp multimeter with the DC Voltage range:600mV~600V, AC Voltage range:6V~600V, AC/DC Current: 60A~400A; Resistance:600Ω~60MΩ; Ideal Non-contact ampere multimeter to troubleshoot electrical problems in automotive, household, HVAC, vehicle boat motor diagnosis.
➤【True-RMS Clamp Meter】 This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests in ℃. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household.
➤【NCV Detection Function】Non-contact voltage detection effectively check electrical status through measuring EM field intensity without touching any wires; The NCV button lies on the left side of the rotary switch. Simply place your thumb on it and push.
➤【Accuracy AC DC AMP Meter】 This clamp meter with the AC/DC Current Range : 60A~400A; and it provides meaning full measurements at 0.1A or above. So you no need to worry to measure the low current readings; Note that for low-current measurements one can loop the wire around the jaw multiple times, multiplying the reading by the number of turns.
➤【Safety Guarantee】 Safety standard IEC 61010-1, CAT III 600V. Double insulation. 48 Months product warranty provided. 7/24 Customer Service. If you have any problems with our product, just contact us, and we will solve the problems for you ASAP.
Technical Specifications:
1.DC Voltage: *600mV/6V/60V ±(0.5%+2) *600V ±(0.8%+2)
2.AC Voltage: *6V/60V ±(1.0%+3) *600V ±(1.5%+3)
3.DC Current: *60A ±(2%+10) *400A/10A ±(3.0%+10)
4.AC Current: *60A ±(2%+10) *400A ±(3.0%+10)
5.Resistance: *600Ω ±(1.0%+2) *60MΩ ±(1.5%+3)
6.Frequency: *9.999Hz~9.999MHz ±(0.1%+5)
7.Power Supply: 2*1.5V(AA) Battery(not included in packaged)
8.Safety Class: IEC 61010-1, CAT II Cycle:0.1%-99.9%( ±2.0% of rdg+2 digits)
10.Temperature:-20-150 Resolution:1 ℃/1℉,NiCr-NiSi K-type sensor, Overload protection: 250V DC or AC rms
Product Feature(7200B）:
Diode
Data Hold
Continuity
Backlight
AC DC Current
AC DC Voltage
Relative Value
Auto Power Off
Temperature ℃
Non Contact AC Voltage detection
Package Contents:(HP-7200B)
2 x Test Lead
1 x User Manual
1 x Temperature Probe
1 x 7200B Digital Multimeter
⚡⚡⚡HP-7200-APP 6000 Counts TRMS Clamp Meter with Bluetooth Connect
➤【Remotely Monitoring on Your Phone】 Built-in wireless connectivity can auto connect to your Android / Apple phones or tablet with ease, allows you viewing logging the data out of the arc flash zone 15m (50 ft) away, and save the measurement for detailed analysis, sharing later.
➤【AC DC Clamp Amp Voltmeter w/ NCV】This clamp multitester can accurately measure AC/DC Amperage, AC/DC Voltage, Resistance, Frequency or Duty Cycle, Capacitance and also provides Noncontact AC Voltage(NCV) detection, Diode, Continuity Buzzer and Temperature(℃/℉) tests. Easy to use in non-contact ampere measures, troubleshoot electrical problems in , motors, household appliances, HVAC
➤【Continuous Data Logging Clamp DMM】This clamp-on meter can displays AC DC amps, volts, ohms, Cap, Hz Temp in Max/Min/Avg on the same interface with real-time reading. The curve graph w/ timing will show you the changes of amp volt flow more visually. Also supports adjustable data logging rates for continuous testing/ recording unless the battery is dead or the memory is full.
➤【Reliable True RMS Voltage Amperage Meter】0.1 amp resolution for 0.1 ~ 60A AC DC current, 1A for 60 ~ 400A to support accurate amp reading, this clamp amp probe meter is more user-friendly for daily current measurement, such as troubleshooting car, boats battery
➤【Clamp On Live Wire for Measurement】To measure amp with this clamp meter, you MUST separate the hot and neutral conductors, and clamp around only LIVE wire for measurement otherwise they will cancel each other out and give a zero amp reading. The most convenient way without peeling the cord is clamp on an AC Line Splitter
DC Current:60A ±(2%+10) *400A±(3.0%+10)
AC Current: 60A ±(2%+10) *400A ±(3.0%+10)
AC Voltage:6V/60V ±(1.0%+3) *600V ±(1.5%+3)
DC Voltage: 600mV/6V/60V ±(0.5%+2) *600V ±(0.8%+2)
Resistance: 600Ω ±(1.0%+2) *60MΩ ±(1.5%+3)
Capacitance: 6nF-60mF
Frequency: cycle:0.1%~99.9%( ±2.0% of rdg+2 digits) ; Temperature Test: -4 ~ 1832 ℉
Data Hold
Diode Test
MAX/MIN/AVG
Front LED Lamp
Backlight Display
Overload Protection
Temperature Test (℃/℉)
HP-7200-APP How to Connect to Phone :
1. Scan the QR code or Search “AILINK” on Google Play/ APP Store.
2. Turn OFF ALL irrelevant bluetooth signal. → Turn on the Bluetooth on your mobile phone.
3. Open the APP → Turn on BT-7200APP Wireless Multimeter → Wait for it shows up on your APP→ Select to Connect
4. Press “Start" button → Enjoy your measurement.
5. Share the electric datas with your co-worker via FB
Pacakge Content(HP-7200-APP)
1 x User Manual
2 x Test Leads (Pair)
1 x Small Screwdriver
1 x Temp Probe
1x HP-7200-APP Clamp Ampere Meter
Note:The 7200 series clamp meters are available in orange and blue. If you receive blue, please don't be confused. The product is no problem.
⚡⚡⚡HP-7200A 2000 Counts Clamp Meter
➤True RMS Clamp Multimeter
The AC voltage and current measurement of AP-7200A clamp meter is true RMS measurement, which is more accurate for different waveform signals. Jaw Size：26MM.
➤Non Contact Voltage Detection (NCV)
With the NCV function of BT-7200A multimeter, you can easily detect and know if there is electricity in the wire without touching or breaking the wire or suffering from the risk of electric shock.
➤Multi-function Auto Range Clamp Meter
This portable clamp meter supports auto ranging, flashlight, function selection dial, data hold, Max/Min data, LCD display, backlight, auto power off, low battery indication, over range indication, NCV, diode test and continuity buzzer.
➤Wide Applications
The clamp tester is compact, easy to operate, convenient to carry and low power consumption. It is ideal to be used in car maintenance, laboratory use, household appliances repair and electrical measurement.
GENERAL SPECIFICATIONS (7200A):
Maximum Display: 1999
Sampling Rate: 2 to 3 times per second
Over-range Display: Display "OL" or "-OL"
Measuring Principle: double integral A/D conversion
Working Environment: temperature 0～40℃, relative humidity ≤80%
Storage Environment: temperature -20～60℃, relative humidity ≤90%
Power Supply: Two AAA Batteries
Dimensions: Approx. 280g (including battery)
Maximum Clamp Head Opening Size: 26 mm

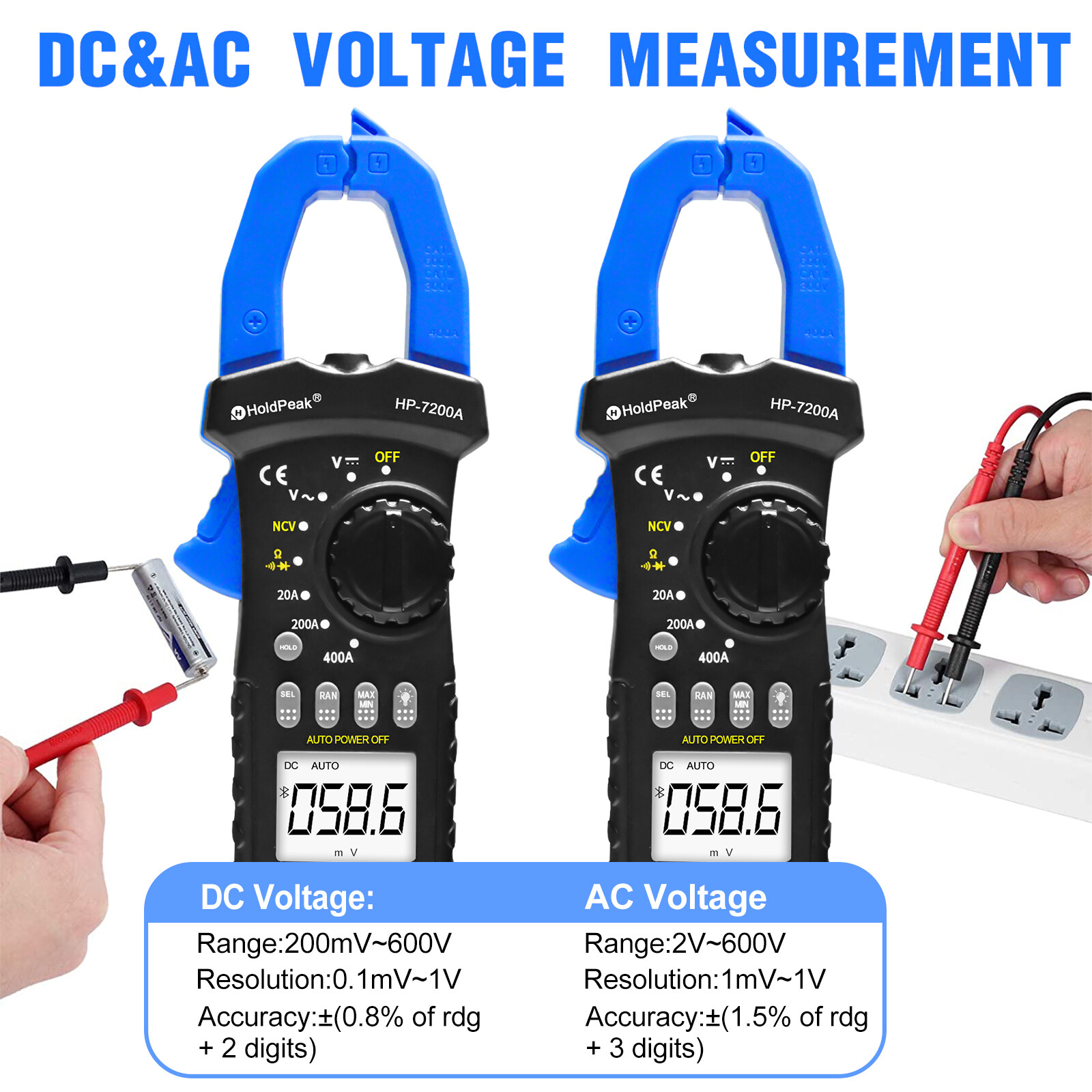

DC Voltage:
200mV/2V /20V ±(0.5% of rdg + 2 digits)
20V /600V ±(0.8% of rdg + 2 digits)
AC Voltage(True RMS):
2V / 20V ±(1.0% of rdg + 3 digits)
200V ~ 600V ±(1.5% of rdg + 3 digits)
AC Current(True RMS):
20A /200A ±(2.5% of rdg + 10 digits)
400A ±(3.0% of rdg + 10 digits)
Resistance:
0Ω ~ 200Ω ±(1.0% of rdg + 3 digits)
2KΩ ~ 2MΩ ±(1.0% of rdg + 2 digits)
2MΩ ~ 20MΩ ±(1.5% of rdg + 3 digits)
Non-contact Voltage Detection:
NCV Detection Range: 90V～1000V AC Effective Value
When an AC voltage signal is sensed, the flashlight will light up and the buzzer will sound.
Package List
2 x Test Leads
1 x User Manual
1 x HP-7200A Handheld Clamp Voltage
200mV /2V/ 20V ±(0.5% of rdg + 2 digits)
200V / 600V ±(0.8% of rdg + 2 Voltage(True RMS)
2V /20V ±(1.0% of rdg + 3 digits)
200V ~/600V ±(1.5% of rdg + 3 digits)
6V/60V ±(1.0%+3) *600V ±(1.5%+3)6V/60V ±(1.0%+3) *600V ±(1.5%+3)DC CurrentNO60A ±(2%+10) *400A ±(3.0%+10)60A ±(2%+10) *400A ±(3.0%+10)AC Current(True RMS)
20A / 200A ±(2.5% of rdg + 10 digits)
400A ±(3.0% of rdg + 10 digits)
60A ±(2%+10) *400A ±(3.0%+10)60A ±(2%+10) *400A ±(3.0%+10)Resistance
0Ω ~ 200Ω ±(1.0% of rdg + 3 digits)
2KΩ ~ 2MΩ ±(1.0% of rdg + 2 digits)
2MΩ ~ 20MΩ ±(1.5% of rdg + 3 digits)
600Ω ±(1.0%+2) *60MΩ ±(1.5%+3)600Ω ±(1.0%+2) *60MΩ ±(0.1%+5)9.999Hz~9.999MHz ±(0.1%+5)Duty CycleNO0.1%～99.9%: ± ( 2.0% of rdg + 2 digits )0.1%～99.9%: ± ( 2.0% of rdg + 2 digits )TemperatureNO-20-150 usContact usPayment
