Chinese Mini Excavator Hydraulic Pressure Test Port Kit 3500 PSI Gauge, m14 Din:
$69.99

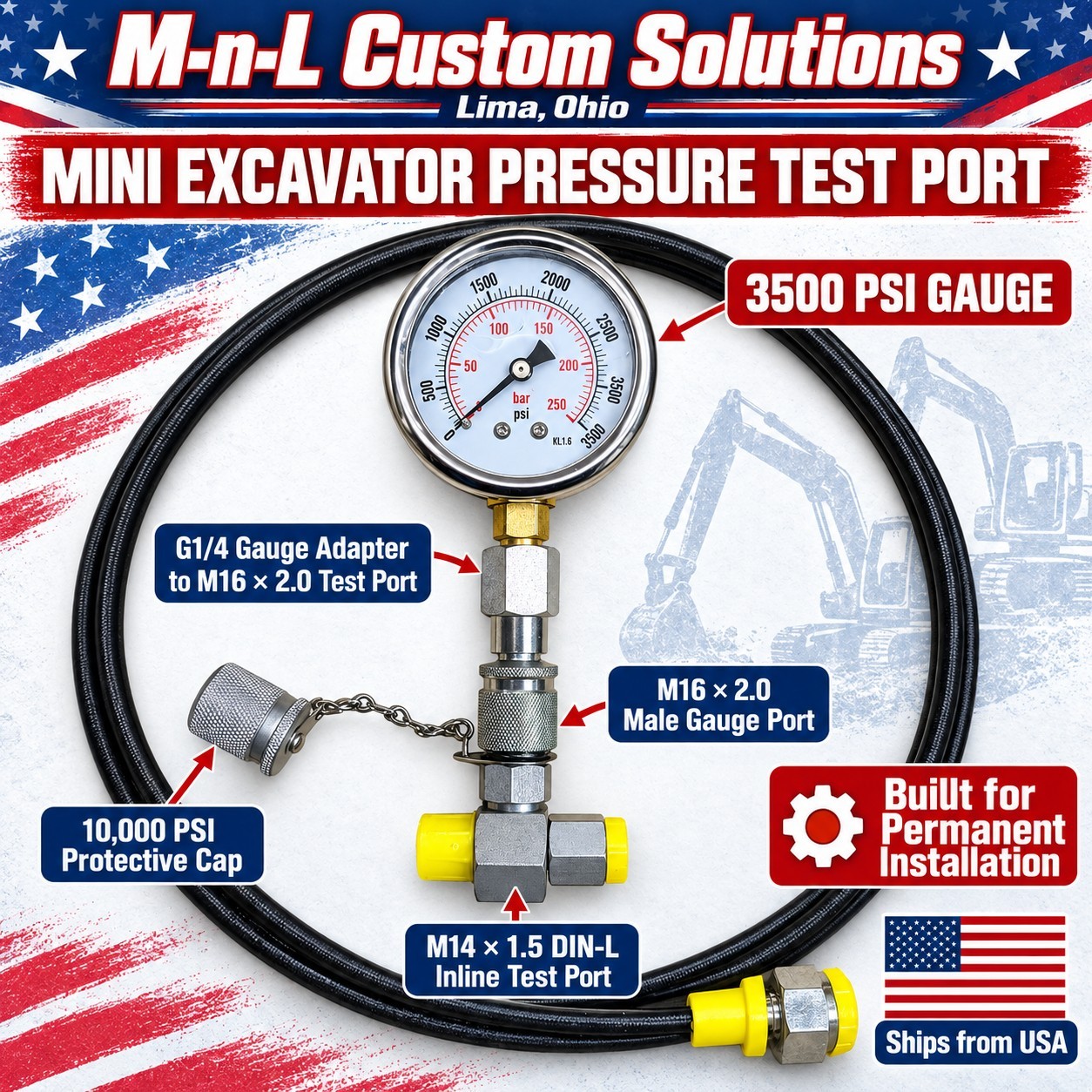

Mini Excavator Hydraulic Pressure Test Port Kit 3500 PSI Gauge M14 DIN-L

Description

Monitor and test your mini excavator’s hydraulic pressure with this complete inline pressure test-port setup. The M14 × 1.5 DIN-L test port installs directly between a compatible male fitting and female hydraulic hose connection.

The test port may be used temporarily for troubleshooting or left permanently installed for convenient future pressure checks.

Kit Features:

3500 PSI hydraulic pressure gauge

Gauge has standard G1/4 thread

G1/4 gauge adapter to M16 × 2.0 test-port connection

M14 × 1.5 DIN-L inline hydraulic test port

M16 × 2.0 male gauge-test connection

Protective test-port cap rated for up to 10,000 PSI

Suitable for temporary testing or permanent installation

Common Uses:

Checking hydraulic system pressure

Adjusting pressure-relief valves

Troubleshooting weak hydraulic performance

Monitoring pressure during equipment operation

Creating a permanent, easily accessible pressure-testing location

Designed for Chinese mini excavators and other hydraulic equipment using compatible M14 × 1.5 DIN-L connections.

Important: Confirm your machine’s fitting style, thread size and required pressure range before ordering. Hydraulic systems must be fully depressurized before installing or removing any component.

Ships from M‑n‑L Custom Solutions in Lima, Ohio, USA.
