Century Electric Motor UB386 B386 Century 5 HP SPL 3450 RPM R56HZ Frame Used For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Century Electric Motor UB386 B386 Century 5 HP SPL 3450 RPM R56HZ Frame Used:
$460.88

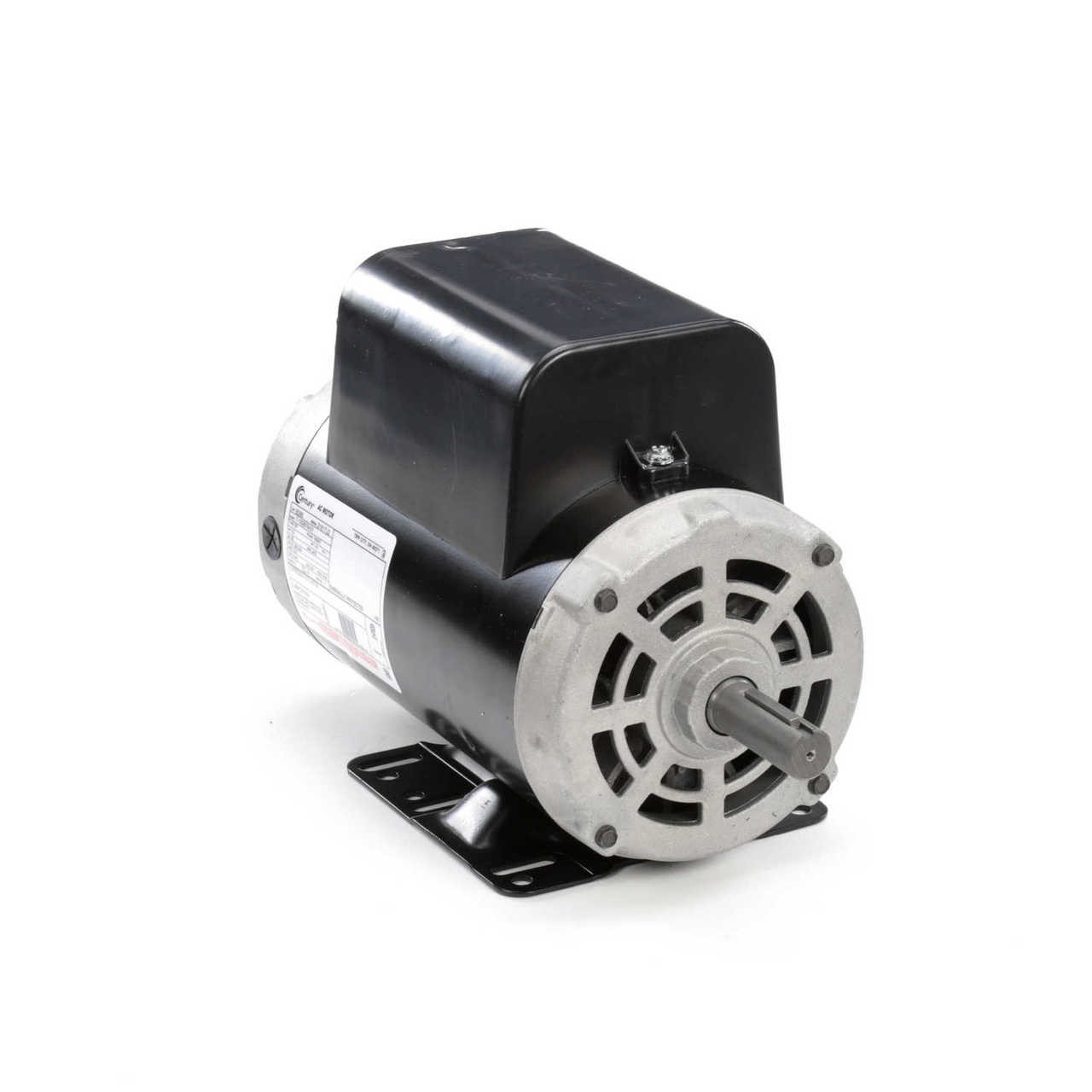

Century Electric Motor UB386 Electric Motor. B386 Century 5 HP SPL 3450 RPM R56HZ Frame 208-230V Air Compressor Motor - Century # B386.

B386 CENTURY AIR COMPRESSOR - 5 SPL HP R56HZ Frame REPLACEMENT MOTOR 3450 RPM, 22 0.0 amps, 208-230V 60hz Open Drip Proof Ball Bearings Service Factor 1.15 Non-Reversible CCW Rotation facing the shaft Shaft: 7/8 in diameter x 2 1/4 in Flat Rigid Base Mount Manual Overload Protection Overall length is 14.56 in motor. designed to be used with a belt driven compressor. Not where part of head. pivot type mount. 56HZ non standard shaft. keyway. height center 3.5 in 56 frame, 3 in 5 in bolt holes. connection diagram on name plate. Capacitor Start/Capacitor Run. No. 7-182679-01, 182679Dayton 48Y636

Specifications

Brand: Century Electric Motor
Part number (MPN): UB386
Type: Electric Motor
Horsepower: 5 hp
Maximum RPM: 3450
Voltage: 208-230 V
Frame Size: 56
Amperage: 22.0 A

Condition

Used – top tier. Top-tier used condition. Inspected and bench-tested by our technicians before listing. May show minor cosmetic handling marks or shelf wear; fully functional.

What is included

One (1) Century Electric Motor UB386. Capacitors, brackets, fan blades, wiring accessories and mounting hardware are not included unless shown in the photos.

Before ordering

Confirm horsepower, RPM, voltage, rotation, shaft dimensions, frame and mounting against the unit you are replacing. Message us before ordering if the application is uncertain.

Shipping and returns

Ships fast and well packed from our Michigan warehouse. 30-day returns.
