Brand New SPI Plug Style Rollform Tap (Thread Forming Tap) 0-80NF H2P 65-431-9 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Brand New SPI Plug Style Rollform Tap (Thread Forming Tap) 0-80NF H2P 65-431-9:
$9.00

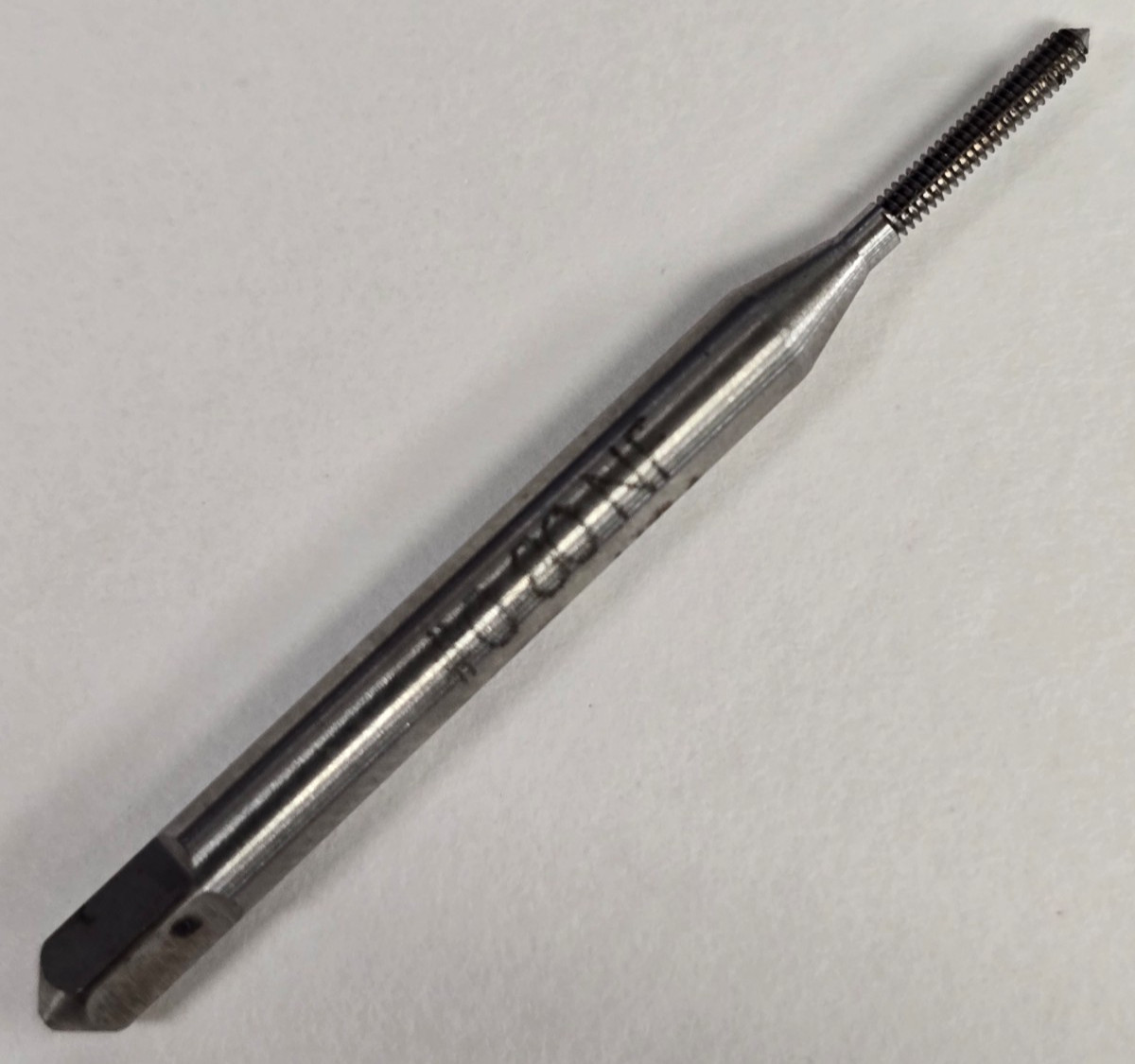

This is aBUY IT NOWsale!!!You are looking at aBrand New SPI Plug Style Rollform Tap (Thread Forming Tap) 0-80NF H2P 65-431-9
Code Specifications Breakdown
• 0 (Size): Designates a #0 machine screw size, which features a tiny major diameter of exactly 0.0600 inches (1.524 mm).• 80 (Pitch): Indicates the thread count of 80 threads per inch (TPI). This is an ultra-fine, highly precise thread structure.• NF / UNF: Stands for Unified National Fine. (Though officially written as UNF under modern ANSI standards, it is frequently labeled as NF on traditional tooling catalogs).• H2 (Pitch Diameter Limit): Specifies the standard manufacturing tolerance range for the tap's pitch diameter. An H2 limit means the tap's pitch diameter is ground oversized by exactly 0.0005 to 0.0010 inches above the basic pitch diameter to safely allow for material elasticity and thread class fitment.• P (Style): Indicates a Plug Style chamfer tip. A plug style tap features a gradual lead-in chamfer spanning roughly 3 to 5 threads at the nose, helping the fluteless tool self-center and gradually form the cold-rolled metal threads inside a pre-drilled hole.
This is brand new as well as being soldAS-IS.You will get the exact item or items shown here in the pictures or one in the same new condition.
