Bonney Forge 3/4\" Gate Valve 150# Flanged RF A105N OS&Y Trim 8 NOS Italy L11-LE:
$34.98

NEW Bonney Forge 3/4\" Gate Valve 150# Flanged RF A105N OS&Y Trim 8 NOS Italy L11-LE

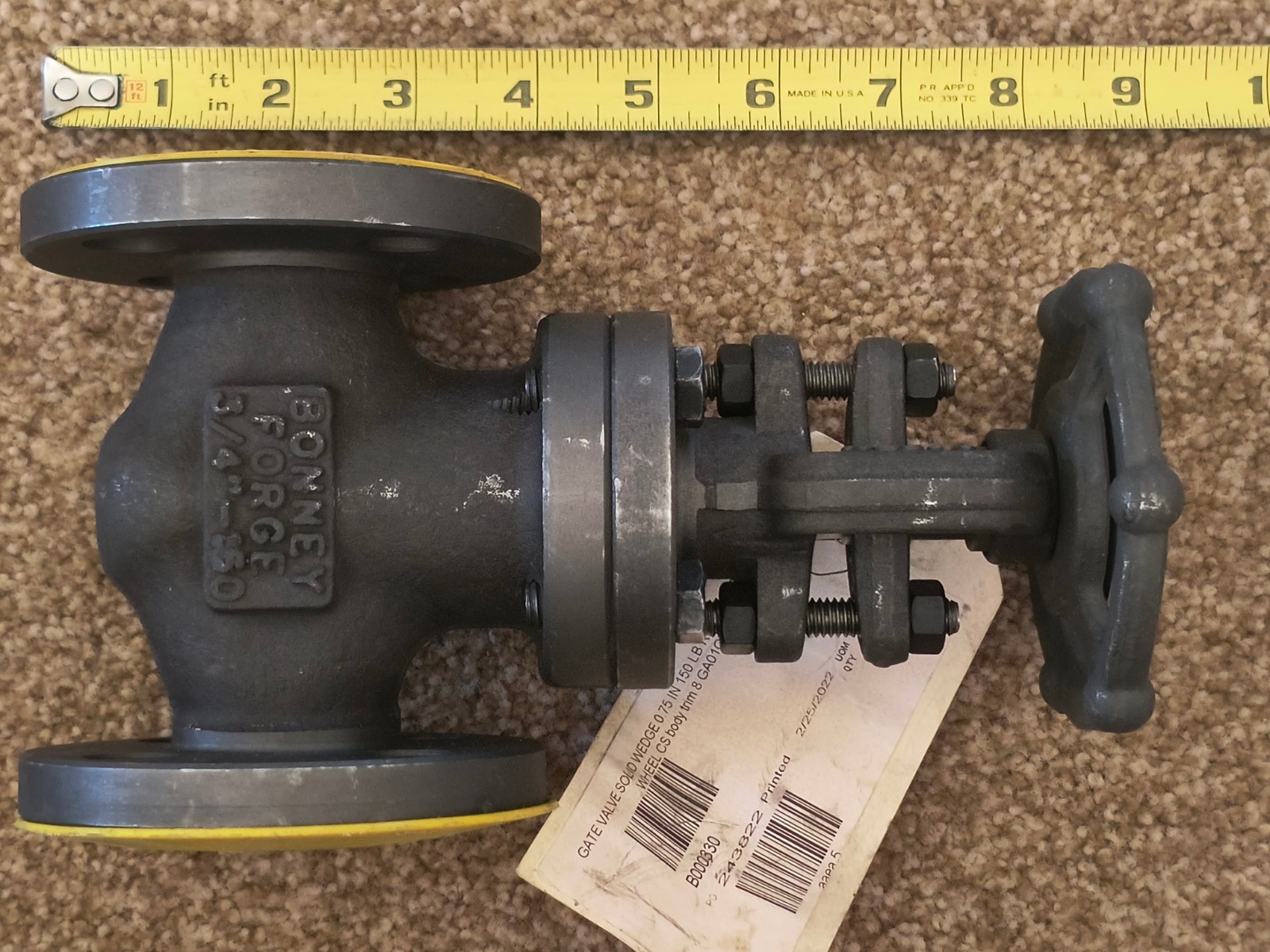

This is a 3/4 inch gate valve manufactured by Bonney Forge. It is a solid wedge, bolted bonnet type with an outside screw and yoke (OS&Y) design, made from forged carbon steel (ASTM A105N). The valve is new old stock, has never been installed or used, and includes the original tag and flange protectors. It is designed for on/off flow control in pipelines and is commonly used in industrial applications such as oil and gas, petrochemical, water treatment, and steam systems where reliable isolation is required.

Specifications
    Type: Gate Valve, Solid Wedge, Bolted Bonnet
    Design: OS&Y (Outside Screw and Yoke) – Stem rises when opening
    Figure Number: L11-LE
    Part Number: 197752-*001
    Shipping Code: GA01CB500
    Date of Manufacture: April 2020 (04/20)
    • Size & Pressure Ratings
    Nominal Size: 3/4 inch (DN20)
    Pressure Class: ASME Class 150 Working Pressure (WP) Ratings:WP 00285 PSI @ -20°F /WP 00285 PSI @ 100°F /WP 00080 PSI @ 800°F
    • Materials
    Body Material: ASTM A105N (Forged Carbon Steel, Normalized)
    Trim Designation: Trim 8 (Common API designation for the materials below)
    Disc/Wedge: CR13 (13% Chromium Stainless Steel / Type 410)
    Stem: CR13 (13% Chromium Stainless Steel / Type 410)
    Seat: CR13.HF (13% Chromium with Hard Facing)
    Protective Cover Material: FE45 (likely polyethylene)
    Traceability Codes (Body Markings): Heat/Foundry Codes: AAEC, AAEA (Batch tracking codes for the metal forging)
    • Measurements
    Weight: 9 lbs 3 oz
    Face-to-Face Length: 4 11/16\" (Includes Raised Face)
    Flange Diameter: 3 7/8\"
    Bolt Hole Center-to-Center: 2 3/4\"
    Bolt Hole Diameter: 5/8\"
    Height (Closed): 8 1/2\"
    Height (Open): 9 1/4\"
    • Standards ComplianceASME B16.34: Valves - Flanged, Threaded, and Welding End (Pressure/Temp ratings)API 602: Compact Steel Gate ValvesAPI 624: Type Tested for Fugitive Emissions (Leakage prevention)ASME B16.10: Face-to-Face DimensionsATEX: II 2 GD (Rated for explosive atmospheres)

    If for any reason it needs to be returned, I\'ll pay for the return shipping.
