Belimo AFB24-SR-S Damper Actuator 24vac/Dc 180 In-lb Brand New In Box For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

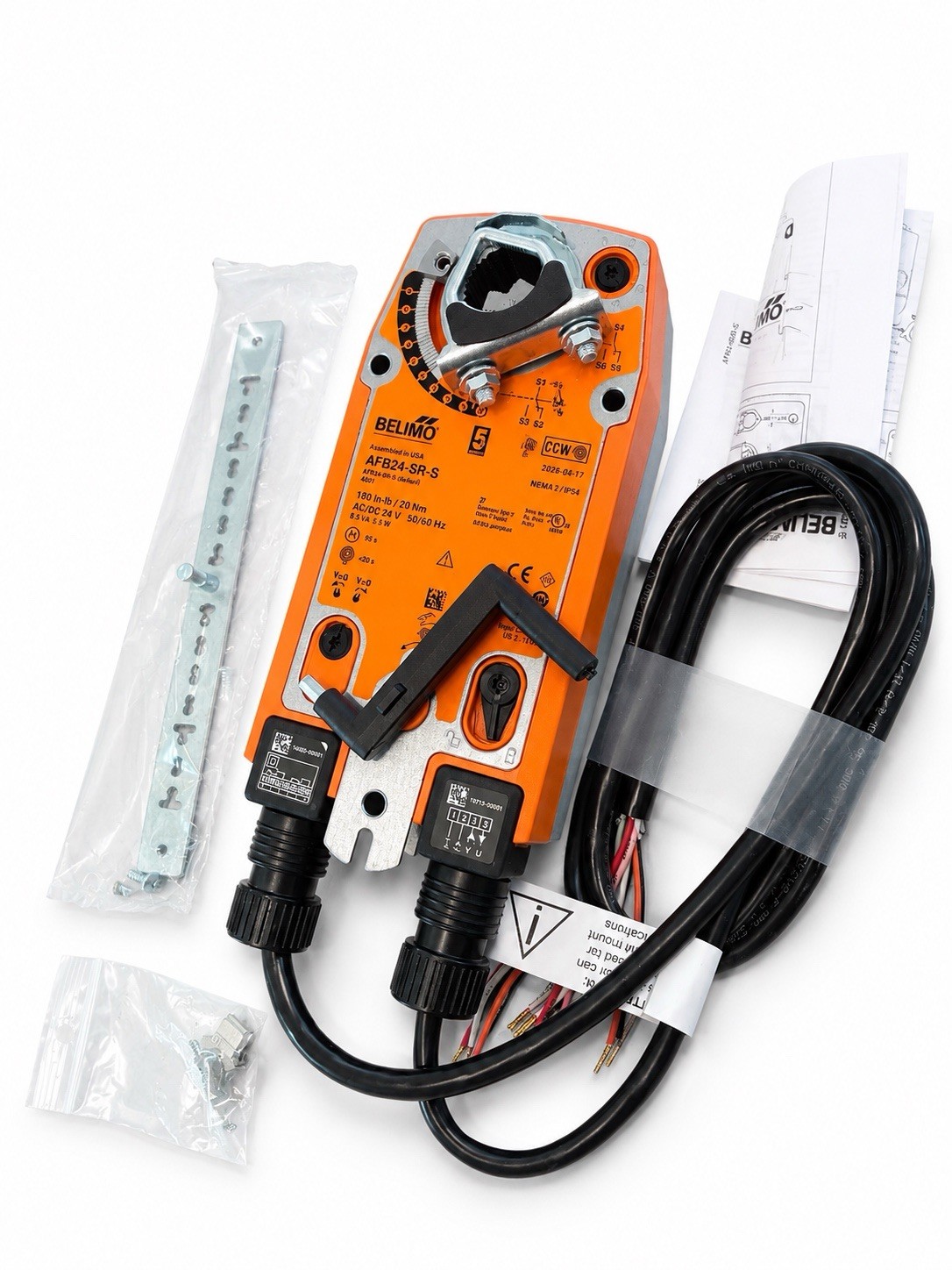

Belimo AFB24-SR-S Damper Actuator 24vac/Dc 180 In-lb Brand New In Box:
$318.00

Brand new in Box Belimo AFB24-SR-S SpecificationsVoltage AC/DC
AC/DC 24 V
Power Consumption (Running)
5.5 W
Power Consumption (Holding)
3 W
Power Consumption For Wire Sizing
8.5 VA
Auxiliary Switches
2x SPDT
Torque
180 in-lb [20 Nm]
Control Type
DC 2...10 V
Direction Of Motion Motor
selectable with switch 0/1
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Manual Override
5 mm hex crank (3/16" Allen), supplied
Angle of Rotation
95°
Running Time (Motor)
95 s / 90°
Running Time (Fail-safe)

---

---

---

AFB24-SR-S -BRAND NEW - Belimo - Fail Safe Actuator - MODULATING

$152.10

---

Belimo AFB24-SR 24V Spring Return Direct Mount HVAC Damper Actuator (NOS)

$160.00

---

BELIMO AFB24 (NEW IN BOX)

$125.00

---
