Baomain 20A 660V Rotary Cam Changeover Switch 2 Position 4 Terminal For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

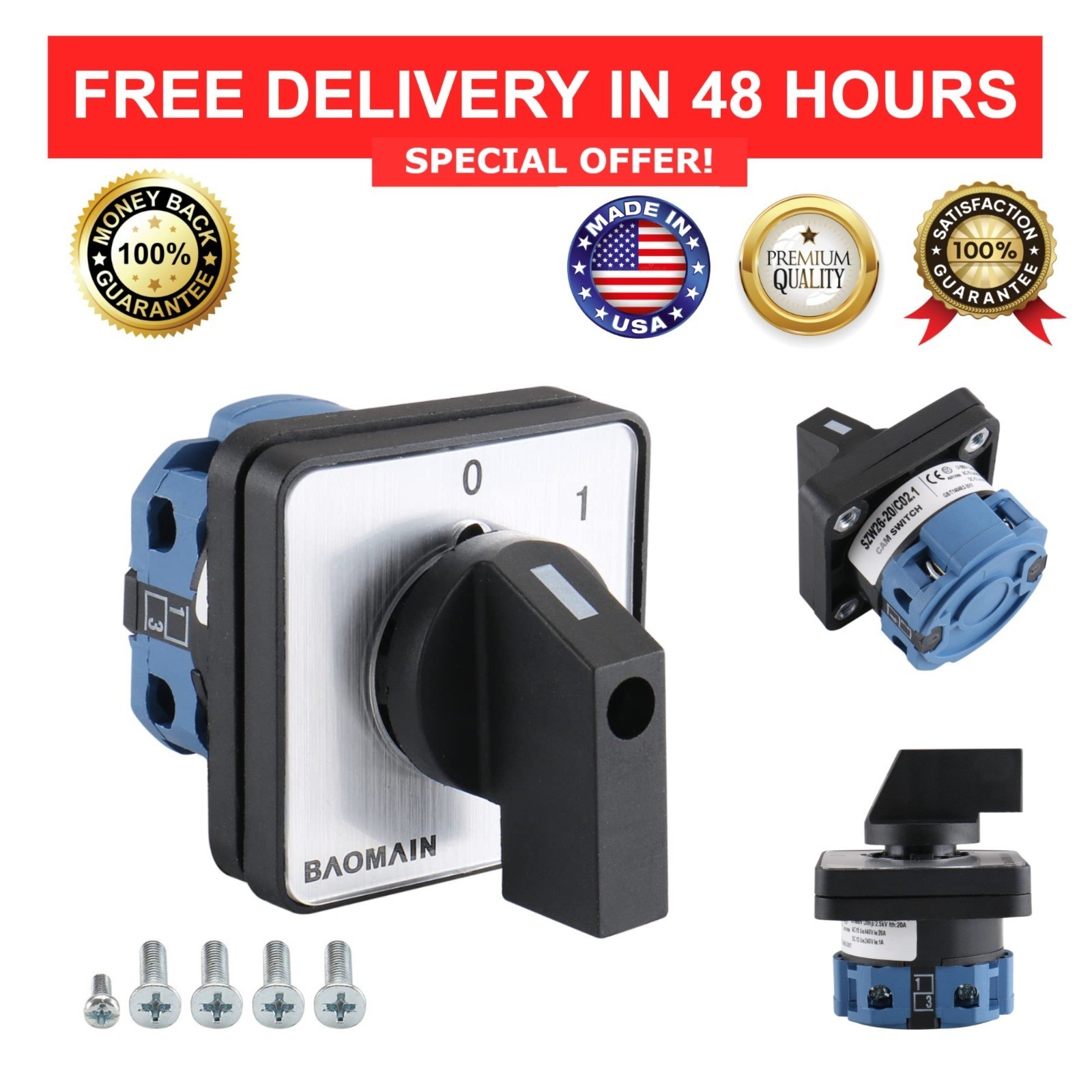

Baomain 20A 660V Rotary Cam Changeover Switch 2 Position 4 Terminal:
$21.99

Overview

Take reliable control of single-phase electrical circuits with this Baomain rotary cam changeover switch. Its two-position selector provides clear ON/OFF operation with a positive 45-degree indexing action, making it well suited to machinery controls, industrial automation, and electrical distribution panels.

The switch combines a compact panel-mount format with a durable flame-retardant plastic housing and silver-alloy contacts. Its 4-terminal screw connection design supports secure wiring and consistent contact movement for dependable everyday operation.

With a Ui insulation rating of 660V and a thermal current rating of 20A, this mechanical selector is designed for professional control applications where straightforward circuit isolation and repeatable switching are important.

Key Features

• Brand: Baomain
• Switch Style: Rotary
• Material: Plastic
• Current Rating: 1-15 A
• Number of Positions: 2
• Mounting Style: Panel, Surface
• Ingress Protection: IP54

Highlights

• ✓ Clear two-position ON/OFF selection supports quick, intuitive circuit control.
• ✓ Positive indexed rotation helps provide consistent switching from one operation to the next.
• ✓ Heavy-duty screw terminals help maintain secure wiring connections.
• ✓ Compact panel-mount construction fits neatly into industrial control equipment.
• ✓ Silver-alloy contacts are designed for low resistance and effective conductivity.

Usage

Suitable for motor control, power supply switching, machinery control circuits, industrial automation, and electrical distribution panels. Intended for circuits operating within the switch\'s stated voltage and current ratings with compatible screw-terminal wiring.

In the Box

• 1 Baomain SZW26-20/C02.1 rotary cam changeover switch

Please Note

• This electrical component is rated for circuits up to 660V AC and 20A. Installation and wiring should be performed by a qualified person in accordance with applicable electrical codes.

---

---

---

Baomain 20A 660V Rotary Cam Combination Changeover Switch, 2 Position 4 Terminal

$15.25

---

BAOMAIN 20A 2-Phase 3-Position Rotary Changeover Switch,Wider Box

$27.99

---

BAOMAIN 20A 2Phase 3Position Rotary Changeover Switch,Wider Box

$22.84

---
