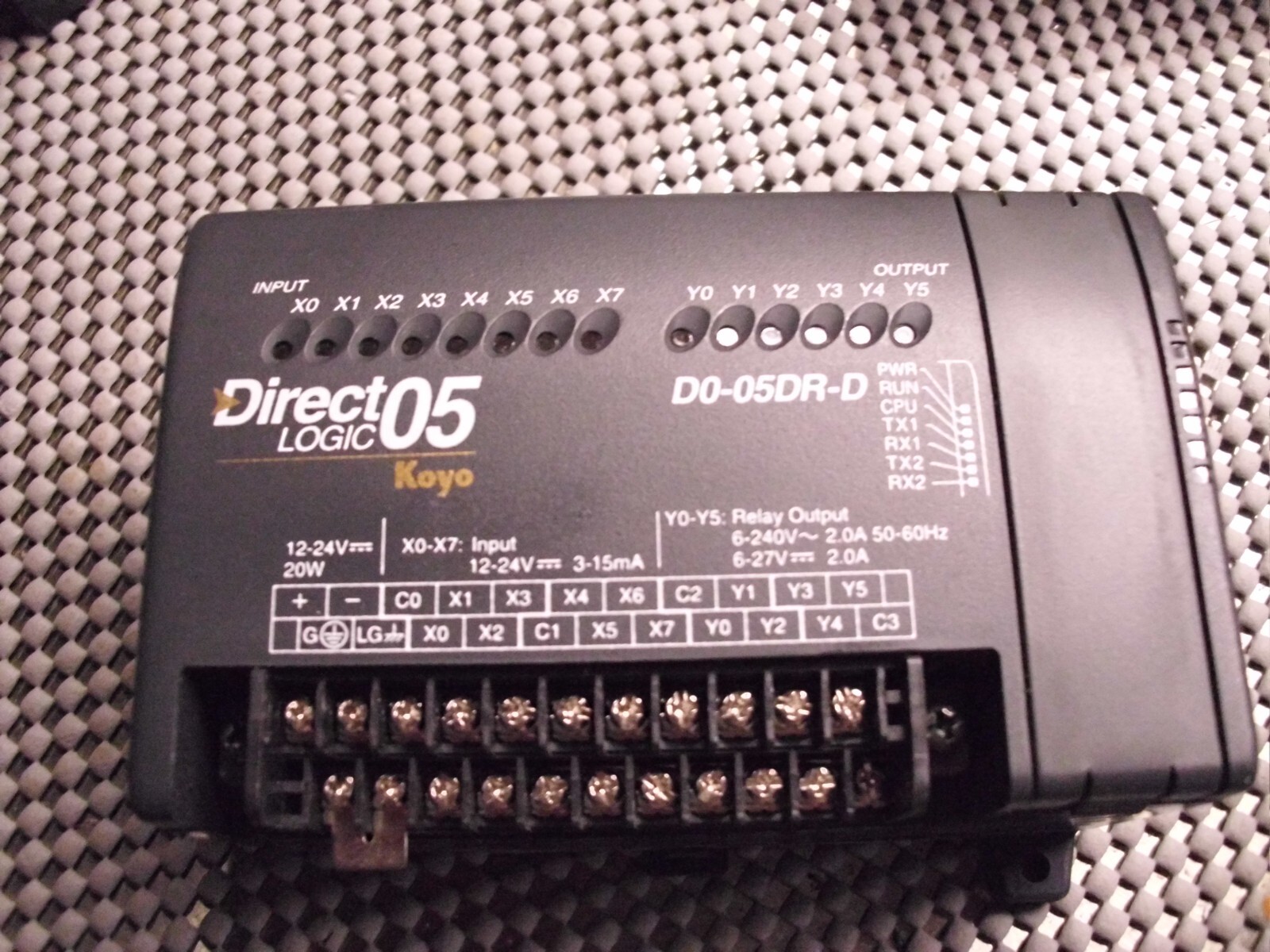

Automation Direct Logic 05 PLC D0-05DR-D, D00DRD For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Automation Direct Logic 05 PLC D0-05DR-D, D00DRD:
$129.00

D0-05DR-D

DirectLOGIC DL05 PLC, 12-24 VDC required, serial ports, Discrete Input: 8-point, DC, Discrete Output: 6-point, relay.

Technical Memory6k wordsLadder Memory2k wordsUser Data Memory4k wordsProgramming LanguageLadderProgramming SoftwareDirectSOFT programming software v4.0 or laterCommunication Port and Connection Type(s)

• (2) RS-232 (RJ12)

Port Protocol(s)

• DirectNET
• Modbus RTU
• K-sequence
• programming and monitoring

Port Speed(s)

• fixed at 9.6k baud
• up to 38.4k baud

Real Time Clock/CalendarNoRetentive MemoryNoBattery BackupNoMaximum Expansion Modules Allowed1External Power Requirement12-24 VDCNumber of Discrete Input Points8Nominal Input Voltage12-24 VDCVoltage TypeDCDiscrete Input TypeSinking/sourcingNumber of Isolated Discrete Input Commons2Number of Points per Discrete Input Common4Frequency Response5 kHzNumber of Discrete Output Points6Nominal Output Voltage12-24 VDC/12-240 VACDiscrete Output TypeRelayRelay Configuration(6) Form A (SPST) relaysLoad Current2A/pointNumber of Isolated Discrete Output Commons2Number of Points per Discrete Output Common3Maximum Number of PID Loops4Number of High-Speed Capable Input Points3High-Speed Counter(s)

• up to (1) up counter
• up to (1) quadrature (A and B) counter

Position Scaling

• up to (1) up counter
• up to (1) quadrature (A and B) counter

Frequency Measurement

• up to (1) up counter
• up to (1) quadrature (A and B) counter

Interrupt(s)

• up to (1) input interrupt
• up to (1) timer interrupt

---

---

---

AUTOMATION DIRECT PSM24-600S RHINO POWER SUPPLY -Parts?

$75.00

---

AutomationDirect P1-540 - Productivity1000 CPU - Automation Direct

$125.00

---

AUTOMATION DIRECT H2-DM1E (BRAND NEW) Do-More DL-205 H2 CPU, 64k

$387.88

---
