Astro Pneumatic PRN1 3/8" Pneumatic Rivet Nut Setting Kit Metric/SAE For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

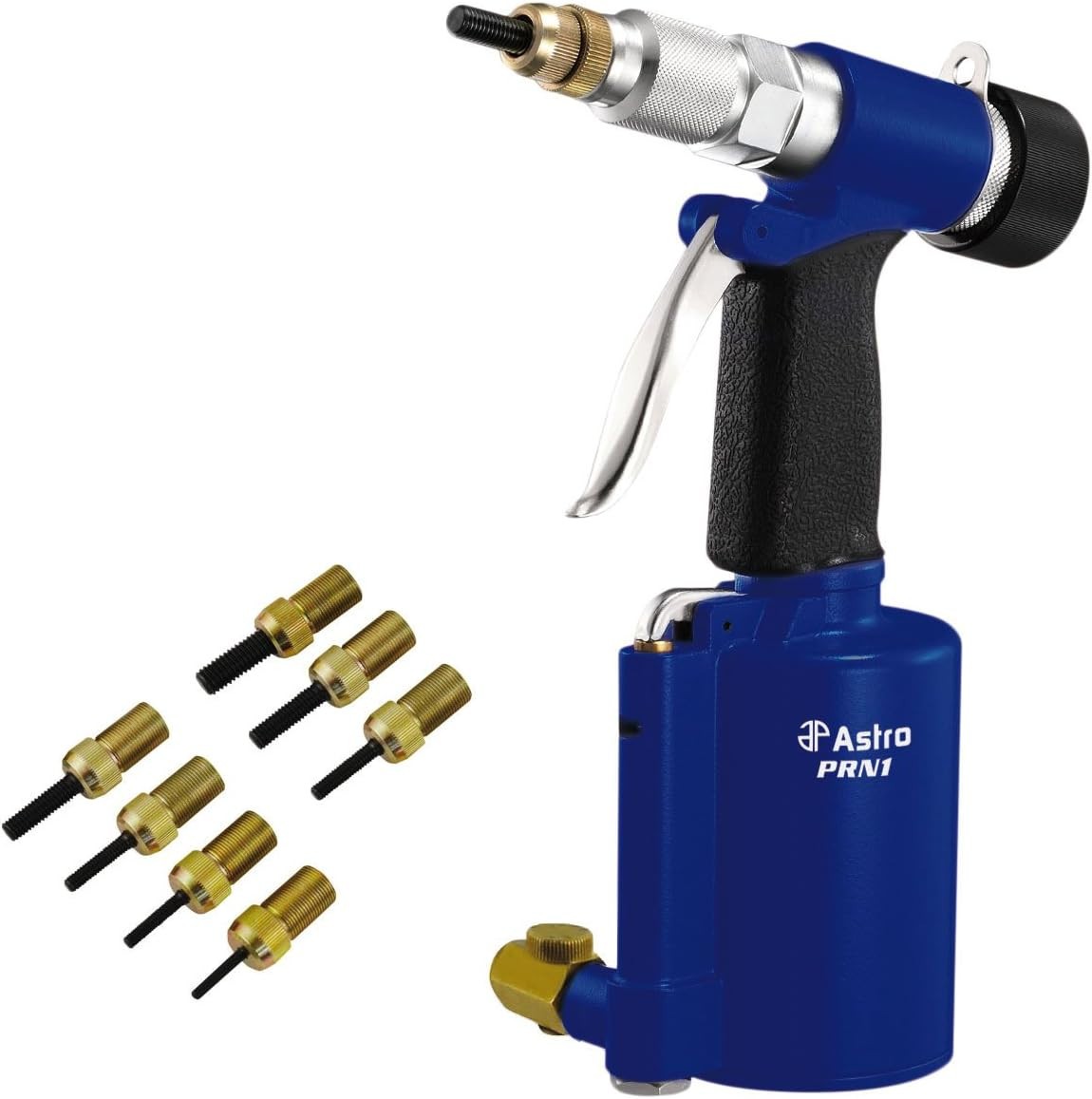

Astro Pneumatic PRN1 3/8" Pneumatic Rivet Nut Setting Kit Metric/SAE:
$188.99

Astro Pneumatic PRN1 Rivet Nut Setter - Description 1 💪 Why choose this kit

2,680 lbs pulling force – Air‑hydraulic power sets rivet nuts instantly.
8 mandrels & nosepieces – Includes Metric (M4–M10) and SAE (1/4"–3/8").
3/8" max capacity – Works with steel & aluminum rivet nuts (M10 steel, 1/4" stainless).
Trigger operation & free‑spinning rear wheel – Quick setting and easy un‑threading.
Compact & ready to use – No separate hydraulic unit needed.

2 📋 Technical specifications BrandAstro Pneumatic Tool (AP) ModelPRN1 Tool typePneumatic rivet nut setting kit Pulling force2,680 lbs (air‑hydraulic) Max capacity (steel/aluminum)M10 (3/8") Max capacity (stainless)M6 (1/4") Operating pressure90–120 psi (recommended) Air consumptionApprox. 4 SCFM Air inlet1/4" NPT Included mandrel sizes (Metric)M4, M5, M6, M8, M10 Included mandrel sizes (SAE)1/4", 5/16", 3/8" Tool dimensions (LxWxH)11.61" x 8.07" x 3.94" Weight4.4 lbs ColorBlue (painted finish) 3 🔩 Compatible rivet nuts & uses ✅ Mandrels & nosepieces included (8 total)

Metric: M4, M5, M6, M8, M10
SAE: 1/4", 5/16", 3/8"

📦 Recommended rivet nut materials

Steel rivet nuts – up to 3/8" (M10)
Aluminum rivet nuts – up to 3/8" (M10)
Stainless steel rivet nuts – up to 1/4" (M6)

🛠️ Common applications

Automotive panels, brackets, aftermarket accessories
Metal fabrication, HVAC, and sheet metal work
Repairing stripped threads in thin materials

*For 3/8" steel nuts, ensure minimum 90 psi shop air. The tool delivers single‑stroke setting under proper pressure. 4 📦 What's in the box Astro PRN1 pneumatic rivet nut gun (air‑hydraulic) 8 mandrels + 8 nosepieces (M4, M5, M6, M8, M10, 1/4", 5/16", 3/8") Free‑spinning rear adjustment wheel Built‑in air regulator (adjustable) Wrench for mandrel changes Carrying case (blow‑molded storage) User manual 5 🛡️ Warranty & support ✅ Manufacturer warranty (Astro Pneumatic Tool)
✅ 30‑day buyer protection – returns accepted for defects
✅ Seller support: message us for installation or compatibility help
✅ Genuine replacement mandrels/nosepieces available online 6 🚚 Shipping & operation tips 📬 Shipping details
• Ships from USA within 1 business day
• Free ground shipping (continental US)
• Tracking provided after shipment
• Returns accepted within 30 days (buyer pays return unless defective) 🔧 Daily lubrication & smooth operation (replaces maintenance section)
• Before each use: Apply a few drops of pneumatic tool oil into the air inlet. This lubricates internal seals and mandrel.
• Keep mandrel threads lightly oiled – use light machine oil or air tool oil on the threaded portion to prevent jamming and ensure easy un‑threading.
• Free‑spinning rear wheel: If a rivet nut becomes stuck, turn the rear wheel counter‑clockwise to back out the mandrel. Keep this mechanism clean.
• Air pressure settings: For M4–M8, 70–90 psi is sufficient; for M10/3/8" steel use 90–110 psi. Use the built‑in regulator to adjust.
• After use: Disconnect air supply, wipe down exterior, and store in the included case.
• Mandrel change: Use the provided wrench; never hammer or force a stuck mandrel – apply oil and rotate rear wheel.
• No other routine maintenance required – the tool has no user‑serviceable internal parts besides oiling. 📌 Seller note – This kit includes everything shown. The tool works with standard workshop air compressors (1/4" NPT fitting). For stainless rivet nuts larger than 1/4", reduce setting cycles. Message us any questions before ordering.
