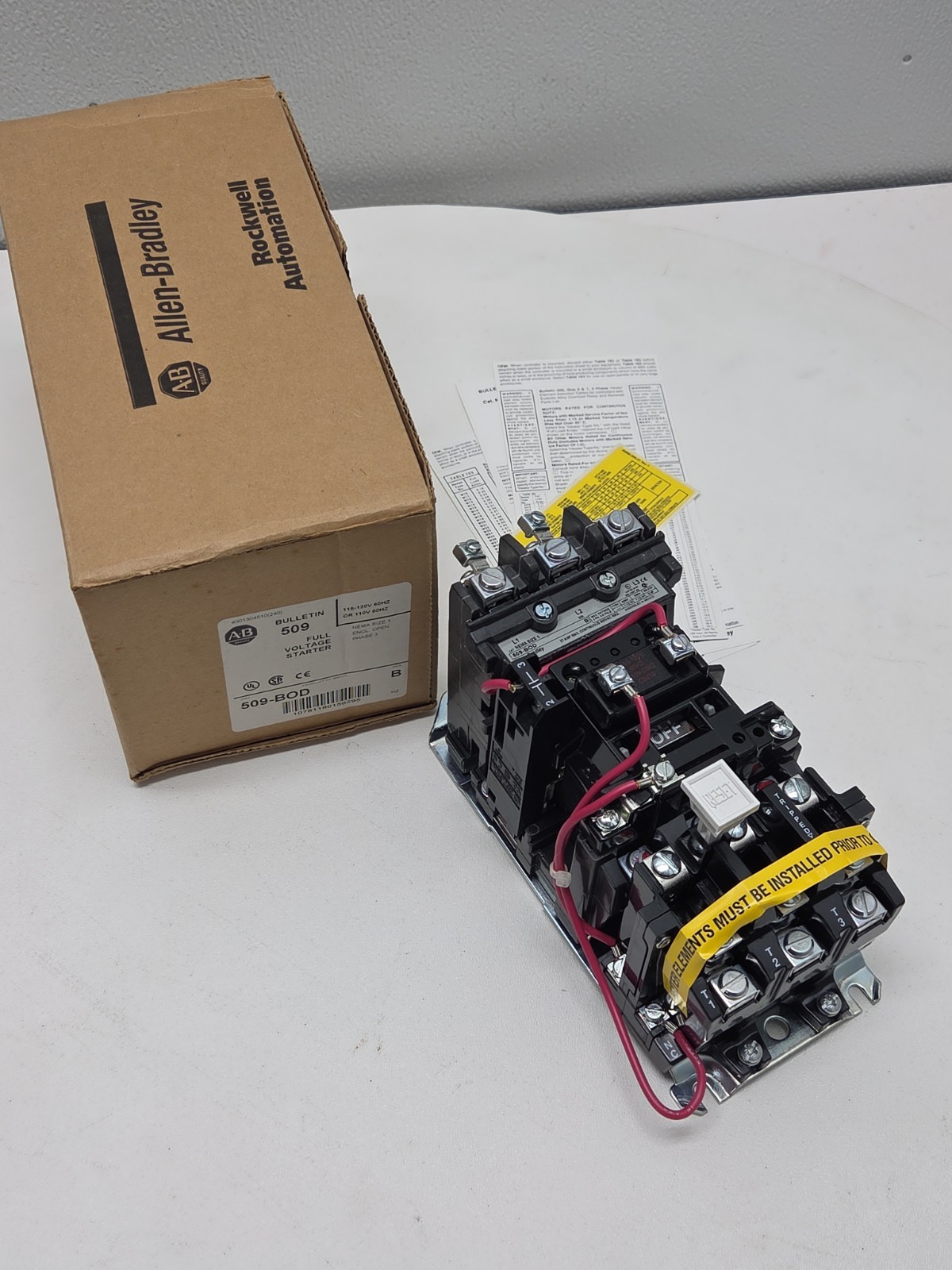

Allen Bradley 509-BOD NEMA Size 1 Full Voltage Motor Starter 120V Coil 3PH New For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Allen Bradley 509-BOD NEMA Size 1 Full Voltage Motor Starter 120V Coil 3PH New:
$299.95

Manufacturer: Allen-Bradley

Catalog Number: 509-BOD

Bulletin: 509

Series: B

Type: Full Voltage Motor Starter

NEMA Size: 1

Enclosure: Open

Phase: 3 Phase

Coil: 115-120V 60Hz / 110V 50Hz

Maximum Continuous Current: 27A

Maximum Voltage: 600VAC

Maximum HP: 7.5 HP @ 200V 3-Phase

Maximum HP: 7.5 HP @ 230V 3-Phase

Maximum HP: 10 HP @ 460-575V 3-Phase

Manual reset overload relay

Factory auxiliary contact/wiring as pictured

If you have any questions before purchasing, feel free to reach out.

If there are any issues with your order upon delivery, please contact me right away-I will work quickly to make it right.

Thank you for your business!

---

---

---
