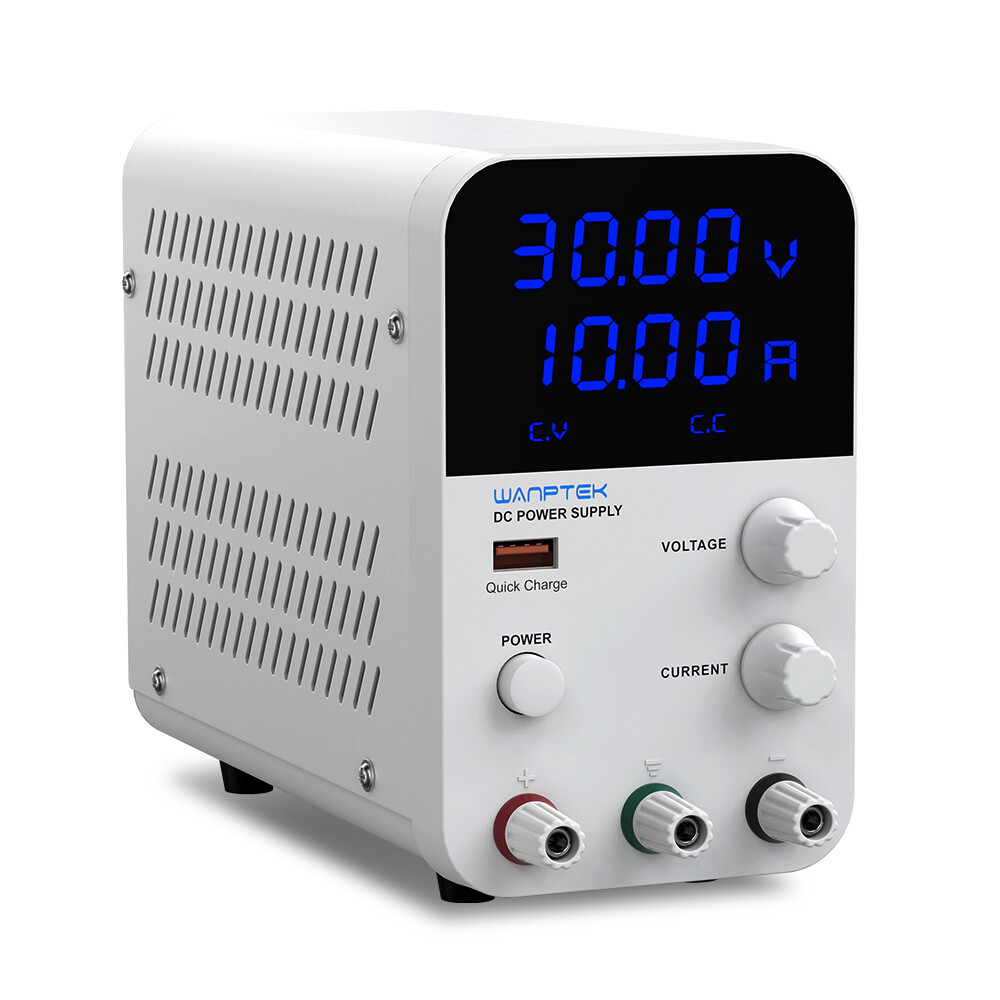

Adjustable DC 0-30V/60/120V 0-3/5/10A Lab Power Supply Variable Bench Switching:
$43.99
Product Description
GPS series is a double-window blue four-digit digital display switching DC regulated power supply, which can display voltage and current at the same time. The products are widely used in cell phone repair, computer repair, battery charging, school teaching and production line use. The output voltage and output current can be continuously adjusted between 0 and nominal value by using coded potentiometers, and the set values can be displayed in advance, which is convenient to use and adjust. This machine has USB fast charging function and supports many kinds of fast charging protocols. With perfect protection circuit, the stability and ripple factor of the power supply are very good. Its small size, light weight, beautiful design, easy to operate, full load can work for a long time, loved by users.
Product Features
The coding potentiometer sets the voltage and current, and the set values can be displayed in advance.
Overload protection, over temperature protection.
The USB fast charging function supports multiple fast charging protocols.
Small size, light weight, and sufficient power.
Automatic switching of constant voltage and current.
Voltage, current, two sets of LED four digit display with high accuracy.
Temperature controlled fan for heat dissipation, low noise, and long lifespan.
Application areas
1. Production line testing.
2. Repair mobile phones, computers, and appliances.
3. Product aging and electroplating.
4. Battery charging.
5. Laboratory, scientific research, and teaching.
6. All other occasions that require a DC stabilized power supply.
Product List
Model
GPS305D
GPS3010D
GPS605D
GPS1203D
GPS1602D
Output Power
150W
300W
300W
360W
320W
Output voltage
0~30V
0~30V
0~60V
0~120V
0~160V
Output current
0~5A
0~10A
0~5A
0~3A
0~2A
Auxiliary functions
USB fast charging interface
Protection mode
Overload protection, over temperature protection.
working environment
Input style="text-align: left; vertical-align: middle; margin: 0pt 0pt 0.0001pt; font-family: Calibri; font-size: 10.5pt;">Working temperature：0℃～40℃;relative humidity:<80%RH
Storage temperature：-10℃～70℃;relative humidity:<70%RH
Constant voltage CV
Voltage stability：0.5%±3mV
Load stability：0.5%±3mV
Ripple voltage：≤0.5%Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability：0.5%±3mA
Load stability：0.5%±3mA
Ripple current：≤0.5%Vp-p
Recovery time：≤500μS
Temperature coefficient：≤100ppm/℃
0 to rated current continuously adjustable
display
Two sets of 0.56-inch blue light four digit digital tubes for display
Display accuracy：0.5%±digits
Display resolution：voltage 0.01V，current 0.001A
Size and weight
Product size：190(L)x90(W)x145(H)mm
Packing size：265(L)x135(W)x195(H)mm
Net weight：1.15Kg
Gross weight：1.5Kg
8sets/piece, box size:550*275*405mm,box weight:12.5kg
Random attachment
power cordx1 (EU,US,UK, ...)
Instructionsx1,
Test linex1,
Machine color
Black, white
