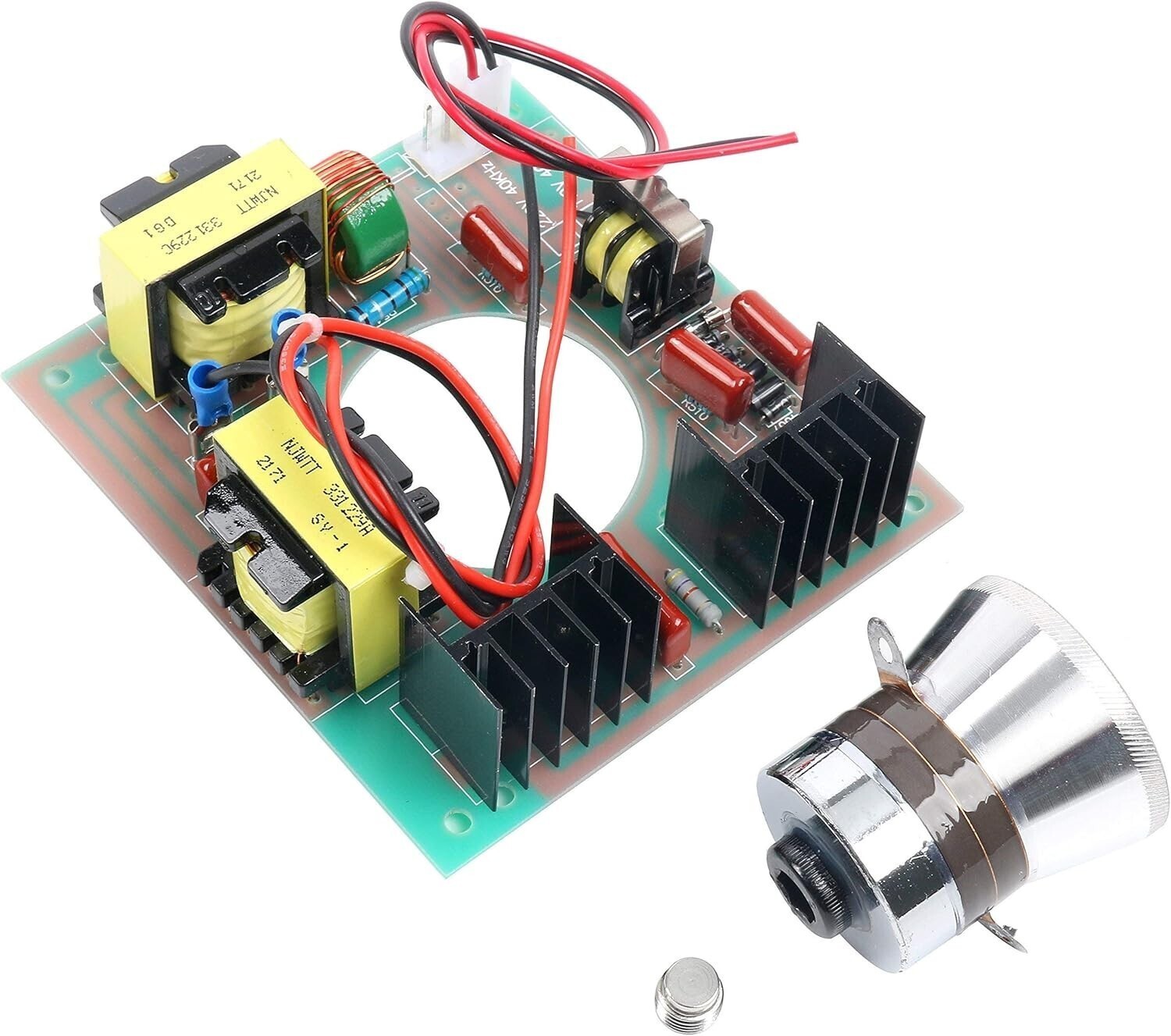

60W 40KHz Ultrasonic Cleaning Transducer Cleaner + Power Driver Board 110V AC:
$49.99

Specifications:
Frequency: 40±1 KHz
Radiating surface: 45 mm
Power: 60 W
Dimensions: Dia 45mm x H 50mm
Power Driver Board: 110VAC

Instructions for the use of circuit board and shock head connection:
1. in principle, the circuit board can not be no-load in the case of electricity.
2. when the installation completed,in the case of cleaning without any cleaning liquid, the best time to pass the electricity is not more than 1 minute.
3.1 shock head is connected in parallel to the wiring board of the circuit board, and a circuit board and a shock head are used together.
4.OUT+ transducer (oscillator) positive pole, OUT- transducer (oscillator) negative pole, OUT positive and negative pole are connected with the positive and negative poles of transducer separately.
(Note: the voltage of the output terminal on the circuit board is about 400V. Pay attention to safety. The leakage protection switch on the input power supply to ensure safety.)

Note:
It does not come with drawings and wiring diagrams.

Package include:
1 x 60W 40KHz Ultrasonic Cleaning Transducer Cleaner
1 x Power Driver Board 110VAC
