600' Aluminum URD Dyke 2-2-2-4 Cable Direct Burial Quadruplex Secondary Wire For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

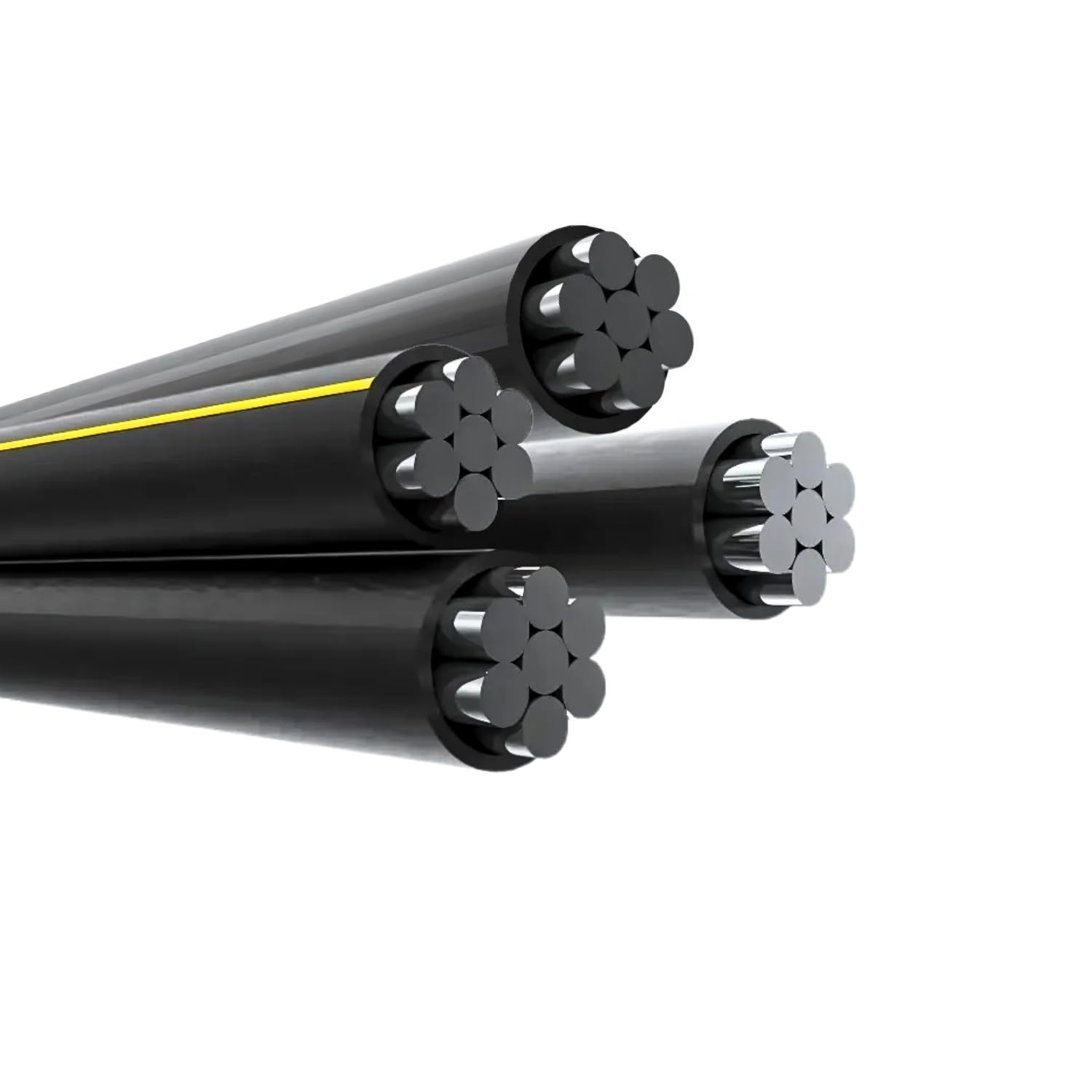

600' Aluminum URD Dyke 2-2-2-4 Cable Direct Burial Quadruplex Secondary Wire:
$2754.54

600' Aluminum URD Dyke 2-2-2-4 Cable Direct Burial Quadruplex Secondary WireDescription Color black Strands 7 Gauge 2.0 Voltage 600 Volts Number Of Wires 4 Material Type Aluminum Manufacturer Nassau Unit Count 600 Count Material Aluminum Number of Cable Strands 7

Product description Aluminum URD Dyke 2-2-2-4 Cable Applications:

The aluminum 600V URD is designed to serve in the secondary distribution circuits for power. In these secondary circuits, the electrical cable is installed in ducts or direct burial applications. Due to its versatility, conductor strength, and insulation integrity, it works well for these outdoor applications. It is also used in wet and dry places since the cable has a maximum operating temperature of 90°C. The electrical cable is also designed to provide an option of pre-pulling into ducts.

Key Feature CONDUCTOR

Aluminum 600V URD cable has a concentric strand or compressed 1350-H19 series aluminum conductor.

INSULATION

Aluminum 600V URD cable has a black cross linked polyethylene (XLP) insulation.

ASSEMBLY

Conductors are cabled together, with surface printing for identification.

CONDUCTOR IDENTIFICATION

The neutral conductor has a yellow stripe.

Allowable Ampacity

Ampacity (Direct Burial): 155 Amps

Ampacity (In-Duct): 115 Amps

Product Specifications Size AWG 2 Stranding 7 Insulation Thickness (mils) 60 Neutral Size AWG 4 Single Phase Conductor Inches 0.403 O.D. Inches 0.973 Weight lbs./1000ft 367 lbs Cable Type URD Conductor Material Aluminum Standards

ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction
ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
Federal Specification A-A-59544A ,RUS Accepted

Customer Reviews 4.7 out of 5 stars 463 4.7 out of 5 stars 122 4.2 out of 5 stars 60 4.9 out of 5 stars 23 4.8 out of 5 stars 43 — Phase Conductor AWG 2 4 1/0 2/0 4/0 4/0 Phase Conductor Strand 7/w 7/w 19/w 19/w 19/w 19/w Phase Conductor Insulation Thickness (mils) 60 60 80 80 80 80 Neutral AWG 4 4 2 1 2/0 4/0 Neutral Strand 7/w 7/w 7/w 19/w 19/w 19/w Neutral Insulation Thickness (mils) 60 60 60 80 80 80 Outside Diameter (inches) 0.938 0.893 1.188 1.316 1.560 1.623 Weight (lbs. /1000ft.) 346 258 541 664 979 1066 Ampacity (Amps) Neutal - Direct Burial 153 119 198 225 290 290 Ampacity (Amps) Neutal - In Duct 115 85 150 170 225 225

Size AWG: 2
Stranding: 7
Insulation Thickness (mils): 60
Neutral Size AWG: 4
Single Phase Conductor Inches: 0.403
O.D. Inches: 0.973
Weight lbs./1000ft: 367 lbs
Ampacity: Direct burial: 155 Amps
Ampacity: In duct: 115 Amps
