5Pcs DC 100V 10A LED Digital Voltmeter Ammeter Dual Volt Amp Meter Voltage Gauge For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

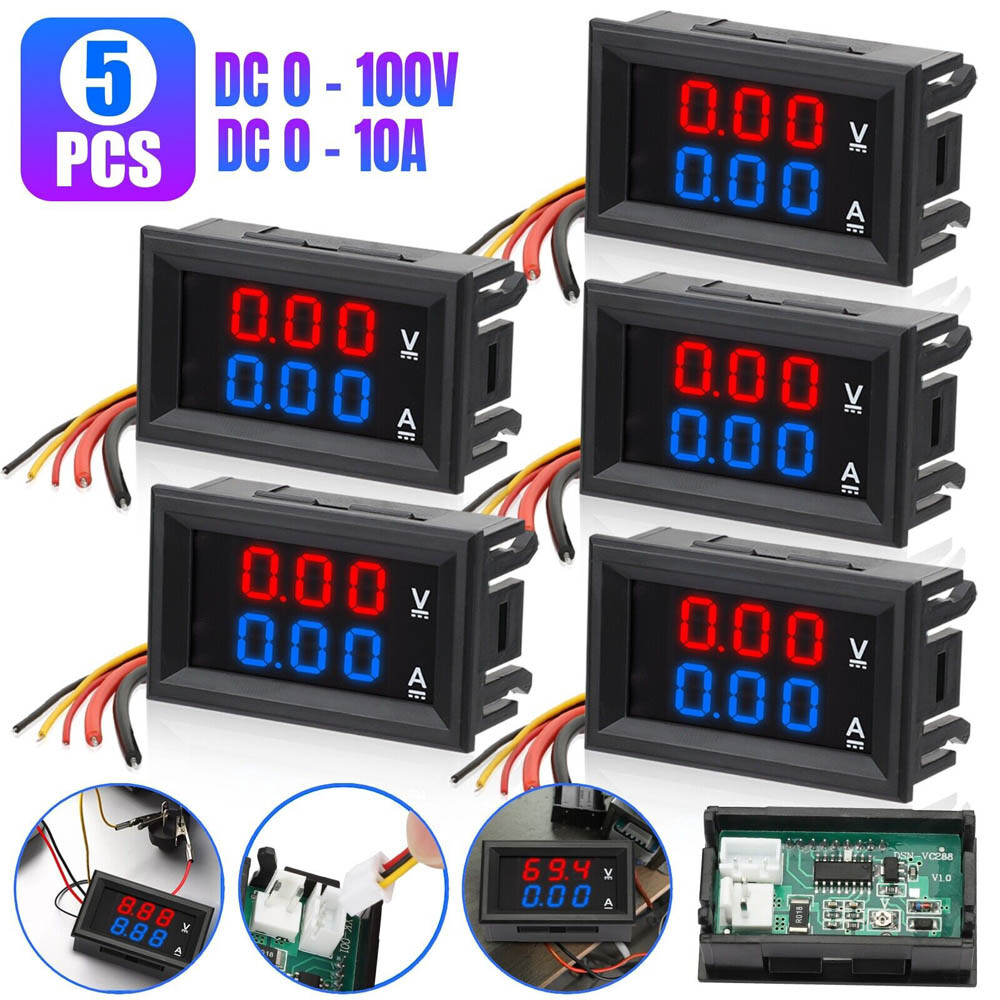

5Pcs DC 100V 10A LED Digital Voltmeter Ammeter Dual Volt Amp Meter Voltage Gauge:
$12.69

Feature：

Characteristic: Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail). Require external power supply; with reversed connection protection. Simultaneously monitor DC voltage up to 100V and current up to 10A
Auto ranging: 0.01V 0.01A, voltage tolerance: ±1%, current tolerance: ±0.1% Working current: <20mA, Refresh rate: 300ms, Operating Temp: -10℃ - 65℃.DC only, not for use with AC 4-30V supply voltage.
With mini Size: 43 x 30 x 22 mm, Hole size: 46x27mm, wide measuring range(DC 0-100v; 0-10A) and high accuracy percent ( ±0.1%).
Applications: Suitable for monitoring voltage of storage battery, mastering voltage state of storage battery, and measuring voltage and current of other devices.

Note：

If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-30V or the meter may be damaged.

Specification：
TypeDC Voltmeter AmmeterQuantity5pcsVoltage Measuring rangeDC 0 - 100VCurrent Measuring rangeDC 0 - 10A.Auto ranging0.01V 0.01AVoltage tolerance±1%Current tolerance±0.1%Refresh rate300msOperating Temp-10℃ - 65℃Size43 x 30 x 22 mmHole size46x27mmConnectorred for Voltage, Blue for current (the current is Measured in the negative rail)Applicationfor monitoring voltage of storage battery, mastering voltage state of storage battery, and measuring voltage and current of other devices
Package Included
