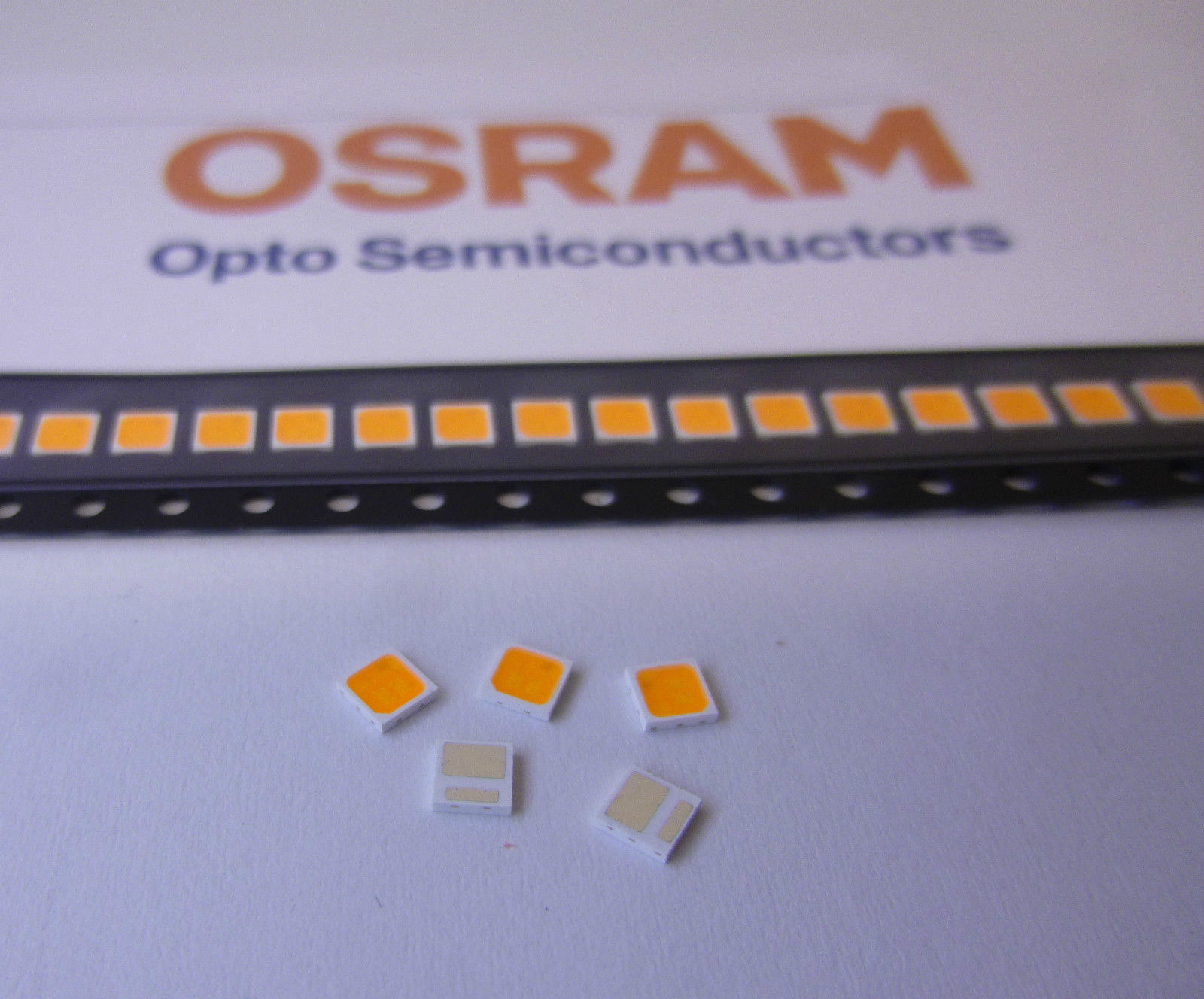

50 pieces OSRAM DURIS® S5 LED 2700K WARM WHITE CRI 82 ~1.0W 3030 GW PSLR31.EM For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

50 pieces OSRAM DURIS® S5 LED 2700K WARM WHITE CRI 82 ~1.0W 3030 GW PSLR31.EM:
$8.50

DURIS S5 OSRAM LED 2700K

-Shop

Pargos Profile

response profile

Contact

Article description 50 pieces DURIS® S5 OSRAM LED 2700K
HIGH QUALITY version of LED 3030 WARM WHITE CRI82 GW PSLR31.EM ~1.0W

OSRAM DURIS S5

2700KWarm White|GW PSLR31.EM

CRI: min. 80 ( typ. 82 )

white SMT package, colored diffused silicone resin

Forward voltage: 6.20 - 6.40 V

Luminous Flux: 104.2 lm - 112 lm

Forward current: 10...200 mA

Viewing angle at 50 % Iv: 120°

Luminous efficacy: typ. 121 lm @ 3000 K

Operating temperature range: - 40 ... 110°C

only 8,50 USD
The price per piece is ONLY0,170 USD Buy It Now Watch Article Ask a question For the Type GW PSLR31.EM in addition to the datasheet we offer a better selection by Group : Group Name on Label DURIS S5GW PSLR31.EMKU-38/B8/G8-E Brightness / Luminous Flux Chromaticity Coordinate Forward Voltage VF [V] KU=104.2 lm - 112 lm 38/B8/G8=2700K E=6.20 - 6.40 V Note: No packing unit / tape ever contains more than one group for each selection.

Description

Payments

Shipping

Generale Information

50 pieces DURIS® S5 OSRAM LED 2700K
HIGH QUALITY version of LED 3030
WARM WHITE CRI82 GW PSLR31.EM ~1.0W OSRAM DURIS® S5 is compact, mid-power LED addresses three different luminous flux and efficacy levels, using just one package and solder pad. DURIS® S5 is produced in a small epoxy-based package (3x3mm) with very good thermal properties, what enabled to increase power of this series.
The DURIS® S5 brings another valuable feature - high flexibility, because a pinout is the same as in several competition products SMT 3030 LED. GW PSLR31.EM - with Vf (typ.) = 6,2V and a max. current of 200mA (chip area is 1.00 mm²) ~ 1W With high efficacies, color quality and long lifetimes this LED is the ideal choice for all indoor general lighting applications. Applications:

Indoor General Lighting
Industrial lighting
Linear lights
Retrofits and fixtures
Professional downlights

LED is protected by ESD device which is connected in parallel to LED-Chip. ESD withstand voltage up to 5kV
We received these original OSRAM parts of an OEM-stock (Industrial/Germany) and for each type it exist a datasheet (see Internet) with specified parameters. Payments Shipping
