50 Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010 50X:
$54.50

Enhance your electrical projects with our 50 Pcs KBPC5010 50A 1000V Metal Case Single Phase Bridge Rectifier. Designed for superior heat dissipation, this UL-listed diode bridge features a robust metal case and surge overload ratings of up to 400A. Enjoy reliability with a peak forward surge current of 400A and impressive voltage ratings: 1000V reverse and 700V RMS. Ideal for custom applications, it supports faston terminals and is easy to mount. Quick shipping from our Colorado office ensures you get your parts fast. Elevate your designs with our quality KBPC5010 rectifiersÃ¢ÃÂÃÂperfect for any electrical project!

Electronics for IoT, Prototyping & DIY

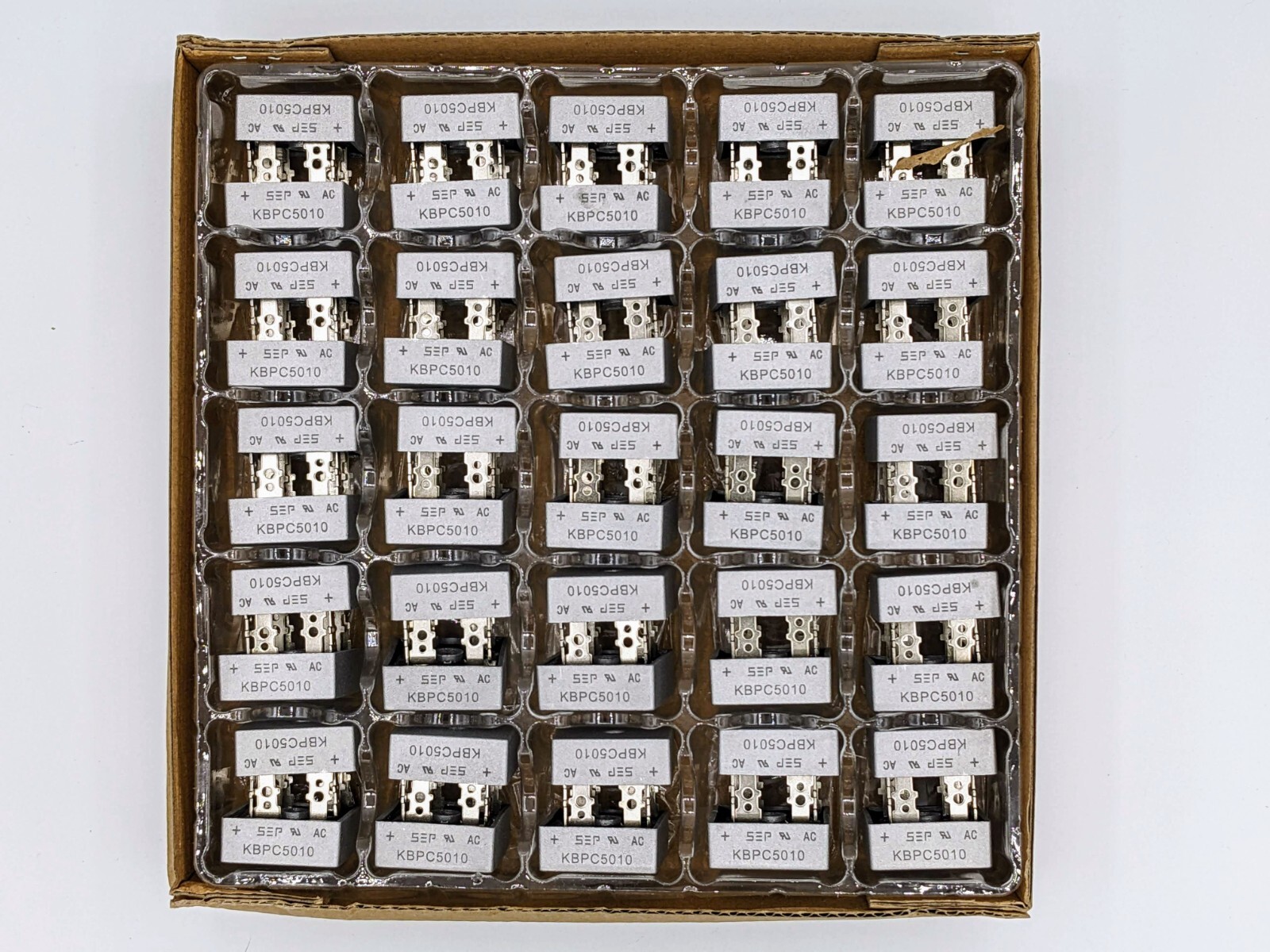

50 Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010 50X

50 Pieces KBPC5010 50A 1000V Metal Case Single Phase Silicon Bridge Rectifier

The KBPC5010 is a robust and reliable single-phase bridge rectifier designed for converting AC voltage into DC voltage. Featuring a high surge current capability and an electrically isolated metal case, it ensures efficient heat dissipation and long-lasting performance. Ideal for various power supply applications, the KBPC5010 offers exceptional value and quality.

KBPC5010 Key Features:

High Voltage and Current: 1000V maximum repetitive peak reverse voltage and 50A maximum average forward rectified output current.
UL Listed: UL listed under the Recognized Component Index, file number E142814.
Flammability Rating: The plastic material used carries Underwriters Laboratory flammability recognition 94V-0.
High Surge Current: Surge overload rating of 400A.
Electrically Isolated Metal Case: Provides maximum heat dissipation and allows for easy mounting to a chassis or heat sink.
Isolation Voltage: Case to terminal isolation voltage of 2500V.
Universal Terminals: Universal 4-way terminals, snap-on, wrap-around, solder, or P.C. Board mounting for flexible connection options.

Electrical Specifications:

Maximum repetitive peak reverse voltage (VRRM): 1000V
Maximum RMS bridge input voltage (VRMS): 700V
Maximum DC blocking voltage (VDC): 1000V
Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A
Typical thermal resistance per element (ReJA): 2.5 degrees C/W
Operating junction and storage temperature range: -55 to +150 C
Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V
Maximum DC reverse current at rated TA=25 C (IR): 10uA
DC blocking voltage per element TA=125 C (IR): 500uA

Mechanical Specifications:

Case: Metal case
Terminals: Plated .25\"(6.35mm) Faston
Mounting Position: Bolt down with silicone thermal compound between bridge and mountingsurface for maximum heat transfer efficiency
Universal 4-way terminals, snap-on, wrap-around,solder or P.C. Board mounting
Mounting Torque: 20 in-lb max.
Weight: 1.12 Ounces / 32 grams (approx)

Package includes:50x (50 pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge RectifierLink to online installation and usage instructions
Get it faster! Stocks and ships from our US Colorado office for quick delivery!
Ships USPS Priority Mail or UPS Shipping for 2-5 Day Delivery - Not Economy Shipping
