40 Tons scotchman 4014-TM, Used For Sale

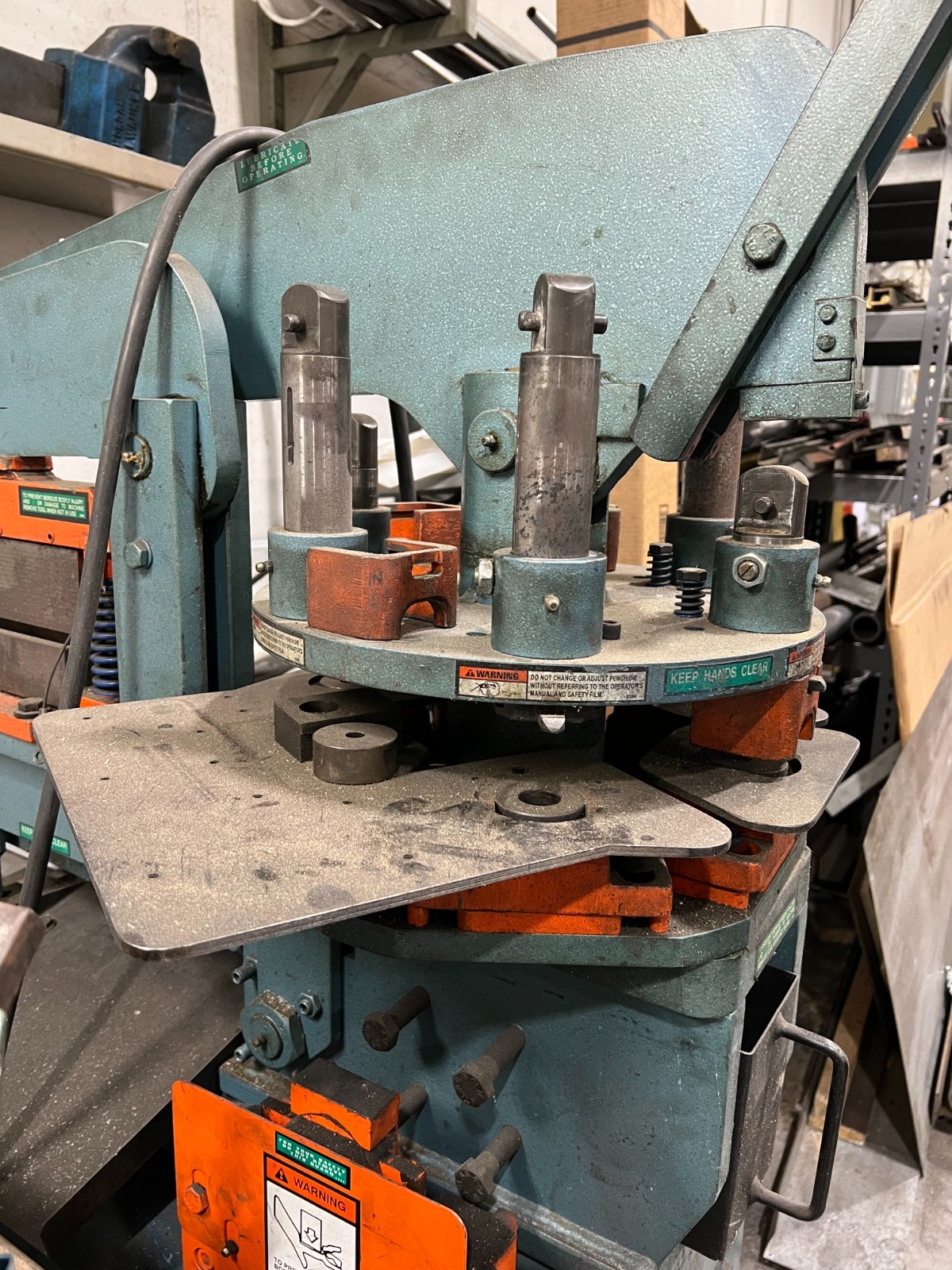

40 Tons scotchman 4014-TM, Used
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

40 Tons scotchman 4014-TM, Used:
$7500.00

  • All original parts/tooling included.

  • Punching Capacity: 40 Tons
  • 6 Station Revolving Turret
  • 4\" Throat Depth
  • Angle Shear Capacity: 3\" × 3\" × 5/16\" and 2\" × 2\" × 1/4\" at 45 Degrees
  • Bar Shear Capacity: 14\". Blades Complete with 4 Cutting Edges
  • Tool Table Work Area for Mounting Optional Tooling
  • Six 2\" Die Holders, Six Jam Nuts and Six Strippers
  • Jam Nut Wrench
  • Adjustable Stroke Controls
  • Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
  • 230/460 Volt 3 Phase Electrics
  • All Guards Necessary to Comply with ANSI B11.5 Standards

  • Weight 1,275 lbs.
  • Dimensions W-26\" L-50\" H-59\"

  • CAPACITIES & SPECIFICATIONS RATED ON 65,000 PSI TENSILE A 36 MILD STEELThroat Depth / Punching Capacity

    • 4\" → 40 Tons

    • 100MM → 36 M.T.

    • 1\" in 1/2\" → 75 in dia.

    • 1-1/4\" Max. Dia. → 57 Max. Dia.

    Special Tooling – Flat Bar Shear

    • 1/4\" Length → 355

    • 5/8\" × 5\" → 125 × 16

    • 1/2\" × 6\" → 150 × 13

    • 3/8\" × 8\" → 200 × 10

    • 1/4\" × 10\" → 250 × 8

    • 3/16\" × 14\" → 355 × 5

    • 1/2\" × 8\" → 200 × 13

    • 1/4\" × 14\" → 355 × 6

    Saber Blade

    • (Header only shown, no additional specs listed)

    Angle Shear 90°

    • 3\" × 3\" × 5/16\"

    • 75 × 75 × 8

    Angle Shear 45°

    • 2\" × 2\" × 1/4\"

    • 50 × 50 × 6

    Strokes Per Minute

    • 40

    Max. Capacity

    • Channel Shear → 2\" Maximum

    • Picket Tool → 1/2\", 3/4\" & 1\"

    • Rod/Angle Shear Combo → 2\" × 2\" × Maximum

    • 20 Maximum

    • 20 Maximum

    Rectangle Notcher

    • 2\" × 1-3/4\" × 1/4\"

    • 50 × 45 × 6

    Pipe Notching

    • 3/4\", 1\"

    Schedule 40 I.D.

    • 1-1/4\", 1-1/2\"

    Brake 8\'

    • 18 PSI

    • 93 3PH → 2.24 5HP L-50 Lbs.

    • 580 KG
