2PCS MICRO DNC 2D. DNC DEVICE FOR CNC MACHINES:
$299.00

Save money when you buy 2 pieces

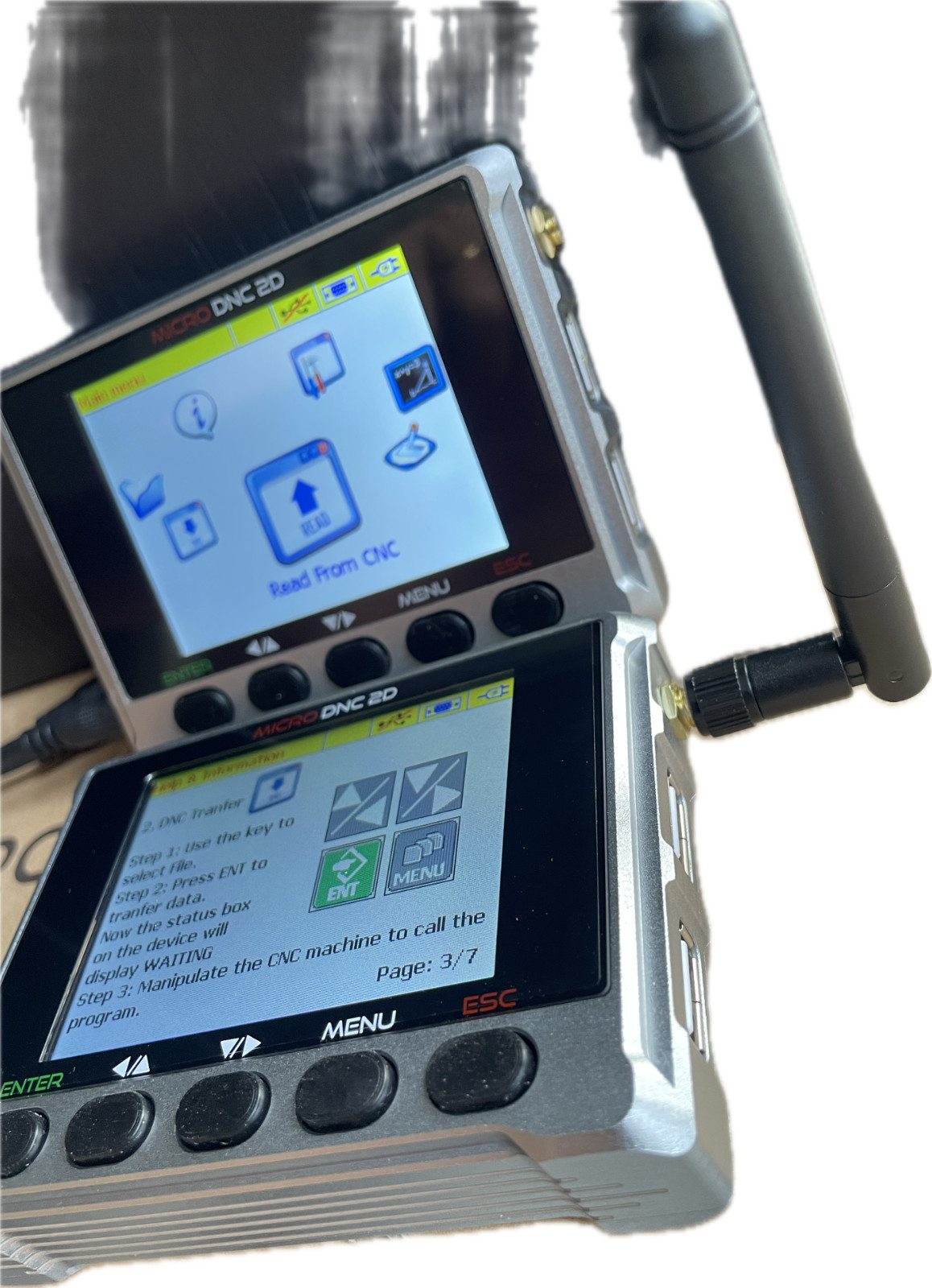

MICRO DNC 2C/MICRO DNC 2D (called DNC 2) is a device used totransmit or receive G-code programs with CNC machines - that is the basicfunction of the DNC 2 device.

The MICRO DNC 2D is a prototype of the MICRO DNC 2C with aredesigned aluminum case and flexible plastic keyboard. The software insidestill uses the firmware of MICRO DNC 2C. So basically MICRO DNC 2D and MICRODNC 2C are the same (call them DNC 2)

DNC 2 is designed to optimize and simplify programtransmission to CNC machines (compact, does not take up working space, veryhigh stability, good anti-interference), replacing computers or some otherdevices. Complex old equipment to transmit G-code program to cnc machine. Youcan transfer programs from the DNC 2 memory (4GB memory) or transfer programsfrom a USB 2.0 stick (up to 64GB memory). can transfer the program into the CNCmachine memory, or drip large programs to the CNC machine through the CNCmachine\'s DNC function.

You can receive data from the CNC machine to the DNC 2device (program storage, tool offset parameters, CNC machine parameters...)

DNC 2 can connect to a computer via wireless LAN (wifinetwork). There will be software installed on the computer

From the software on your computer, you can copy the programfrom your computer to DNC 2 or vice versa from DNC 2 to your computer.notification can be sent to the machine operator (notification on the DNC 2screen). Execute the program transmission command for DNC 2 from the softwareon the computer, you can monitor the status of the DNC 2 device (transmittingor stopping, displaying % of the program being transmitted...)

ATTENTION. Computersand DNC 2 connected to the same WIFI network can connect to each other. Ifconnecting to different wifi networks, it will not work

A very special function on DNC 2 is the ability to simulatetoolpaths, you can simulate programs in memory or USB 2.0 cards.

With the MICRO DNC 2D version, there will be 4 selectablelanguages (English, Italian, Japanese, Vietnamese)

DNC 2 has data formats (ASCII, EIA, ISO)

There are instructions for using the basic functions on theDNC 2 screen (HELP/INFOR page)

In addition, you can create or edit programs on the DNCdevice screen. You can use the virtual keys on the DNC 2 or you can use anexternal USB keyboard. (the device will recognize the keyboard and you willcompose or edit the program very simply)

DNC 2 device has two USB ports (you can only use 1 USB 2.0 portat a time)

The device has 1 RS232 port to connect to CNC machines

There is 1 power port to supply 12V DC power from outside

Baud rate from 1200-115200

data bits (7-8)

stop bits (1-2)

parity setting - (even-odd-none)

There is an automatic transmission mode when the programends (used for processing parts with many repetitions). “auto resend”

The device shell is made from aluminum, the front The backhas super strong magnets that can be used to attach the DNC device anywhere onthe CNC machine body

Package includes DNC 2, 2 meter long RS232 DP9-DP25 cable,12V AC-DC power adapter

Customer service throughout the process of customer use. We canassist in setting up DNC 2 and CNC working together

Productsare warranted for 1 year
