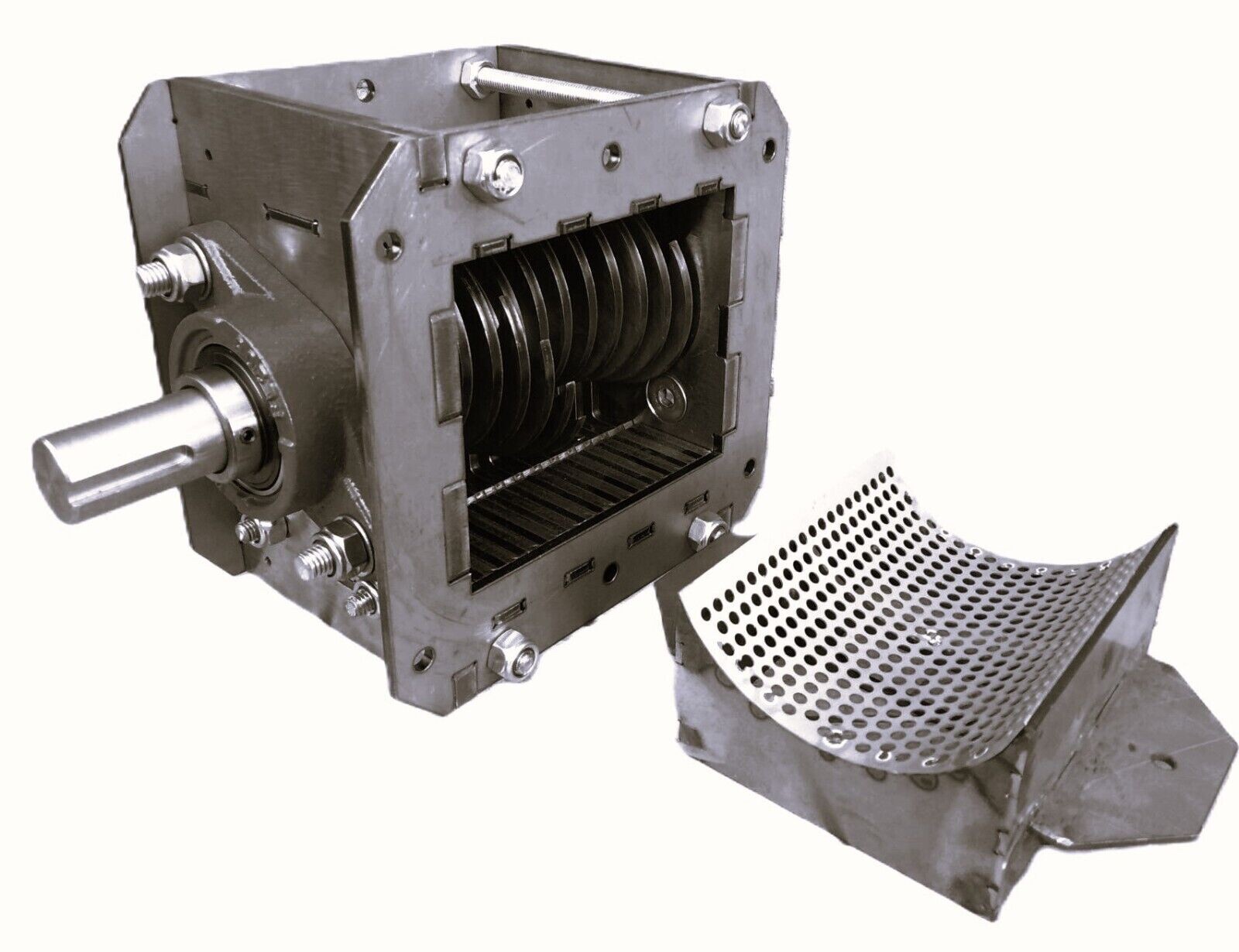

14 X 5MM BLADE BASIC SHREDDER - 3 ROTATION SHEAR BLADES - 6MM MESH:
$600.00

14 BLADE BASIC SHREDDER Shipped from USA workshop. EN8 steel lasercut full build shipped from USA to your location with cost in mind from a proven quality service.

Overview: Latest 14 Blade shredder with a difference, stronger Shredder, designed for efficiency with extra workshop needs and most important, simplicity of assembly/disassembly for maintenance needs. Ideal for material granulation with 14 x 5MM 3 cuts per shaft rotation.

You can shred a variety of materials with a shredding machine, here are some common materials for the Shredder to processed:

1. Many types of Plastics - Extruder granulation, water Bottles, storage Containers, plastic Pipes, household smaller parts, beach waste. Paper and Cardboard - Documents (for confidentiality, Cardboard boxes, Office waste

Hard drive/Circuit board shredding reduction- A secondary product from destruction is the gold extraction process from harddrives plus CPU, Pin Boards and other circuit board stripped down components.

Key Features

Design: Precision laser-cut framework with 3 rotating shear blades.

Blades: 14 rotating blades, each 5mm thick, designed for 3 cuts per shaft rotation.

Material: Constructed from durable EN8 Steel.

Dimensions: 300mm width x 210mm depth x 145mm height.

Cutting Area: 139mm x 149mm.

Shaft: 32mm EN8 Steel hex shaft, turned for 30mm coupling with 8mm keyways.

Speed: Operates at 50-70 RPM with high torque.

Strength: Enhanced with 10mm and 5mm thick steel plates.

Sieve: 6mm hole pre-welded EN8 mesh on a 3mm sieve frame.

Assembly

The shredder features a simplistic modular design with clamping/compression and bolting, making it easy to assemble or disassemble for teeth cutting combinations.

M14 socket and wrench

M10 socket and wrench

Pair of grips or mole grips

Adjustable spanner for M10 nuts

3mm hexagonal key for bearing set screws

Assembly: The shredder features a simplistic modular design with clamping/compression and bolting, making it easy to assemble or disassemble for teeth cutting combinations.

Motor: Not included. Recommended single-phase 3kW RPM 1800 motor with 30:1 worm gear/gearbox for shaft rotation and excellent torque (350+Nm).

A 2KW motor RPM 1400 provides an excellent 310Nm on 30.1 ratio and 58RPM. To ensure proper motor-torque combination to avoid underpowering or overpowering issues. Torque calculator available on request.

Coupling: LoveJoy L100 or L110 couplings with spider shock absorbers are highly recommended for connecting the gearbox to the shredder shaft (couplings not included).

Assembly Tools Required:

M14 socket and wrench

M10 socket and wrench

Pair of grips or mole grips

Adjustable spanner for M10 nuts

3mm hexagonal key for bearing set screws

Safety and Compliance Standards

Ensuring operator safety is crucial. You should understand the safe loading and unloading procedures, Adhering to shredder use specific human interaction safety guidelines is essential for the proper operation of shredding machines.

Shipping and Ordering Information: Shipping is set for USA Domestic. International buyers, Please message Location cost to ship to your country.

Shipping: Please confirm your location for shipping options. Additional customs duties may apply for international orders (DAP). Guaranteed quality service at the lowest cost, with shipping protection, email updates, and reliable delivery.

Thankyou

If you seek a laser cut parts kit only. Come and chat with us.
