12V to 6V 2.5A DC-DC Step-Down Waterproof Converter Power Module F23J6V2.5A4S:
$9.89
Optimize your power needs with the 12V to 6V 2.5A DC-DC Waterproof Converter (F23J6V2.5A4S). This compact, epoxy-sealed converter transforms 8-24V DC input into stable 6V output, perfect for classic car gauges and 6V accessories.
Features include over-voltage protection and 96% efficiency. Ideal for marine and automotive use. Easy wiring--just splice leads to your circuit.
Enjoy fast, free US shipping and hassle-free returns from Envistia Mall, your reliable electronics source!
Electronics for IoT, Prototyping & DIY

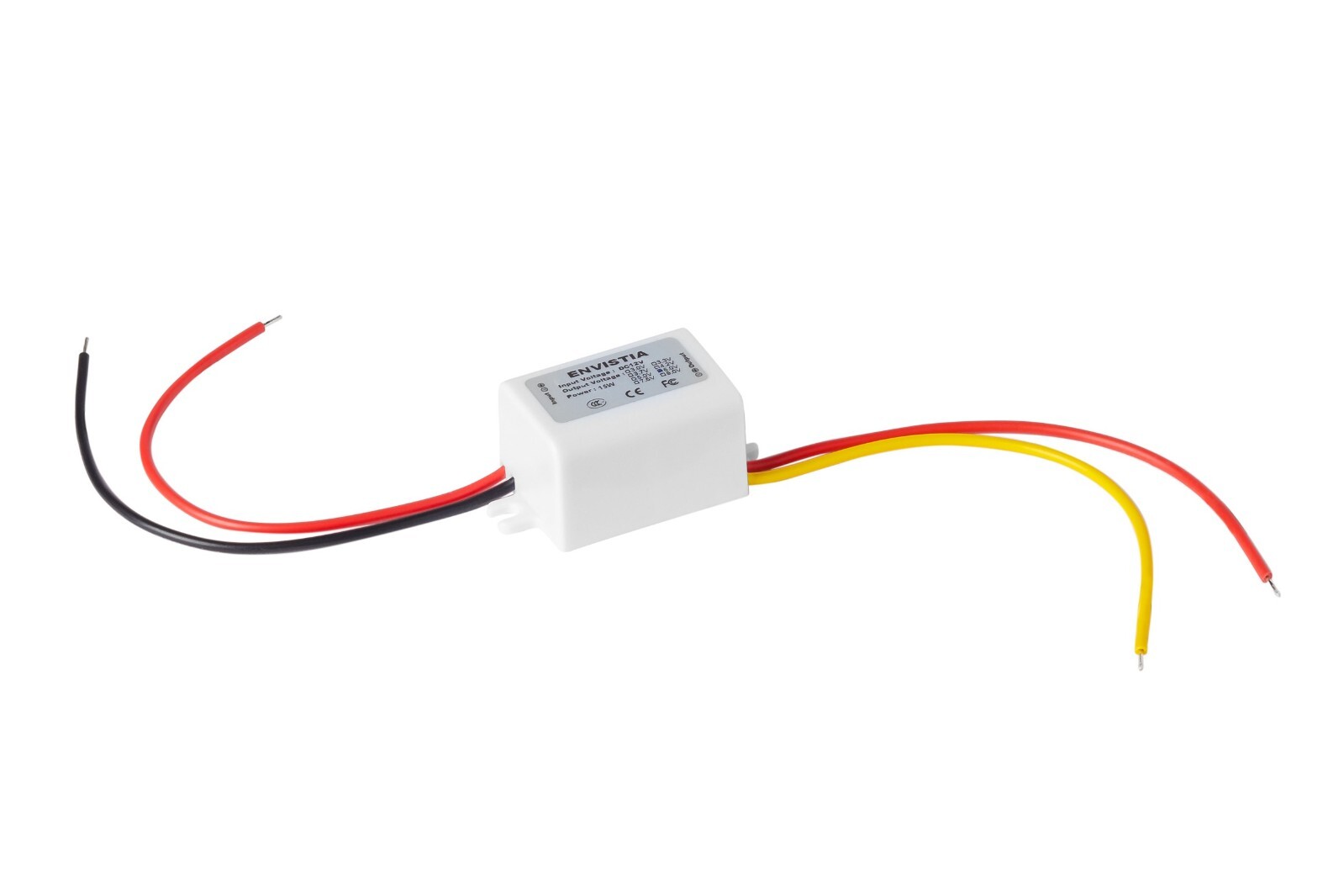

12V (8-24V) To 6V 2.5A DC-DC Waterproof Step-Down Converter Power Supply Module F23J6V2.5A4S
This miniature waterproof DC-DC step-down converter takes an 8–24V DC input (nominally 12V) and delivers a clean, regulated 6V output at up to 2.5A (15W). It's a straightforward, epoxy-sealed way to power 6V electronics -- including classic automobile gauges -- directly from a 12V battery or vehicle system.
⚠️ Before You Buy: Your 12V input supply must be able to provide at least 15W of power (roughly 1.25A at 12V) to deliver the full rated 6V/2.5A output. If the input supply can't keep up, the output voltage will sag below 6V. See our free User Guide on our support website for full wiring diagrams, mechanical drawings, 3D STEP files, and power-budget calculations.
⚡ Key Features- Regulated 6V Output -- Clean, stable power for 6V gauges, accessories, and legacy electronics
- Wide Input Range -- Accepts 8–24V DC, ideal for 12V nominal systems
- Waterproof Housing -- Epoxy-sealed for outdoor, automotive, and marine use
- High Efficiency -- Greater than 96% efficient, minimal heat generation
- Built-In Protection -- Overload, over-current, over-voltage, and low-voltage protection with auto-recovery
Two pairs of wires -- no pins or connectors needed. Simply splice, solder, or crimp into your circuit:
- Red (input side) -- Input +V, connect to your 12V positive supply
- Black (input side) -- Input Ground, connect to your 12V negative/ground
- Red (output side) -- Output +V, connect to your load's positive terminal
- Yellow (output side) -- Output Ground, connect to your load's negative/ground terminal
- 1× 12V to 6V 2.5A Mini DC-DC Step-Down Converter (F23J6V2.5A4S)
- Classic car gauge conversions -- Run original 6V dashboard gauges when a vehicle has been converted from a 6V to a 12V electrical system
- 6V accessory and lighting power -- Power vintage 6V accessories, radios, or lighting from a modern 12V source
- Sensor and remote monitoring power -- Power 6V sensors or instrumentation from a 12V battery or solar setup
- Retrofit and restoration projects -- Keep original 6V equipment functional without rewiring the whole electrical system
- Double-check polarity before powering up -- reversing input or output wires can damage the converter or your device.
- Your 12V input supply must be able to provide at least 15W (the converter cannot generate extra power beyond what the input source supplies).
- This is a constant-voltage (CV) converter, not a constant-current (CC) converter -- it regulates to 6V and supplies whatever current your load draws, up to 2.5A maximum.
Envistia Mall is a US-based electronics retailer specializing in development boards, sensors, modules, and components for makers, engineers, and educators. We ship from the United States with fast handling times. Product documentation and technical support are available at our dedicated support site.
📦 Fast Free US Shipping | 🔄 Hassle-Free Returns | 📧 Responsive Customer Support
Visit our store for the full line of F23JxVxA4S series 12V DC-DC step-down converters (3.3V, 5V, and 9V output models), plus other DC/DC converters, sensors, and connectors for your 12V projects.
