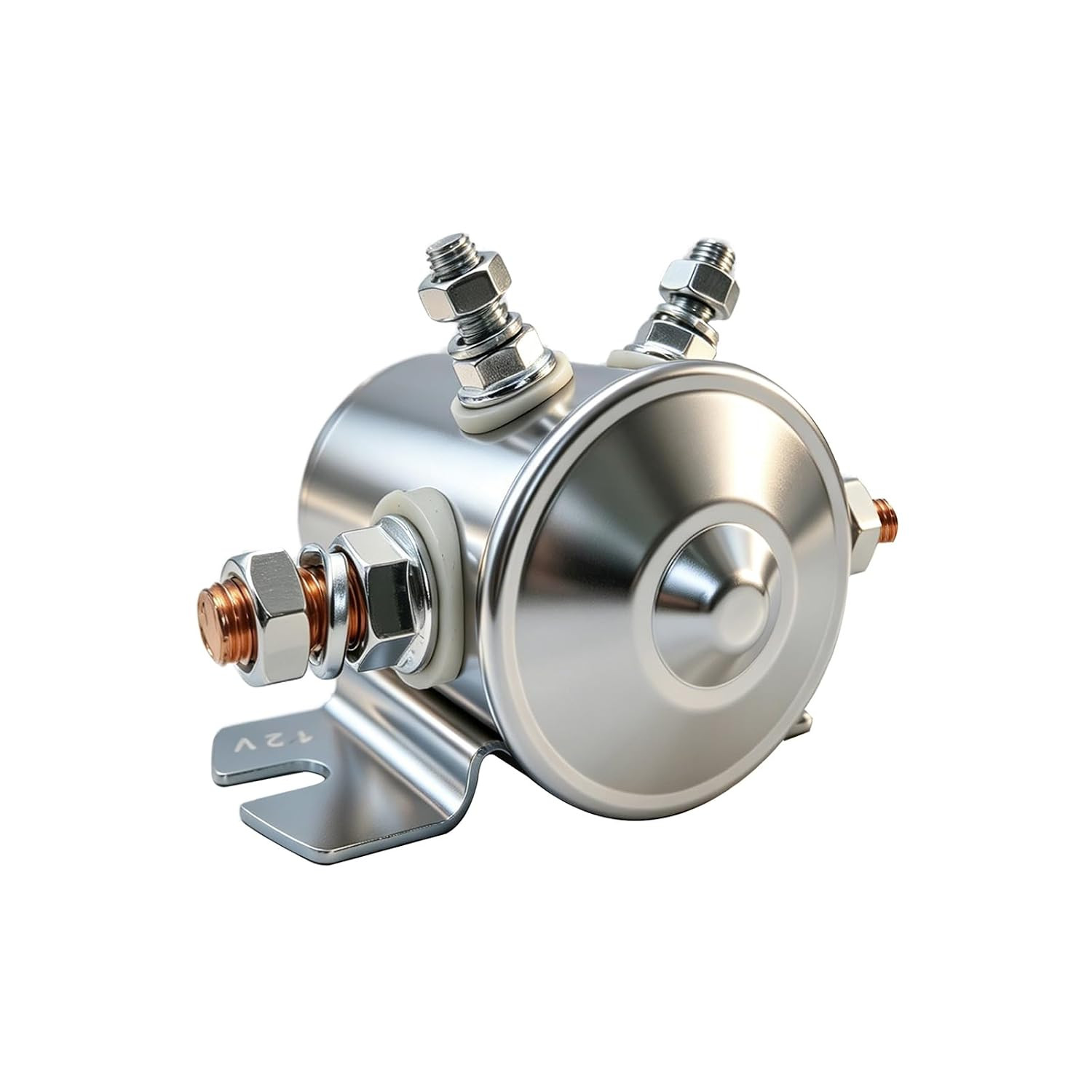

12V DC SPST Heavy Duty Solenoid Relay Nickel Plated Max Continuous 300A:
$35.95

Product description Oovmaan Max Transient 300A 4 Terminal Magnetic Switch Replacement Oovmaan Max Transient 300A 4 Terminal 12V DC SPST Heavy Duty Solenoid Relay

This heavy‑duty 4‑post DC solenoid is engineered for high‑current load control, rated for up to 150 Amp(MAX 300A). Designed for hydraulic pump, winch and motor power switching.

Durable metal housing with insulated terminals and sturdy mounting bracket ensures stable performance under tough working conditions.

Perfect replacement for liftgate, ATV UTV winch, electric forklift, RV dual‑battery system and utility truck hydraulic power units.

Operating Voltage 12VDC Min Operating Voltage 8.5VDC Coil DC Resistance 9.2Ω Max Continuous Current 100A Max Intermittent Peak Current 300A Max Continuous Duty Time ≤ 2 Minutes Circuitry Single Pole Single Throw (SPST) Terminal screw

10-32 UNF

Relay Housing

Galvanized steel housing

Binding post screw

5/16"-24 UNC

Coil

Copper wire for internal coil, resistant to high temperature up to 180°C

Replaces Parts Number：1114218, 1114240, 1114241, 1114534, 1114538, 1114547, 97240‑X, 70091714, 97412151016, 934121501016, 9341215010

For Trombetta Solenoid Parts Number：974121501109, 9741215011

Also Replaces： 70‑111224, 70‑120224, SAZ4201BJ, SAZ4201BJ2, 240‑20008, 75089822, 75089831, 262939, 263061

Premium Nickel-Plated Outer Shell & Copper Terminals Whole housing adopts anti-corrosion nickel plating treatment to resist moisture, dust and oxidation in harsh outdoor & engine bay environments; thick solid copper threaded terminals optimize electric conductivity, lower heat buildup during long-hour continuous operation and effectively reduce energy loss. Matching lock nuts & insulating gaskets come pre-equipped for seamless installation.
High-Current Load Bearing Structure Optimized internal electromagnetic coil structure supports large amp power switching (available in 200A/300A options), capable of instant power-on to drive winch, hydraulic pump, lift motor and other heavy-load equipment without frequent tripping or overheating issues.
Stable Insulation & Shockproof Design High-density insulating pads separate terminal posts from metal housing to avoid accidental short circuit; stamped steel fixed mounting bracket features pre-cut positioning notches for flexible bolt-on installation on flat or curved mounting surfaces, resisting vibration during vehicle bumpy travels.
Perfect fit for multiple DC-powered equipment: Golf carts, utility carts & small electric vehicles Off-road vehicle electric winch systems, truck/trailer hydraulic tailgate pumps Marine boat onboard pump, anchor winch & auxiliary power control Forklift, stacker, pallet truck starting & motor control circuits Agricultural machinery, RV camper auxiliary power switching systems
Installation Tips 1.Confirm your device working voltage (12V or 24V DC) and rated current before installation to match the relay specification 2.Secure the mounting bracket firmly on clean, grounded metal surface with standard fasteners 3.Tighten terminal nuts properly to avoid loose wiring causing abnormal heat generation 4.Keep wiring away from sharp metal edges and high-temperature engine parts to extend service life
